STGF3NC120HD

STGF3NC120HD Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220-3 Full Pack The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220FP Configuration Single Maximum current collector Ic is 6A . Maximum collector-emitter breakdown voltage of 1200V The Current-Collector-Pulsed-Icm is rated at 20A. The Vce-on-Max-Vge-Ic is rated at 2.8V @ 15V, 3A. 15ns/118ns Td-on-off at 25°C; Operating temperature: 800V, 3A, 10 Ohm, 15V Power-off control: 25 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 1200 V Saturation voltage between collector and emitter is 2.8 V 6 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 6 A Collector Current of Continuity;

STGF3NC120HD Image

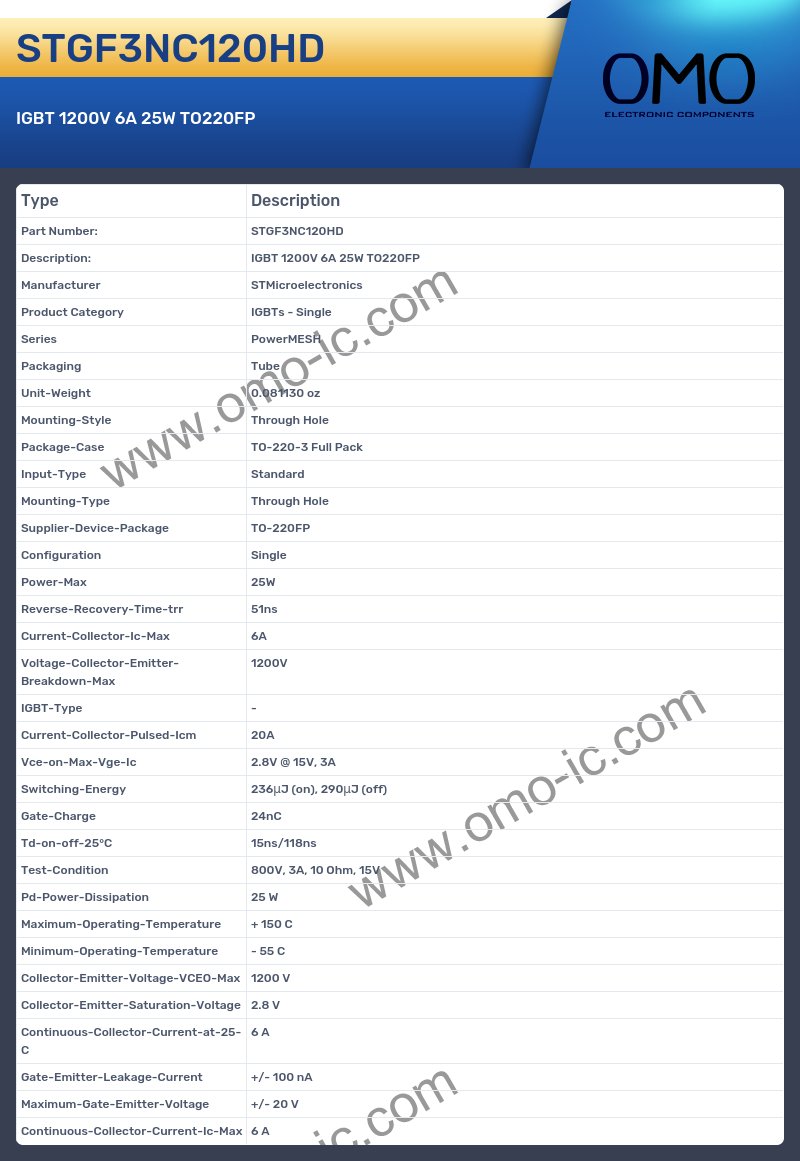

STGF3NC120HD Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Unit-Weight 0.081130 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3 Full Pack
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220FP
• Configuration Single
• Power-Max 25W
• Reverse-Recovery-Time-trr 51ns
• Current-Collector-Ic-Max 6A
• Voltage-Collector-Emitter-Breakdown-Max 1200V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 20A
• Vce-on-Max-Vge-Ic 2.8V @ 15V, 3A
• Switching-Energy 236μJ (on), 290μJ (off)
• Gate-Charge 24nC
• Td-on-off-25°C 15ns/118ns
• Test-Condition 800V, 3A, 10 Ohm, 15V
• Pd-Power-Dissipation 25 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 1200 V
• Collector-Emitter-Saturation-Voltage 2.8 V
• Continuous-Collector-Current-at-25-C 6 A
• Gate-Emitter-Leakage-Current +/- 100 nA
• Maximum-Gate-Emitter-Voltage +/- 20 V
• Continuous-Collector-Current-Ic-Max 6 A
