| Mfr. #: | STGP19NC60KD |
|---|---|
| 制造商: | STMicroelectronics |
| 描述: | IGBT 600V 35A 125W TO220 |
| 生命周期: | 制造商新产品。 |
| 数据表: | STGP19NC60KD 数据表 |
Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220 Configuration Single Maximum current collector Ic is 35A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 75A. The Vce-on-Max-Vge-Ic is rated at 2.75V @ 15V, 12A. 30ns/105ns Td-on-off at 25°C; Operating temperature: 480V, 12A, 10 Ohm, 15V Power-off control: 125 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 35 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

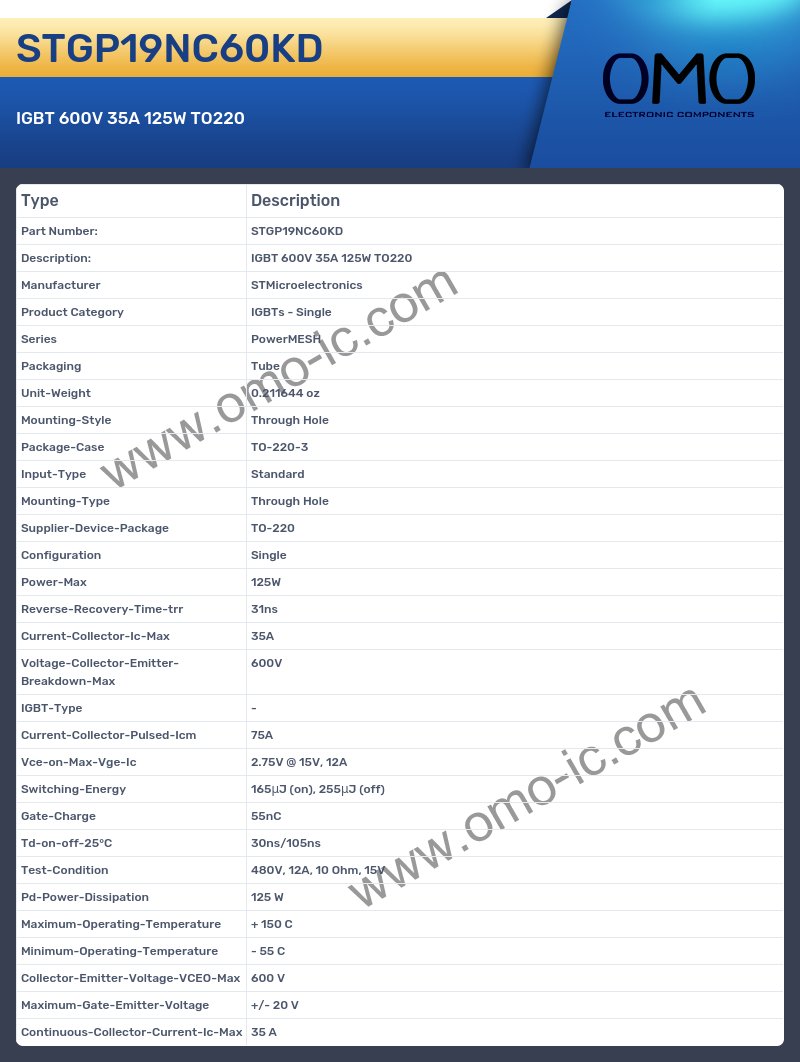

STGP19NC60KD Specifications
A: At what frequency does the Series?
Q: The product Series is PowerMESH.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.211644 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-220-3.
A: Is the cutoff frequency of the product Input-Type?
Q: Yes, the product's Input-Type is indeed Standard
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Through Hole.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed TO-220
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 35A.
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 600V
A: At what frequency does the Current-Collector-Pulsed-Icm?
Q: The product Current-Collector-Pulsed-Icm is 75A.
A: What is the Vce-on-Max-Vge-Ic of the product?
Q: The Vce-on-Max-Vge-Ic of the product is 2.75V @ 15V, 12A.
A: Is the cutoff frequency of the product Td-on-off-25°C?
Q: Yes, the product's Td-on-off-25°C is indeed 30ns/105ns
A: At what frequency does the Test-Condition?
Q: The product Test-Condition is 480V, 12A, 10 Ohm, 15V.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 125 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: Is the cutoff frequency of the product Collector-Emitter-Voltage-VCEO-Max?
Q: Yes, the product's Collector-Emitter-Voltage-VCEO-Max is indeed 600 V
A: Is the cutoff frequency of the product Maximum-Gate-Emitter-Voltage?
Q: Yes, the product's Maximum-Gate-Emitter-Voltage is indeed +/- 20 V
A: What is the Continuous-Collector-Current-Ic-Max of the product?
Q: The Continuous-Collector-Current-Ic-Max of the product is 35 A.
