| Mfr. #: | STGW30NC60KD |
|---|---|
| 制造商: | STMicroelectronics |
| 描述: | IGBT 600V 60A 200W TO247 |
| 生命周期: | 制造商新产品。 |
| 数据表: | STGW30NC60KD 数据表 |
Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 1.340411 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247-3 Configuration Single Maximum current collector Ic is 60A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 125A. The Vce-on-Max-Vge-Ic is rated at 2.7V @ 15V, 20A. 29ns/120ns Td-on-off at 25°C; Operating temperature: 480V, 20A, 10 Ohm, 15V Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 60 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

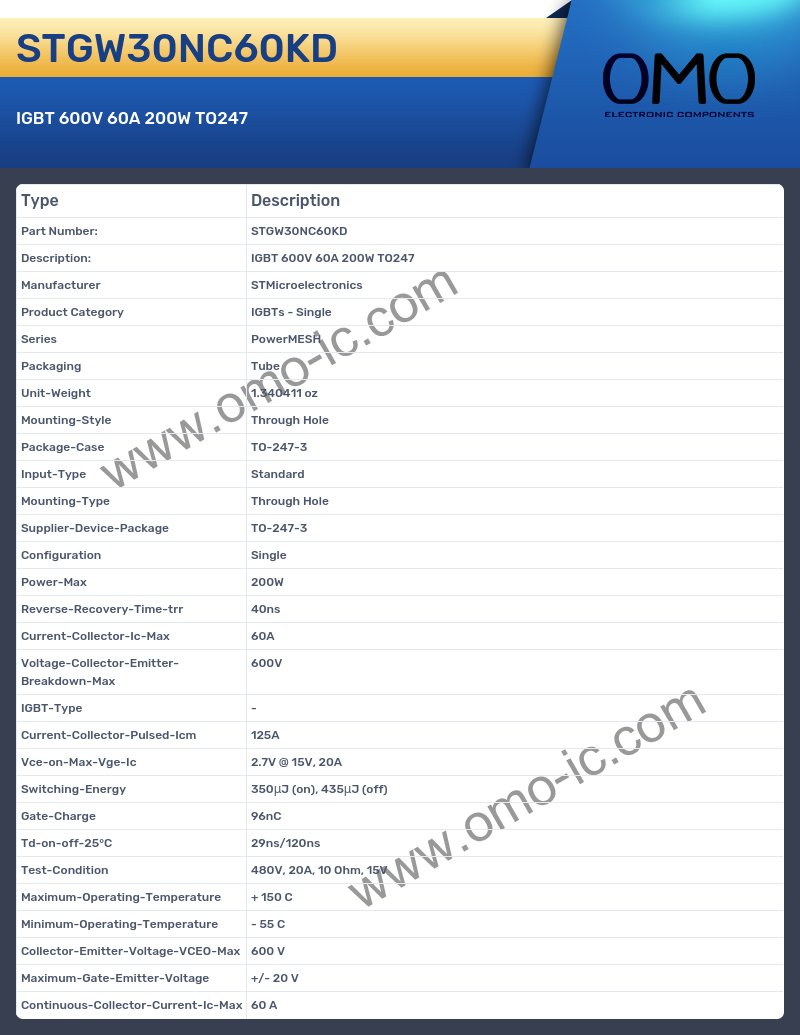

STGW30NC60KD Specifications
