| Mfr. #: | STGW60H65F |
|---|---|
| 制造商: | STMicroelectronics |
| 描述: | IGBT Transistors 60A 650V FST IGBT Very High Switching |
| 生命周期: | 制造商新产品。 |
| 数据表: | STGW60H65F 数据表 |
Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 0.229281 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247 Maximum current collector Ic is 120A . Maximum collector-emitter breakdown voltage of 650V The Current-Collector-Pulsed-Icm is rated at 240A. The Vce-on-Max-Vge-Ic is rated at 1.9V @ 15V, 60A. 65ns/180ns Td-on-off at 25°C; Operating temperature: 400V, 60A, 10 Ohm, 15V Power-off control: 360 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Saturation voltage between collector and emitter is 1.9 V 120 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

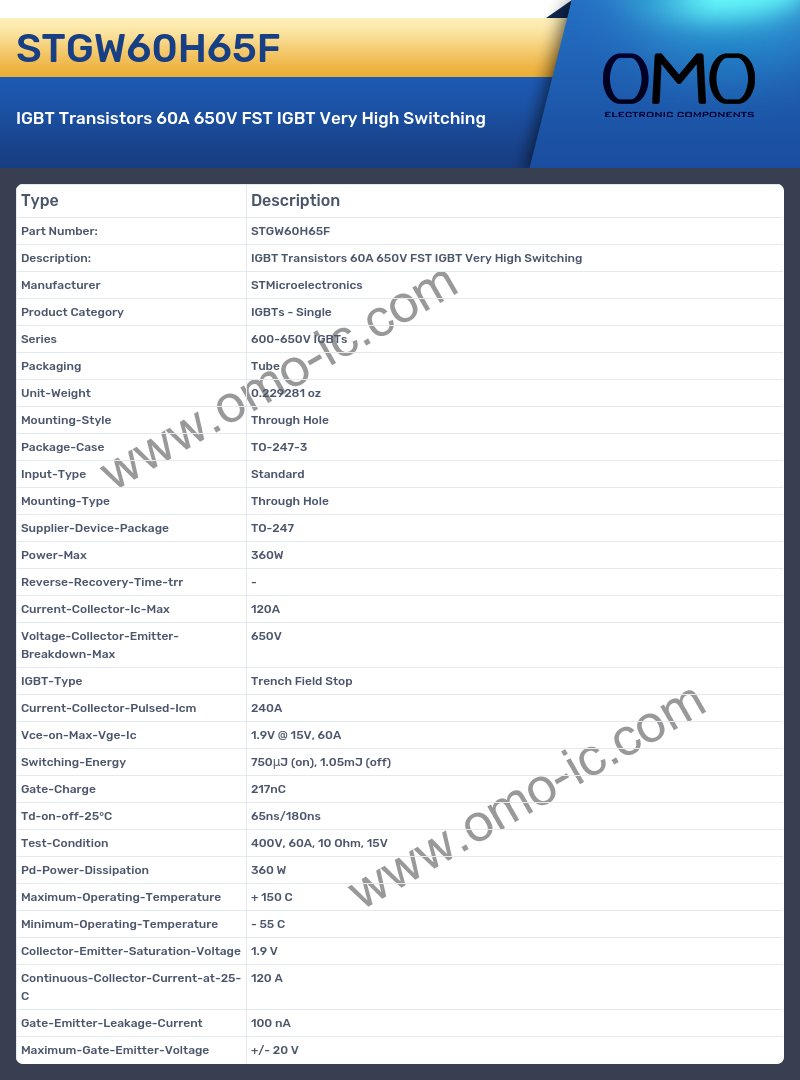

STGW60H65F Specifications
A: What is the Series of the product?
Q: The Series of the product is 600-650V IGBTs.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.229281 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Through Hole.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-247-3.
A: What is the Input-Type of the product?
Q: The Input-Type of the product is Standard.
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Through Hole.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed TO-247
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 120A.
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 650V
A: Is the cutoff frequency of the product Current-Collector-Pulsed-Icm?
Q: Yes, the product's Current-Collector-Pulsed-Icm is indeed 240A
A: At what frequency does the Vce-on-Max-Vge-Ic?
Q: The product Vce-on-Max-Vge-Ic is 1.9V @ 15V, 60A.
A: Is the cutoff frequency of the product Td-on-off-25°C?
Q: Yes, the product's Td-on-off-25°C is indeed 65ns/180ns
A: What is the Test-Condition of the product?
Q: The Test-Condition of the product is 400V, 60A, 10 Ohm, 15V.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 360 W.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: At what frequency does the Collector-Emitter-Saturation-Voltage?
Q: The product Collector-Emitter-Saturation-Voltage is 1.9 V.
A: Is the cutoff frequency of the product Continuous-Collector-Current-at-25-C?
Q: Yes, the product's Continuous-Collector-Current-at-25-C is indeed 120 A
A: Is the cutoff frequency of the product Maximum-Gate-Emitter-Voltage?
Q: Yes, the product's Maximum-Gate-Emitter-Voltage is indeed +/- 20 V
