| Mfr. #: | STGWT60V60DF |
|---|---|
| 制造商: | STMicroelectronics |
| 描述: | IGBT Transistors 600V 60A Trench Gate Field-Stop IGBT |
| 生命周期: | 制造商新产品。 |

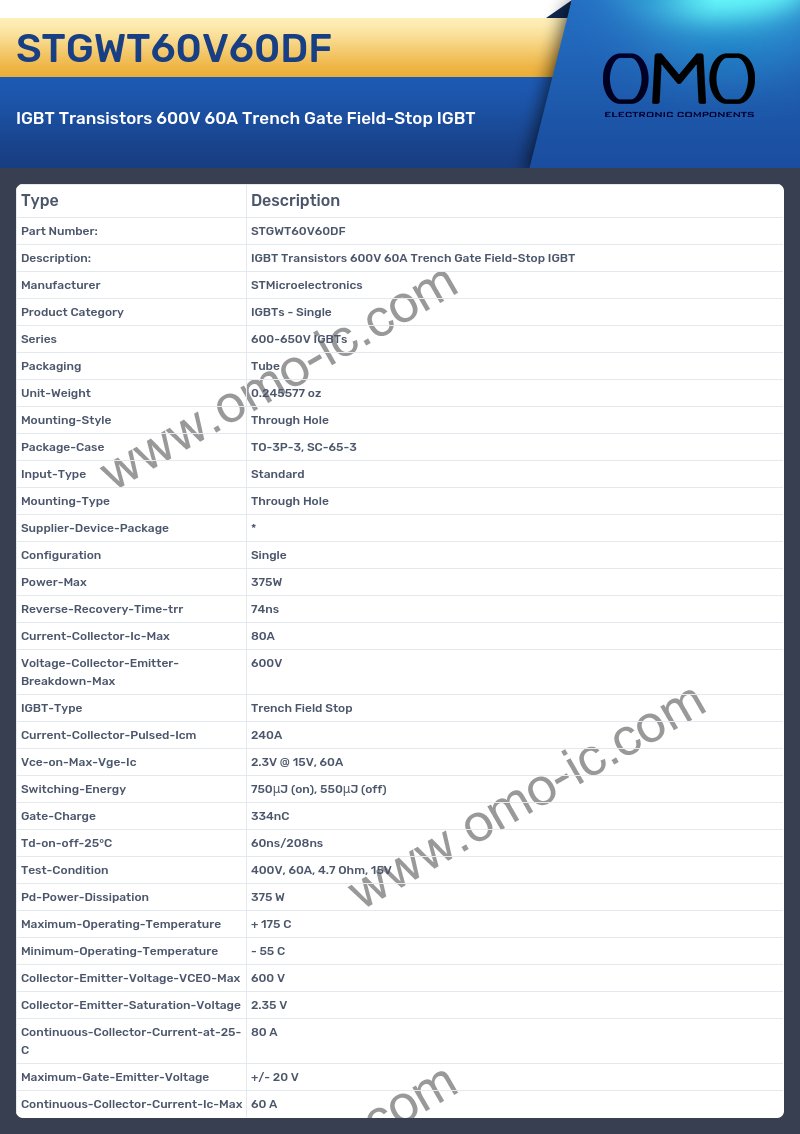

| 数据表: | STGWT60V60DF 数据表 |
Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 0.245577 oz Through Hole Mounting-Style TO-3P-3, SC-65-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: * Configuration Single Maximum current collector Ic is 80A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 240A. The Vce-on-Max-Vge-Ic is rated at 2.3V @ 15V, 60A. 60ns/208ns Td-on-off at 25°C; Operating temperature: 400V, 60A, 4.7 Ohm, 15V Power-off control: 375 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.35 V 80 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 60 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
STGWT60V60DF Specifications
