STL100N10F7

STL100N10F7 Overview

Product belongs to the N-channel STripFET series. Reel is the packaging method for this product SMD/SMT Mounting-Style PowerFlat-8 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 5 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 15 ns of 16 ns. This product has a 40 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 19 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 100 V. This product has a 2 V to 4 V Vgs-th gate-source threshold voltage for efficient power management. The 7.3 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 46 ns This product has a 27 ns. Qg-Gate-Charge is 61 nC.

STL100N10F7 Image

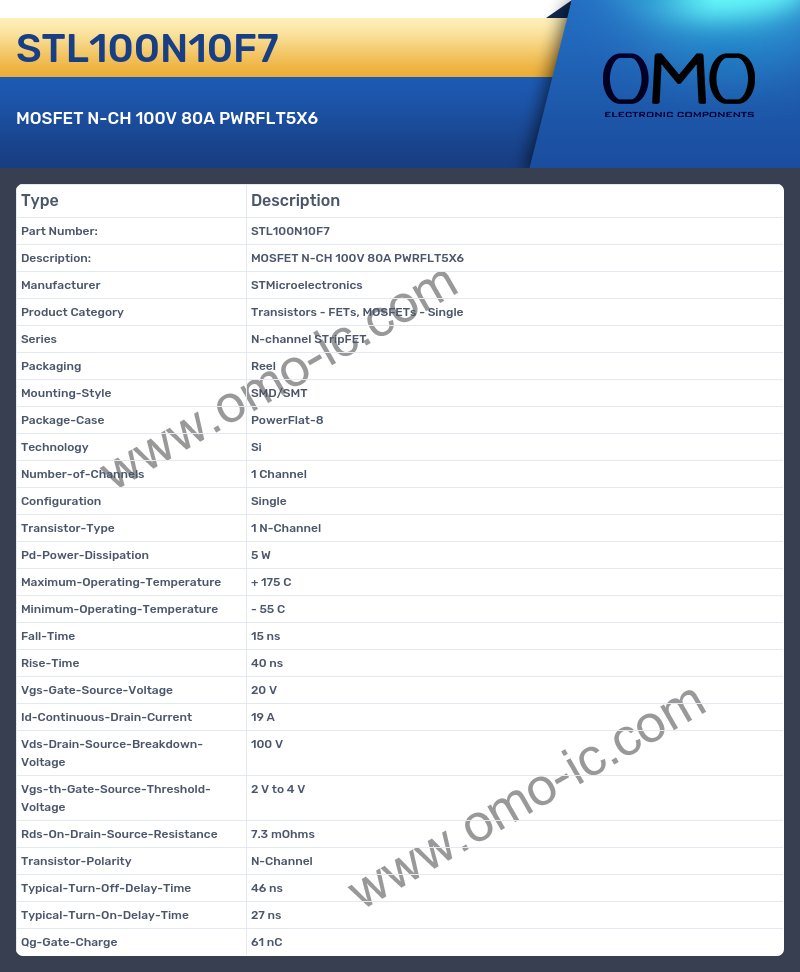

STL100N10F7 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Series N-channel STripFET
• Packaging Reel
• Mounting-Style SMD/SMT
• Package-Case PowerFlat-8
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 5 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 15 ns
• Rise-Time 40 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 19 A
• Vds-Drain-Source-Breakdown-Voltage 100 V
• Vgs-th-Gate-Source-Threshold-Voltage 2 V to 4 V
• Rds-On-Drain-Source-Resistance 7.3 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 46 ns
• Typical-Turn-On-Delay-Time 27 ns
• Qg-Gate-Charge 61 nC
