| Mfr. #: | STL4P2UH7 |
|---|---|
| 制造商: | STMicroelectronics |
| 描述: | MOSFET P-CH 20V 4A PWRFLAT2X2 |
| 生命周期: | 制造商新产品。 |
| 数据表: | STL4P2UH7 数据表 |
Product belongs to the P-channel STripFET series. Reel is the packaging method for this product SMD/SMT Mounting-Style PowerFLAT-6 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 P-Channel Power-off control: 2.4 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 19 ns of 16 ns. This product has a 21 ns of 16 ns. This product's +/- 8 V. The ID of continuous drain current is 4 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 20 V. This product has a 1 V Vgs-th gate-source threshold voltage for efficient power management. The 100 mOhms for this product is 12 Ohms. The transistor polarity is P-Channel. 'Typical-Turn-Off-Delay-Time' of 40 ns This product has a 9 ns. Qg-Gate-Charge is 4.8 nC. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

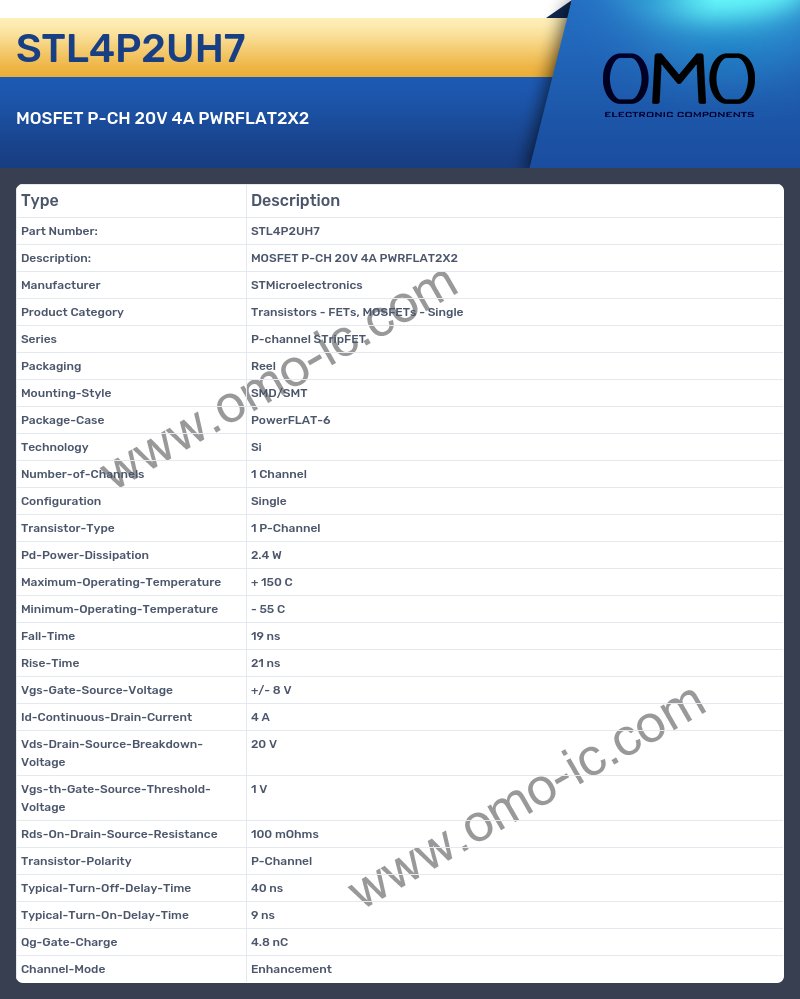

STL4P2UH7 Specifications
A: What is the Series of the product?
Q: The Series of the product is P-channel STripFET.
A: What is the Packaging of the product?
Q: The Packaging of the product is Reel.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: What is the Package-Case of the product?
Q: The Package-Case of the product is PowerFLAT-6.
A: At what frequency does the Technology?
Q: The product Technology is Si.
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 1 Channel.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: At what frequency does the Transistor-Type?
Q: The product Transistor-Type is 1 P-Channel.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 2.4 W.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 150 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: At what frequency does the Fall-Time?
Q: The product Fall-Time is 19 ns.
A: What is the Rise-Time of the product?
Q: The Rise-Time of the product is 21 ns.
A: Is the cutoff frequency of the product Vgs-Gate-Source-Voltage?
Q: Yes, the product's Vgs-Gate-Source-Voltage is indeed +/- 8 V
A: What is the Id-Continuous-Drain-Current of the product?
Q: The Id-Continuous-Drain-Current of the product is 4 A.
A: At what frequency does the Vds-Drain-Source-Breakdown-Voltage?
Q: The product Vds-Drain-Source-Breakdown-Voltage is 20 V.
A: What is the Vgs-th-Gate-Source-Threshold-Voltage of the product?
Q: The Vgs-th-Gate-Source-Threshold-Voltage of the product is 1 V.
A: At what frequency does the Rds-On-Drain-Source-Resistance?
Q: The product Rds-On-Drain-Source-Resistance is 100 mOhms.
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is P-Channel.
A: At what frequency does the Typical-Turn-Off-Delay-Time?
Q: The product Typical-Turn-Off-Delay-Time is 40 ns.
A: Is the cutoff frequency of the product Typical-Turn-On-Delay-Time?
Q: Yes, the product's Typical-Turn-On-Delay-Time is indeed 9 ns
A: What is the Qg-Gate-Charge of the product?
Q: The Qg-Gate-Charge of the product is 4.8 nC.
A: Is the cutoff frequency of the product Channel-Mode?
Q: Yes, the product's Channel-Mode is indeed Enhancement
