STM6601BS2BDM6F

STM6601BS2BDM6F Overview

Product belongs to the Smart Reset series. Type: Smart ON/OFF Controller Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style TDFN-12 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Open Collector / Drain Supplier device package: 12-TDFN (2x3) The Open Drain or Open Collector. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 240 ms Minimum. This product's 3.4V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 6 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 1.65 V This product includes No Watchdog This product's 3.4 V is 2.32 V. This product can only 1 Input at a time. This product features a Manual Reset function that allows for manual reset. This product does not have Yes capability. The 3.51 V is 2.35 V. 3.29 V is set to 2.29 V.

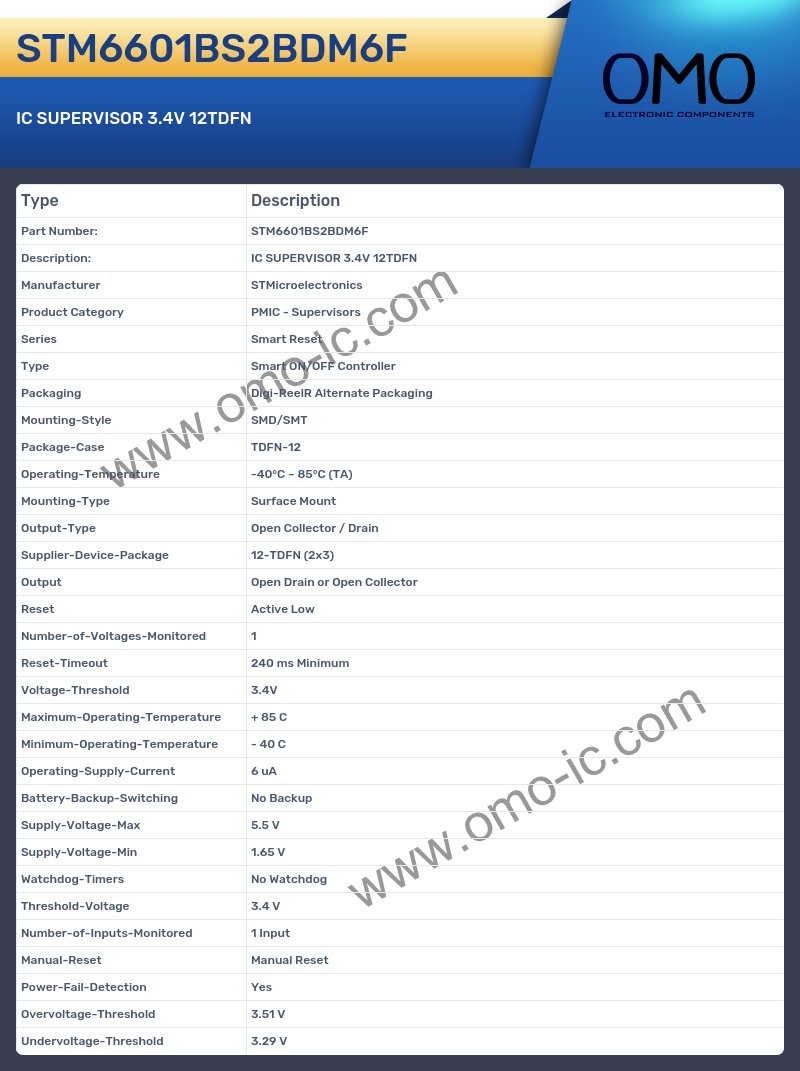

STM6601BS2BDM6F Image

STM6601BS2BDM6F Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Supervisors
• Series Smart Reset
• Type Smart ON/OFF Controller
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case TDFN-12
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Open Collector / Drain
• Supplier-Device-Package 12-TDFN (2x3)
• Output Open Drain or Open Collector
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 240 ms Minimum
• Voltage-Threshold 3.4V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 6 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.65 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 3.4 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset Manual Reset
• Power-Fail-Detection Yes
• Overvoltage-Threshold 3.51 V
• Undervoltage-Threshold 3.29 V
