STM819LM6F

STM819LM6F Overview

Product belongs to the STM819L series. Type: Simple Reset/Power-On Reset Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Active Low Push-Pull Supplier device package: 8-SOIC The Push-Pull, Totem Pole. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 140 ms Minimum. This product's 4.65V. Power-off control: 320 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 60 uA is 92 nA. This product does not have Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 1 V This product includes No Watchdog This product's 1 V to 5.5 V is 2.32 V. This product can only 1 Input at a time. This product features a Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have Yes capability. The product's 280 ms is 200 ms. The 4.75 V is 2.35 V. 4.5 V is set to 2.29 V.

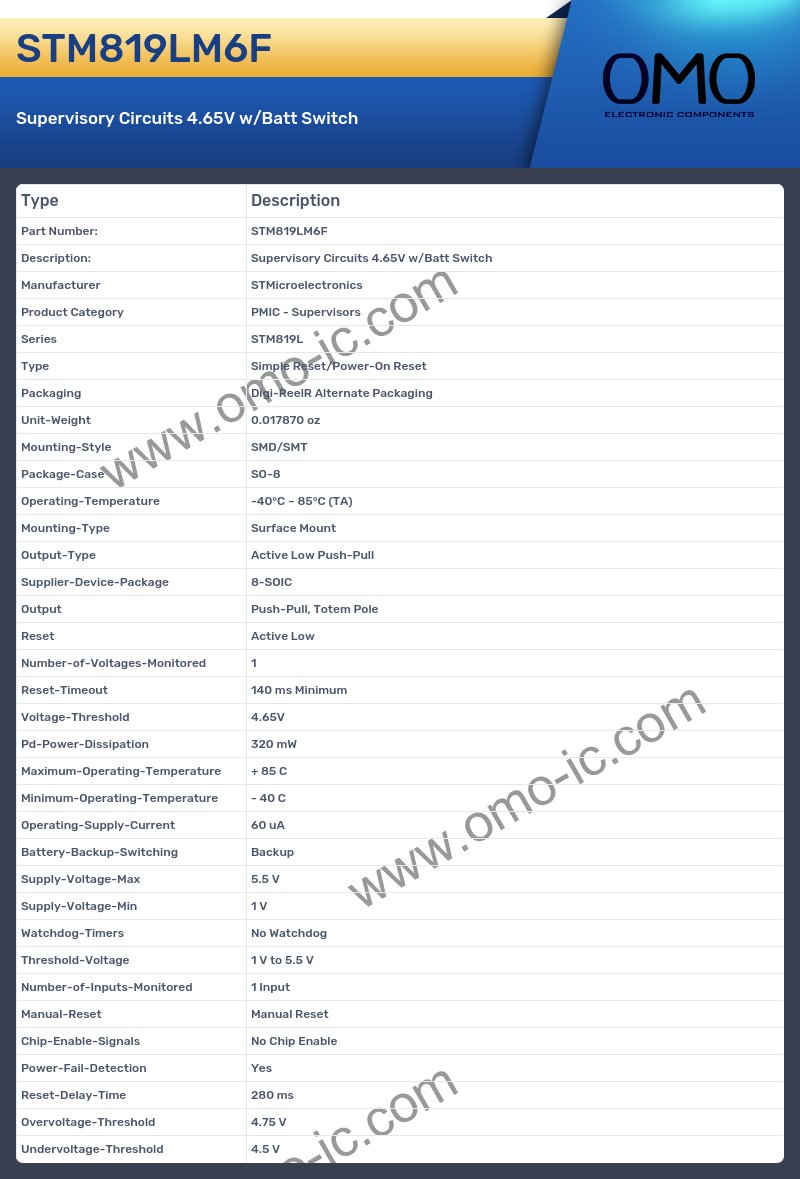

STM819LM6F Image

STM819LM6F Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Supervisors
• Series STM819L
• Type Simple Reset/Power-On Reset
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Active Low Push-Pull
• Supplier-Device-Package 8-SOIC
• Output Push-Pull, Totem Pole
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 140 ms Minimum
• Voltage-Threshold 4.65V
• Pd-Power-Dissipation 320 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 60 uA
• Battery-Backup-Switching Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 1 V to 5.5 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection Yes
• Reset-Delay-Time 280 ms
• Overvoltage-Threshold 4.75 V
• Undervoltage-Threshold 4.5 V
