STM8L151G3U6

STM8L151G3U6 Overview

Product belongs to the STM8L EnergyLite series. Tray is the packaging method for this product SMD/SMT Mounting-Style UFQFPN-28 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 28-UFQFPN This product has 26 I/O ports for versatile connectivity. Operating frequency: 16MHz Program memory type: FLASH I2C, IrDA, SPI, UART/USART interface Supply Voltage: 1.8 V ~ 3.6 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 3.6 V supply voltage for reliable performance. I2C SPI UART interface type Processor Core: STM8 This product is powered by the STM8L151 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 3.6 V Minimum supply voltage is 1.8 V Maximum clock frequency of 16 MHz Number of ADC Channels: 18 This product has 26 I/O connections. This product has a 1 kB data RAM size, providing ample storage for complex applications. The product has a 256 B data-ROM size. This product features 3 Timer number of timers and counters. This product features a high-precision 12 bit, ensuring accurate data conversion. The EEPROM Data-ROM-Type ensures non-volatile memory storage.

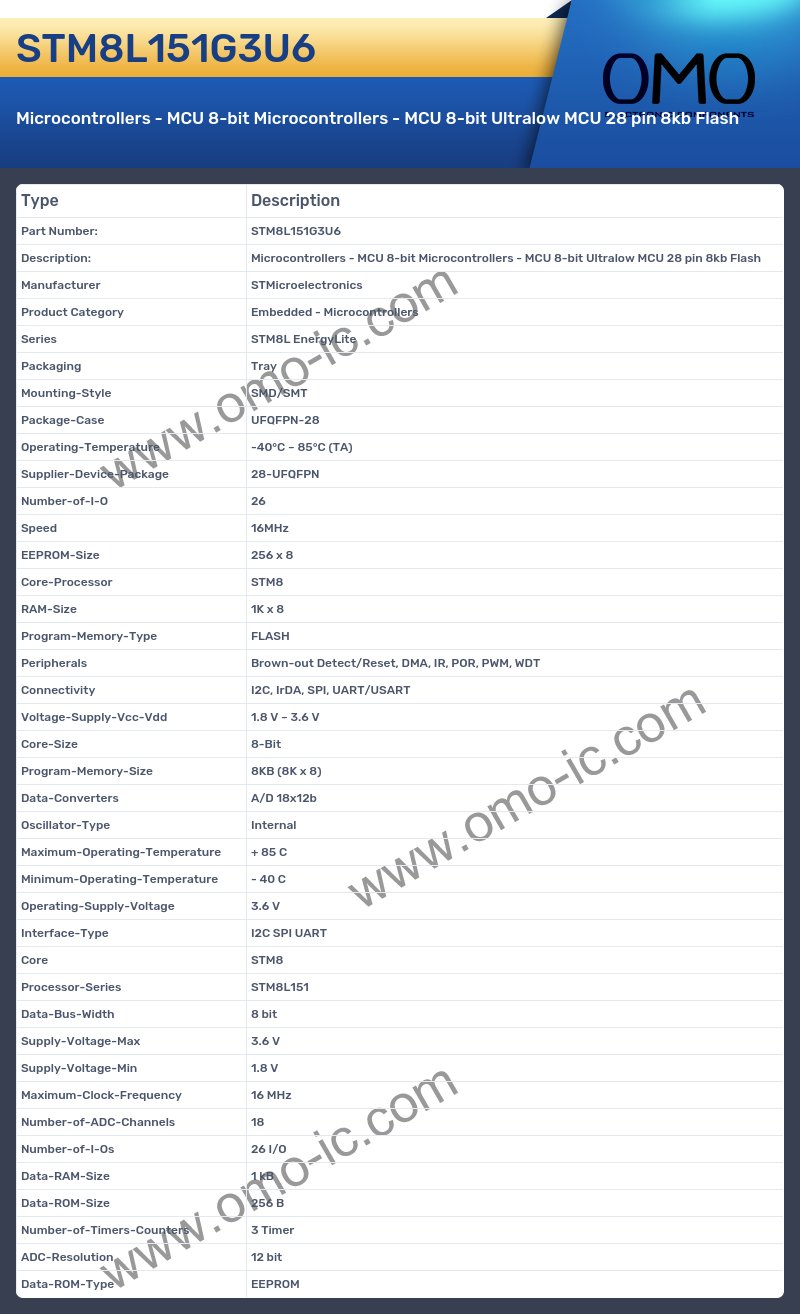

STM8L151G3U6 Image

STM8L151G3U6 Specifications

• Manufacturer STMicroelectronics
• Product Category Embedded - Microcontrollers
• Series STM8L EnergyLite
• Packaging Tray
• Mounting-Style SMD/SMT
• Package-Case UFQFPN-28
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 28-UFQFPN
• Number-of-I-O 26
• Speed 16MHz
• EEPROM-Size 256 x 8
• Core-Processor STM8
• RAM-Size 1K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, DMA, IR, POR, PWM, WDT
• Connectivity I2C, IrDA, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 3.6 V
• Core-Size 8-Bit
• Program-Memory-Size 8KB (8K x 8)
• Data-Converters A/D 18x12b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3.6 V
• Interface-Type I2C SPI UART
• Core STM8
• Processor-Series STM8L151
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 1.8 V
• Maximum-Clock-Frequency 16 MHz
• Number-of-ADC-Channels 18
• Number-of-I-Os 26 I/O
• Data-RAM-Size 1 kB
• Data-ROM-Size 256 B
• Number-of-Timers-Counters 3 Timer
• ADC-Resolution 12 bit
• Data-ROM-Type EEPROM
