STN1HNK60

STN1HNK60 Overview

Product belongs to the SuperMESH series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.008826 oz SMD/SMT Mounting-Style TO-261-4, TO-261AA Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: SOT-223 Configuration Single Dual Drain This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 600V This product has an 156pF @ 25V value of 300pF @ 25V. This product's Standard. 400mA (Tc) continuous drain-ID current at 25°C; This product has an 8.5 Ohm @ 500mA, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 3.3 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 25 ns of 16 ns. This product has a 5 ns of 16 ns. This product's 30 V. The ID of continuous drain current is 400 mA. This product has a Vds-Drain-Source-Breakdown-Voltageof 600 V. The 8.5 Ohms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 19 ns This product has a 6.5 ns. Qg-Gate-Charge is 7 nC. This product operates in Enhancement channel mode for optimal performance.

STN1HNK60 Image

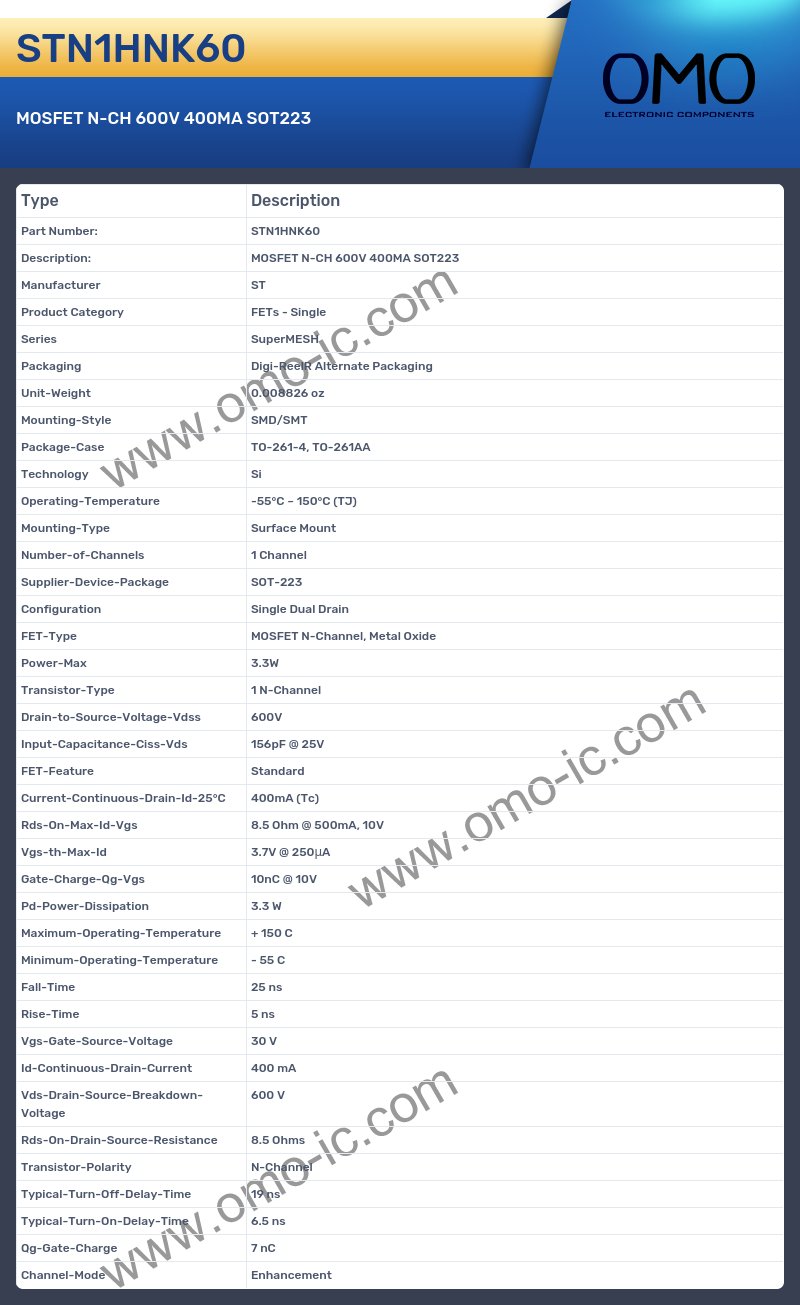

STN1HNK60 Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series SuperMESH
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.008826 oz
• Mounting-Style SMD/SMT
• Package-Case TO-261-4, TO-261AA
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 1 Channel
• Supplier-Device-Package SOT-223
• Configuration Single Dual Drain
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 3.3W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 600V
• Input-Capacitance-Ciss-Vds 156pF @ 25V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 400mA (Tc)
• Rds-On-Max-Id-Vgs 8.5 Ohm @ 500mA, 10V
• Vgs-th-Max-Id 3.7V @ 250μA
• Gate-Charge-Qg-Vgs 10nC @ 10V
• Pd-Power-Dissipation 3.3 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 25 ns
• Rise-Time 5 ns
• Vgs-Gate-Source-Voltage 30 V
• Id-Continuous-Drain-Current 400 mA
• Vds-Drain-Source-Breakdown-Voltage 600 V
• Rds-On-Drain-Source-Resistance 8.5 Ohms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 19 ns
• Typical-Turn-On-Delay-Time 6.5 ns
• Qg-Gate-Charge 7 nC
• Channel-Mode Enhancement
