STP26NM60ND

STP26NM60ND Overview

Product belongs to the N-channel MDmesh series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 190 W This product has a 27.5 ns of 16 ns. This product has a 14.5 ns of 16 ns. This product's 25 V. The ID of continuous drain current is 21 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 600 V. This product has a 4 V Vgs-th gate-source threshold voltage for efficient power management. The 145 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 69 ns This product has a 22 ns. Qg-Gate-Charge is 54.6 nC.

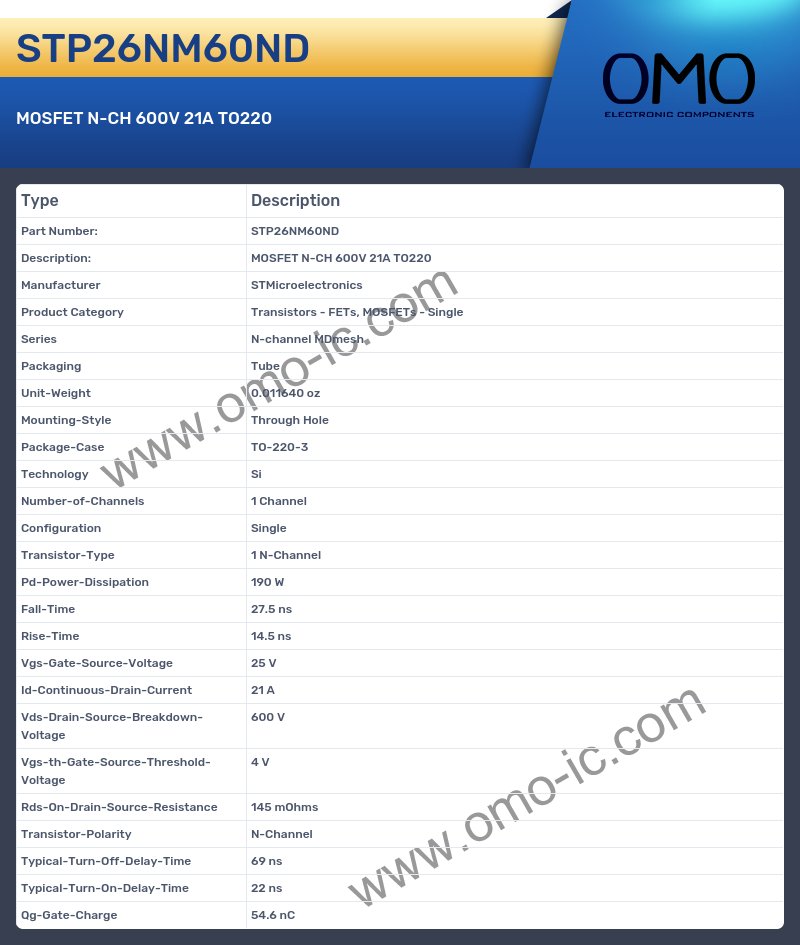

STP26NM60ND Image

STP26NM60ND Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Series N-channel MDmesh
• Packaging Tube
• Unit-Weight 0.011640 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 190 W
• Fall-Time 27.5 ns
• Rise-Time 14.5 ns
• Vgs-Gate-Source-Voltage 25 V
• Id-Continuous-Drain-Current 21 A
• Vds-Drain-Source-Breakdown-Voltage 600 V
• Vgs-th-Gate-Source-Threshold-Voltage 4 V
• Rds-On-Drain-Source-Resistance 145 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 69 ns
• Typical-Turn-On-Delay-Time 22 ns
• Qg-Gate-Charge 54.6 nC
