STP2CMPQTR

STP2CMPQTR Overview

Product belongs to the - series. Type: DC DC Regulator Tape & Reel (TR) is the packaging method for this product 20-UFQFN This product's - range is 0Hz to 2.2GHz. Operational temperature range: -30°C ~ 85°C (TA) Surface Mount mounting type Versatile Backlight applications for maximum usability Supplier device package: 20-QFN (3.2x1.8) Number-of-Outputs: 2 Current-Output-Channel is 30mA This product has Yes. Topology: Switched Capacitor (Charge Pump) feedback The maximum voltage supply is 5.5V. The minimum 2.7V required for voltage supply. Output voltage: 6V Dimming control is done through PWM communication.

STP2CMPQTR Image

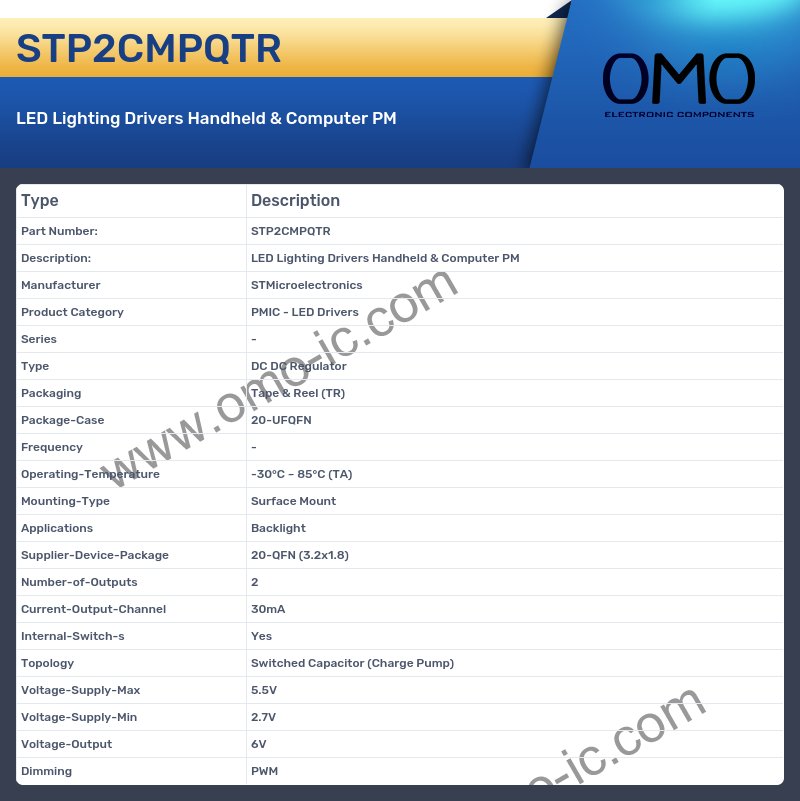

STP2CMPQTR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - LED Drivers
• Series -
• Type DC DC Regulator
• Packaging Tape & Reel (TR)
• Package-Case 20-UFQFN
• Frequency -
• Operating-Temperature -30°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Applications Backlight
• Supplier-Device-Package 20-QFN (3.2x1.8)
• Number-of-Outputs 2
• Current-Output-Channel 30mA
• Internal-Switch-s Yes
• Topology Switched Capacitor (Charge Pump)
• Voltage-Supply-Max 5.5V
• Voltage-Supply-Min 2.7V
• Voltage-Output 6V
• Dimming PWM
