| Mfr. #: | STP315N10F7 |
|---|---|
| 制造商: | STMicroelectronics |
| 描述: | MOSFET N-CH 100V 180A TO-220AB |
| 生命周期: | 制造商新产品。 |
| 数据表: | STP315N10F7 数据表 |
Product belongs to the DeepGATE, STripFET VII series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Operational temperature range: -55°C ~ 175°C (TJ) Through Hole mounting type Number of channels: 1 Channel Supplier device package: TO-220 Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 100V This product has an 12800pF @ 25V value of 300pF @ 25V. This product's Standard. 180A (Tc) continuous drain-ID current at 25°C; This product has an 2.7 mOhm @ 60A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 315 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 40 ns of 16 ns. This product has a 108 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 180 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 100 V. This product has a 3.5 V Vgs-th gate-source threshold voltage for efficient power management. The 2.3 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 148 ns This product has a 62 ns. Qg-Gate-Charge is 180 nC.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

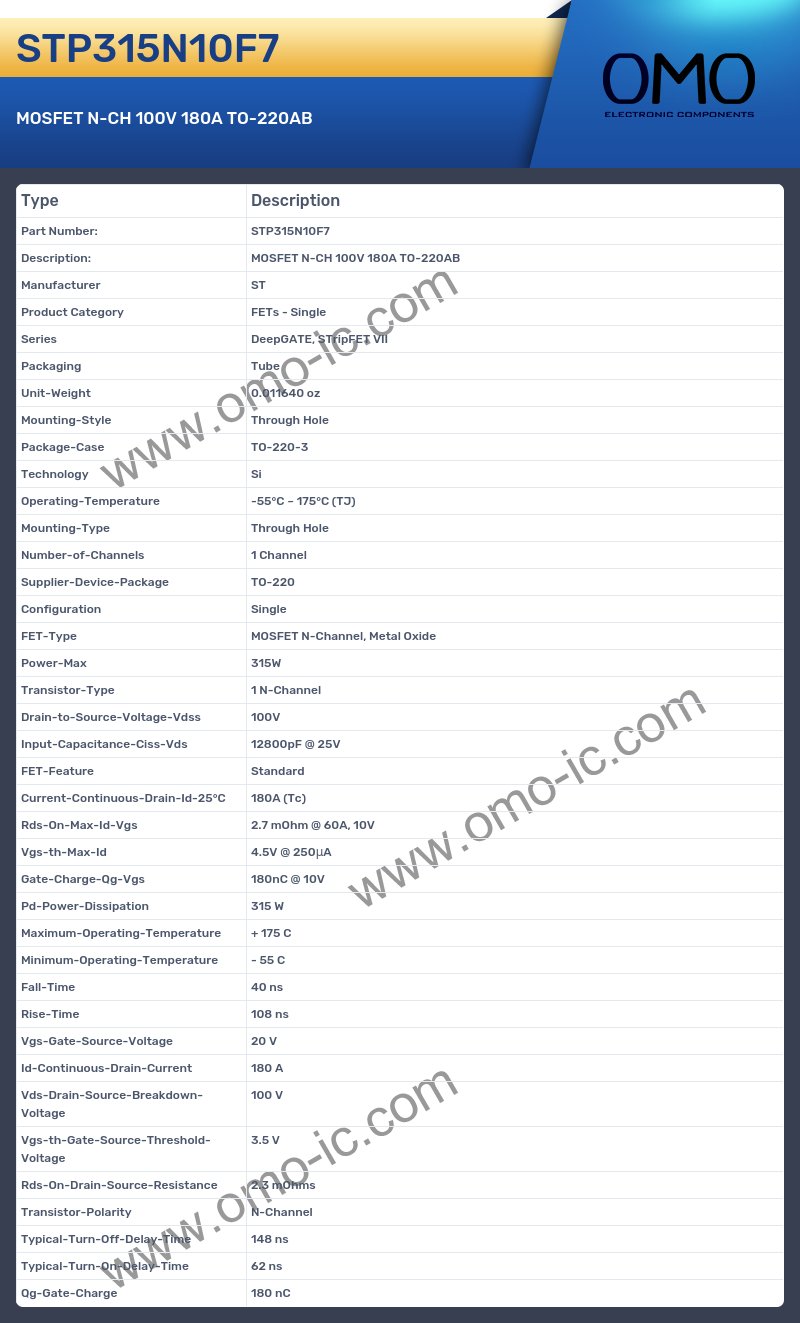

STP315N10F7 Specifications
A: What is the Series of the product?
Q: The Series of the product is DeepGATE, STripFET VII.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.011640 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Through Hole.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-220-3.
A: At what frequency does the Technology?
Q: The product Technology is Si.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -55°C ~ 175°C (TJ).
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Through Hole.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 1 Channel
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed TO-220
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: Is the cutoff frequency of the product FET-Type?
Q: Yes, the product's FET-Type is indeed MOSFET N-Channel, Metal Oxide
A: At what frequency does the Transistor-Type?
Q: The product Transistor-Type is 1 N-Channel.
A: Is the cutoff frequency of the product Drain-to-Source-Voltage-Vdss?
Q: Yes, the product's Drain-to-Source-Voltage-Vdss is indeed 100V
A: Is the cutoff frequency of the product Input-Capacitance-Ciss-Vds?
Q: Yes, the product's Input-Capacitance-Ciss-Vds is indeed 12800pF @ 25V
A: Is the cutoff frequency of the product FET-Feature?
Q: Yes, the product's FET-Feature is indeed Standard
A: Is the cutoff frequency of the product Current-Continuous-Drain-Id-25°C?
Q: Yes, the product's Current-Continuous-Drain-Id-25°C is indeed 180A (Tc)
A: What is the Rds-On-Max-Id-Vgs of the product?
Q: The Rds-On-Max-Id-Vgs of the product is 2.7 mOhm @ 60A, 10V.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 315 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 175 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: At what frequency does the Fall-Time?
Q: The product Fall-Time is 40 ns.
A: What is the Rise-Time of the product?
Q: The Rise-Time of the product is 108 ns.
A: What is the Vgs-Gate-Source-Voltage of the product?
Q: The Vgs-Gate-Source-Voltage of the product is 20 V.
A: What is the Id-Continuous-Drain-Current of the product?
Q: The Id-Continuous-Drain-Current of the product is 180 A.
A: Is the cutoff frequency of the product Vds-Drain-Source-Breakdown-Voltage?
Q: Yes, the product's Vds-Drain-Source-Breakdown-Voltage is indeed 100 V
A: At what frequency does the Vgs-th-Gate-Source-Threshold-Voltage?
Q: The product Vgs-th-Gate-Source-Threshold-Voltage is 3.5 V.
A: What is the Rds-On-Drain-Source-Resistance of the product?
Q: The Rds-On-Drain-Source-Resistance of the product is 2.3 mOhms.
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed N-Channel
A: At what frequency does the Typical-Turn-Off-Delay-Time?
Q: The product Typical-Turn-Off-Delay-Time is 148 ns.
A: What is the Typical-Turn-On-Delay-Time of the product?
Q: The Typical-Turn-On-Delay-Time of the product is 62 ns.
A: At what frequency does the Qg-Gate-Charge?
Q: The product Qg-Gate-Charge is 180 nC.
