STPS10L25G-TR

STPS10L25G-TR Overview

Product belongs to the STPS10L25 series. This product is categorized as Schottky Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.070548 oz SMD/SMT Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Si is the technology used. Surface Mount mounting type Supplier device package: D2PAK Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 800μA @ 25V Current-Reverse-Leakage-Vr 1. Vf Max 460mV @ 10A is the Voltage-Forward; Maximum DC reverse voltage 25V The 10A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.55 V at 20 A Ir-Reverse-Current is 800 uA. If-Forward-Current is 10 A. VRRM (25 V) Reverse Voltage 200 A IFSM Forward Surge Current

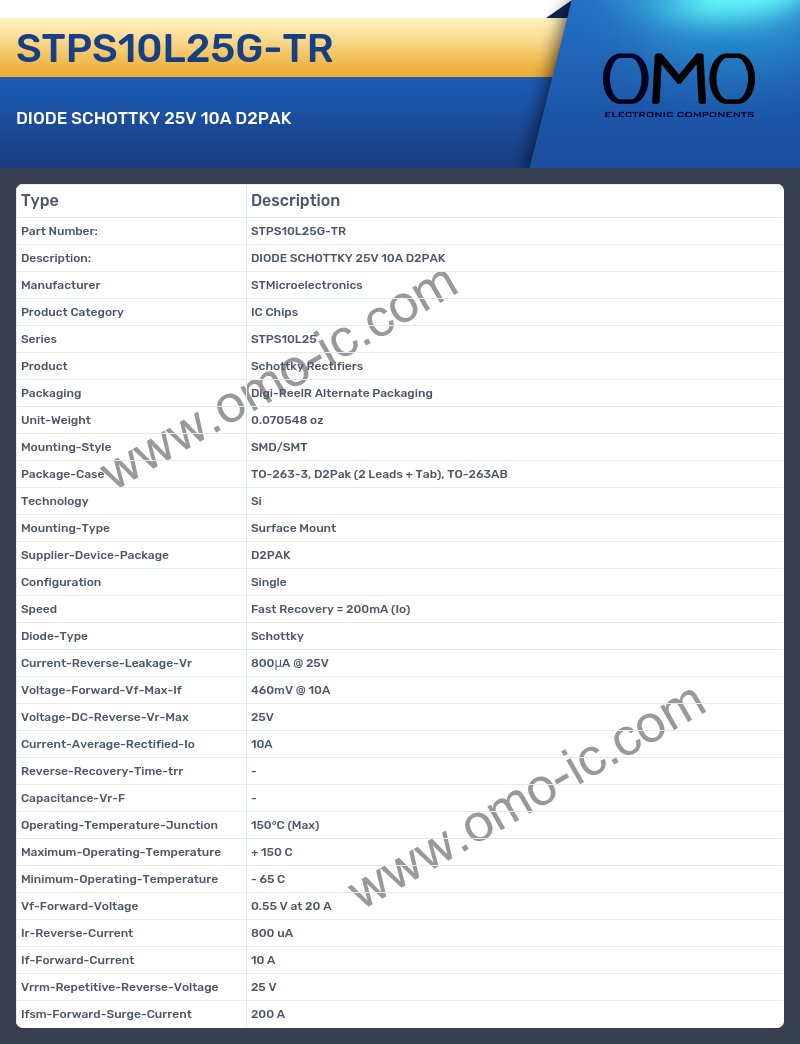

STPS10L25G-TR Image

STPS10L25G-TR Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series STPS10L25
• Product Schottky Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.070548 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 800μA @ 25V
• Voltage-Forward-Vf-Max-If 460mV @ 10A
• Voltage-DC-Reverse-Vr-Max 25V
• Current-Average-Rectified-Io 10A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 0.55 V at 20 A
• Ir-Reverse-Current 800 uA
• If-Forward-Current 10 A
• Vrrm-Repetitive-Reverse-Voltage 25 V
• Ifsm-Forward-Surge-Current 200 A
