STPS30L30DJF-TR

STPS30L30DJF-TR Overview

Product belongs to the STPS30L30DJF series. This product is categorized as Schottky Diodes Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 8-PowerVDFN Si is the technology used. Surface Mount mounting type Supplier device package: PowerFlat (5x6) Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 750μA @ 30V Current-Reverse-Leakage-Vr 1. Vf Max 510mV @ 30A is the Voltage-Forward; Maximum DC reverse voltage 30V The 30A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Maximum operating temperature of + 150 C Minimum operating temperature: - 25 C Vf-Forward-Voltage: 0.51 V Ir-Reverse-Current is 0.75 mA. If-Forward-Current is 30 A. VRRM (30 V) Reverse Voltage 250 A IFSM Forward Surge Current

STPS30L30DJF-TR Image

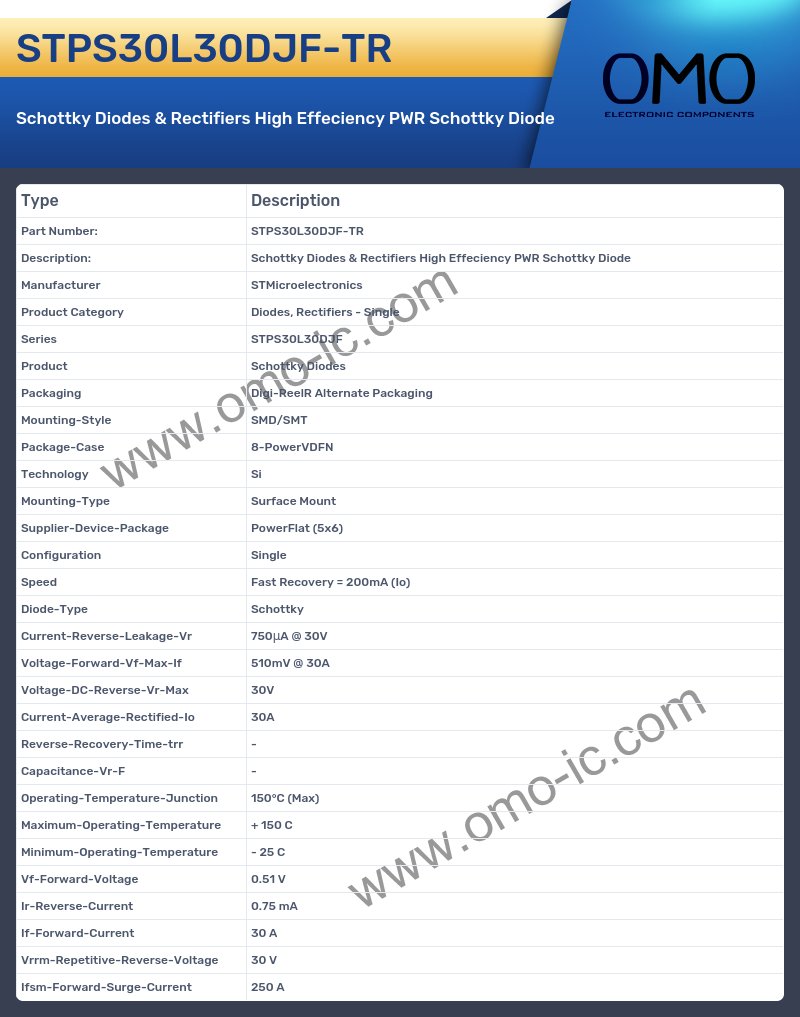

STPS30L30DJF-TR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS30L30DJF
• Product Schottky Diodes
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case 8-PowerVDFN
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package PowerFlat (5x6)
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 750μA @ 30V
• Voltage-Forward-Vf-Max-If 510mV @ 30A
• Voltage-DC-Reverse-Vr-Max 30V
• Current-Average-Rectified-Io 30A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 25 C
• Vf-Forward-Voltage 0.51 V
• Ir-Reverse-Current 0.75 mA
• If-Forward-Current 30 A
• Vrrm-Repetitive-Reverse-Voltage 30 V
• Ifsm-Forward-Surge-Current 250 A
