STPS3L45AF

STPS3L45AF Overview

Product belongs to the STPS3L45AF series. This product is categorized as Schottky Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style DO-221AC, SMA Flat Leads Si is the technology used. Surface Mount mounting type Supplier device package: SMAflat Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 300μA @ 45V Current-Reverse-Leakage-Vr 1. Vf Max 570mV @ 3A is the Voltage-Forward; Maximum DC reverse voltage 45V The 3A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Vf-Forward-Voltage: 0.462 V Ir-Reverse-Current is 135 mA. If-Forward-Current is 3 A. VRRM (45 V) Reverse Voltage 75 A IFSM Forward Surge Current

STPS3L45AF Image

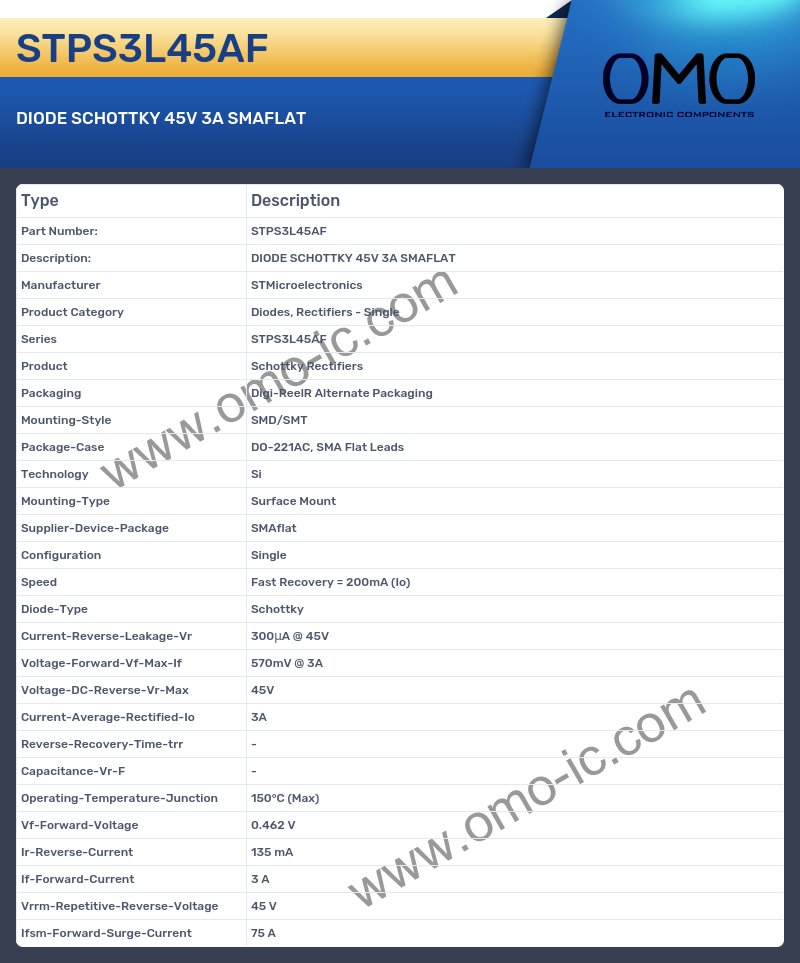

STPS3L45AF Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS3L45AF
• Product Schottky Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case DO-221AC, SMA Flat Leads
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package SMAflat
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 300μA @ 45V
• Voltage-Forward-Vf-Max-If 570mV @ 3A
• Voltage-DC-Reverse-Vr-Max 45V
• Current-Average-Rectified-Io 3A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Vf-Forward-Voltage 0.462 V
• Ir-Reverse-Current 135 mA
• If-Forward-Current 3 A
• Vrrm-Repetitive-Reverse-Voltage 45 V
• Ifsm-Forward-Surge-Current 75 A
