STPS8L30DEE-TR Overview

Product belongs to the STPS8L30DEE series. This product is categorized as Schottky Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 8-PowerTDFN Si is the technology used. Surface Mount mounting type Supplier device package: PowerFlat (3.3x3.3) Configuration Single Triple Anode Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 1mA @ 30V Current-Reverse-Leakage-Vr 1. Vf Max 500mV @ 8A is the Voltage-Forward; Maximum DC reverse voltage 30V The 8A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Power-off control: - Maximum operating temperature of + 150 C Minimum operating temperature: - Vf-Forward-Voltage: 500 mV VR Reverse Voltage of 30 V Ir-Reverse-Current is 1 mA. If-Forward-Current is 8 A. VRRM (30 V) Reverse Voltage 100 A IFSM Forward Surge Current The - TRR-Reverse-Recovery-time

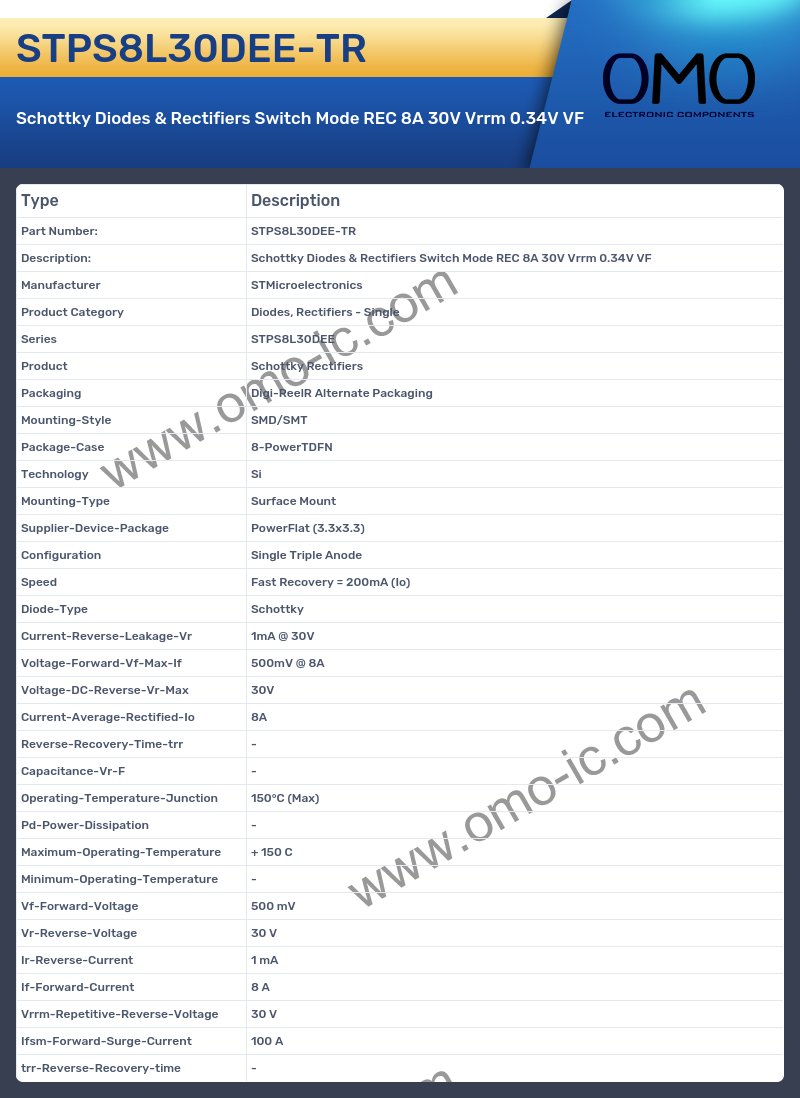

STPS8L30DEE-TR Image

STPS8L30DEE-TR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS8L30DEE
• Product Schottky Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case 8-PowerTDFN
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package PowerFlat (3.3x3.3)
• Configuration Single Triple Anode
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 1mA @ 30V
• Voltage-Forward-Vf-Max-If 500mV @ 8A
• Voltage-DC-Reverse-Vr-Max 30V
• Current-Average-Rectified-Io 8A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Pd-Power-Dissipation -
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature -
• Vf-Forward-Voltage 500 mV
• Vr-Reverse-Voltage 30 V
• Ir-Reverse-Current 1 mA
• If-Forward-Current 8 A
• Vrrm-Repetitive-Reverse-Voltage 30 V
• Ifsm-Forward-Surge-Current 100 A
• trr-Reverse-Recovery-time -
