STS5DPF20L

STS5DPF20L Overview

Product belongs to the STripFET II series. Cut Tape (CT) Alternate Packaging is the packaging method for this product 8-SOIC (0.154", 3.90mm Width) Operational temperature range: 150°C (TJ) Surface Mount mounting type Supplier device package: 8-SO This product uses an 2 P-Channel (Dual) FET-Type transistor. 20V This product has an 1350pF @ 16V value of 300pF @ 25V. This product's Logic Level Gate. 5A continuous drain-ID current at 25°C; This product has an 55 mOhm @ 2.5A, 10V of 12 Ohm @ 150mA, 0V.

STS5DPF20L Image

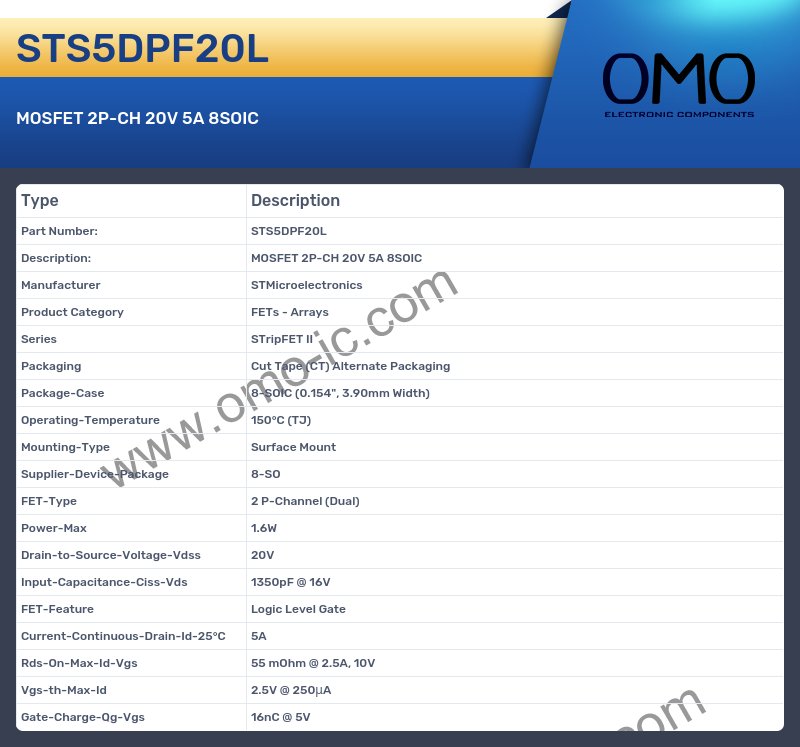

STS5DPF20L Specifications

• Manufacturer STMicroelectronics
• Product Category FETs - Arrays
• Series STripFET II
• Packaging Cut Tape (CT) Alternate Packaging
• Package-Case 8-SOIC (0.154", 3.90mm Width)
• Operating-Temperature 150°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package 8-SO
• FET-Type 2 P-Channel (Dual)
• Power-Max 1.6W
• Drain-to-Source-Voltage-Vdss 20V
• Input-Capacitance-Ciss-Vds 1350pF @ 16V
• FET-Feature Logic Level Gate
• Current-Continuous-Drain-Id-25°C 5A
• Rds-On-Max-Id-Vgs 55 mOhm @ 2.5A, 10V
• Vgs-th-Max-Id 2.5V @ 250μA
• Gate-Charge-Qg-Vgs 16nC @ 5V
