STS5N15F3

STS5N15F3 Overview

Product belongs to the STS5N15F3 series. Reel is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 Si is the technology used. Number of channels: 1 Channel Configuration Single Quad Drain Triple Source Transistor type: 1 N-Channel Power-off control: 2.5 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 20 ns of 16 ns. This product has a 13 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 150 V. The 57 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 46 ns This product has a 9 ns. This product operates in Enhancement channel mode for optimal performance.

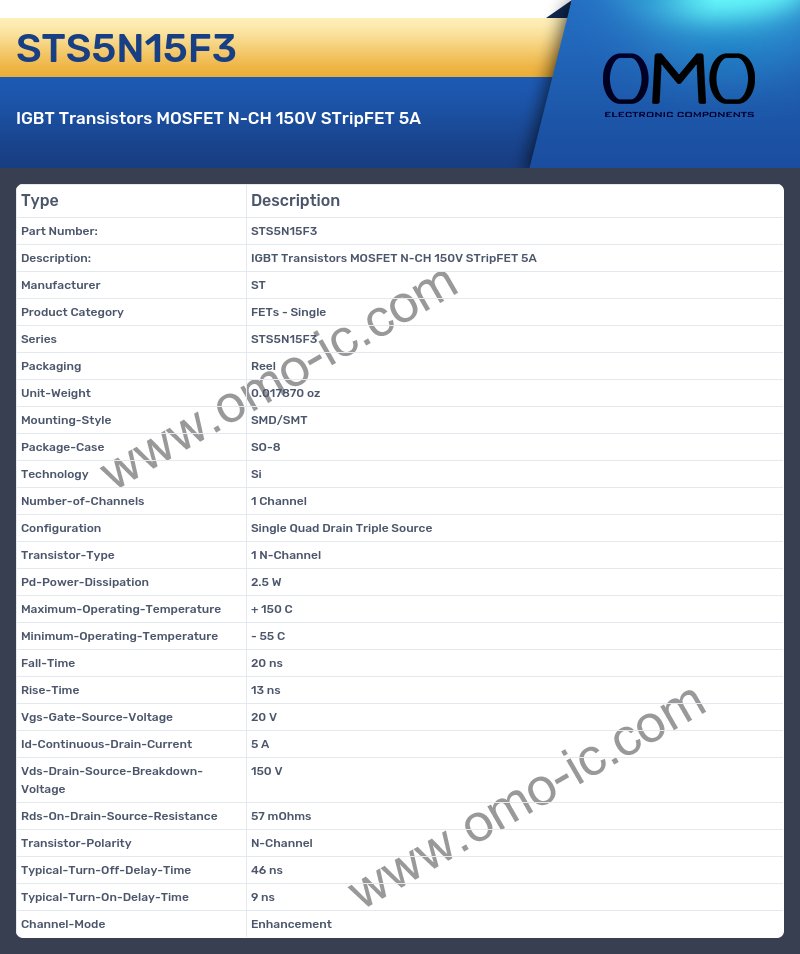

STS5N15F3 Image

STS5N15F3 Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series STS5N15F3
• Packaging Reel
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single Quad Drain Triple Source
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 2.5 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 20 ns
• Rise-Time 13 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 5 A
• Vds-Drain-Source-Breakdown-Voltage 150 V
• Rds-On-Drain-Source-Resistance 57 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 46 ns
• Typical-Turn-On-Delay-Time 9 ns
• Channel-Mode Enhancement
