| Mfr. #: | STT13005D |
|---|---|
| 制造商: | STMicroelectronics |
| 描述: | TRANS NPN 400V 2A SOT-32-3 |
| 生命周期: | 制造商新产品。 |
| 数据表: | STT13005D 数据表 |
Product belongs to the STT13005 series. Bulk is the packaging method for this product Through Hole Mounting-Style TO-225AA, TO-126-3 Through Hole mounting type Supplier device package: SOT-32-3 Configuration Single Transistor type: NPN Maximum current collector Ic is 2A . Maximum collector-emitter breakdown voltage of 400V DC current gain minimum (hFE) of Ic/Vce at 10 @ 500mA, 5V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1.5V @ 400mA, 1.6A Power-off control: 45 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 400 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 1.5 V 9 V rating of 5 V Max DC collector current: 4 A This product is capable of handling a 2 A continuous collector current. Minimum hfe for DC collector-base gain is 8. 50 of 605.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

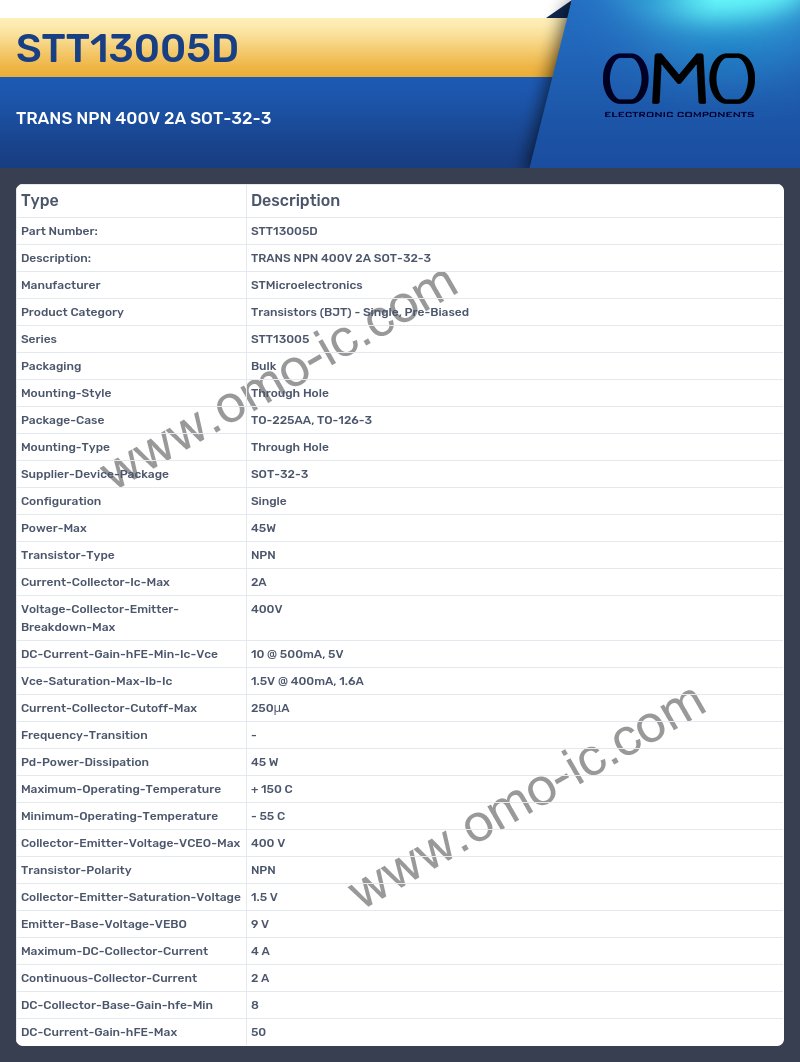

STT13005D Specifications
