STTH10R04G-TR

STTH10R04G-TR Overview

Product belongs to the STTH10R04 series. This product is categorized as Ultra Fast Recovery Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.070548 oz SMD/SMT Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Surface Mount mounting type Supplier device package: D2PAK Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Standard diode type The 10μA @ 400V Current-Reverse-Leakage-Vr 1. Vf Max 1.7V @ 10A is the Voltage-Forward; Maximum DC reverse voltage 400V The 10A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 1.7 V VR Reverse Voltage of 400 V Ir-Reverse-Current is 10 uA. If-Forward-Current is 10 A. Maximum Surge Current: 100 A

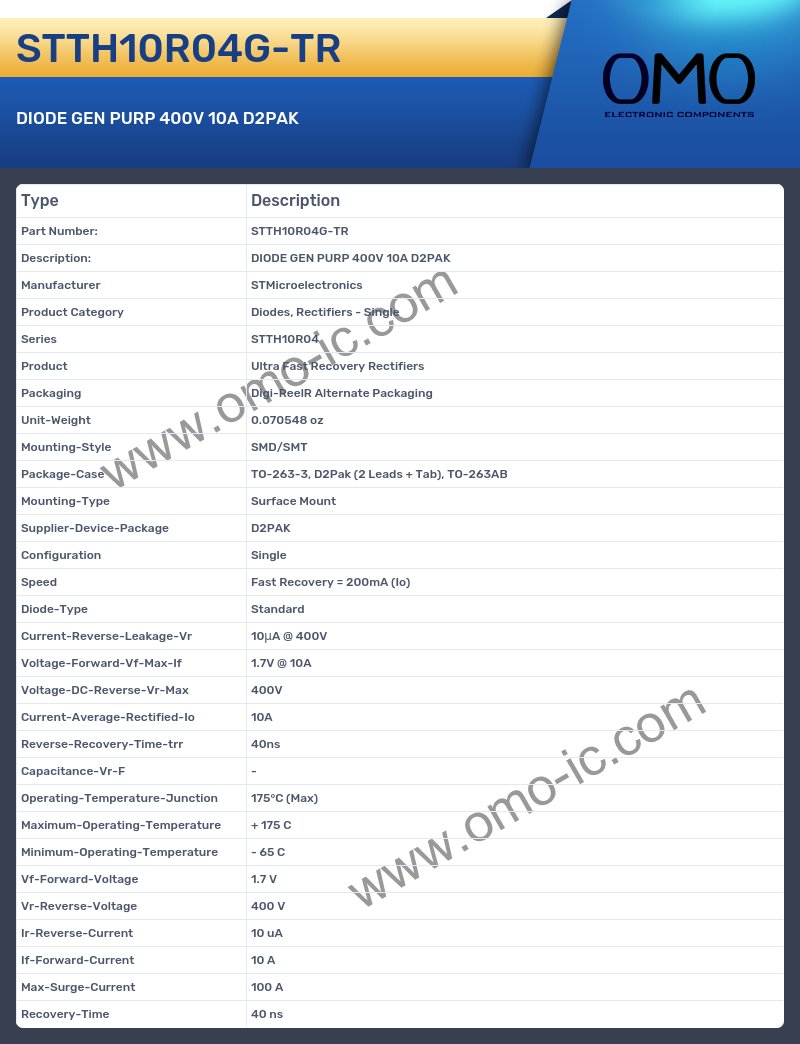

STTH10R04G-TR Image

STTH10R04G-TR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STTH10R04
• Product Ultra Fast Recovery Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.070548 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Standard
• Current-Reverse-Leakage-Vr 10μA @ 400V
• Voltage-Forward-Vf-Max-If 1.7V @ 10A
• Voltage-DC-Reverse-Vr-Max 400V
• Current-Average-Rectified-Io 10A
• Reverse-Recovery-Time-trr 40ns
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 1.7 V
• Vr-Reverse-Voltage 400 V
• Ir-Reverse-Current 10 uA
• If-Forward-Current 10 A
• Max-Surge-Current 100 A
• Recovery-Time 40 ns
