| Mfr. #: | STW70N10F4 |
|---|---|
| 制造商: | STMicroelectronics |
| 描述: | Darlington Transistors MOSFET N-Ch 100 Volt 60 Amp |
| 生命周期: | 制造商新产品。 |
| 数据表: | STW70N10F4 数据表 |
Product belongs to the N-channel STripFET series. Tube is the packaging method for this product Weight of 1.340411 oz Through Hole Mounting-Style TO-247-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 150 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 20 ns of 16 ns. This product has a 20 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 65 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 100 V. This product has a 4 V Vgs-th gate-source threshold voltage for efficient power management. The 19.5 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 65 ns This product has a 30 ns. Qg-Gate-Charge is 85 nC. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

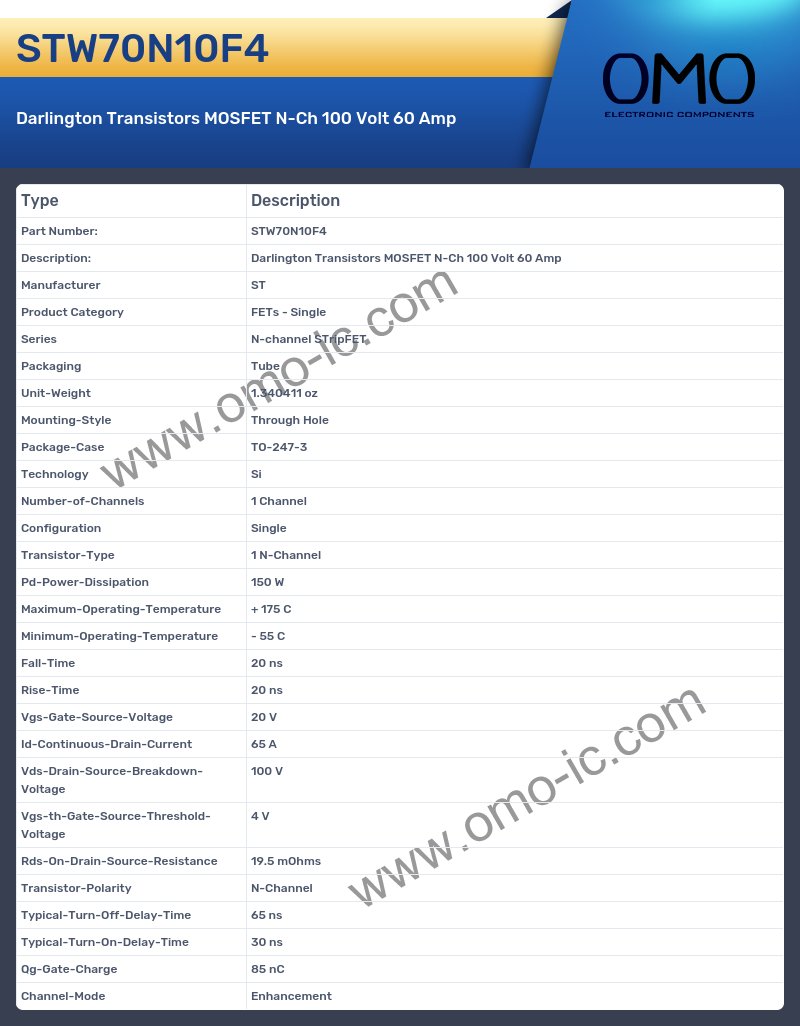

STW70N10F4 Specifications
A: At what frequency does the Series?
Q: The product Series is N-channel STripFET.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 1.340411 oz
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-247-3.
A: Is the cutoff frequency of the product Technology?
Q: Yes, the product's Technology is indeed Si
A: What is the Number-of-Channels of the product?
Q: The Number-of-Channels of the product is 1 Channel.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: Is the cutoff frequency of the product Transistor-Type?
Q: Yes, the product's Transistor-Type is indeed 1 N-Channel
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 150 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 175 C
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: What is the Fall-Time of the product?
Q: The Fall-Time of the product is 20 ns.
A: What is the Rise-Time of the product?
Q: The Rise-Time of the product is 20 ns.
A: Is the cutoff frequency of the product Vgs-Gate-Source-Voltage?
Q: Yes, the product's Vgs-Gate-Source-Voltage is indeed 20 V
A: At what frequency does the Id-Continuous-Drain-Current?
Q: The product Id-Continuous-Drain-Current is 65 A.
A: What is the Vds-Drain-Source-Breakdown-Voltage of the product?
Q: The Vds-Drain-Source-Breakdown-Voltage of the product is 100 V.
A: At what frequency does the Vgs-th-Gate-Source-Threshold-Voltage?
Q: The product Vgs-th-Gate-Source-Threshold-Voltage is 4 V.
A: What is the Rds-On-Drain-Source-Resistance of the product?
Q: The Rds-On-Drain-Source-Resistance of the product is 19.5 mOhms.
A: At what frequency does the Transistor-Polarity?
Q: The product Transistor-Polarity is N-Channel.
A: At what frequency does the Typical-Turn-Off-Delay-Time?
Q: The product Typical-Turn-Off-Delay-Time is 65 ns.
A: What is the Typical-Turn-On-Delay-Time of the product?
Q: The Typical-Turn-On-Delay-Time of the product is 30 ns.
A: Is the cutoff frequency of the product Qg-Gate-Charge?
Q: Yes, the product's Qg-Gate-Charge is indeed 85 nC
A: Is the cutoff frequency of the product Channel-Mode?
Q: Yes, the product's Channel-Mode is indeed Enhancement
