TAS5630DKD Overview

Product belongs to the PurePath HD series. This product is categorized as Audio Amplifiers Type: Class D Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style HSSOP-44 The Differential Single for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Output-Type: 1-Channel (Mono) or 2-Channel (Stereo) Number of channels: 4 Channel Voltage Supply Range: 25 V ~ 52.5 V Supplier device package: 44-HSSOP Maximum Output Power of 600W x 1 @ 2 Ohm; 300W x 2 @ 4 Ohm for 1 channel The device offers a 23 dB of 26dB. Class-D Class-G is the class of this product. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 22.5 mA 12.5 mA is 92 nA. Output current: 9 mA The TAS5630DKD2EVM. Maximum supply voltage of 52.5 V Minimum supply voltage is 25 V Input bias current of - This product has a 0.03 % for clear and precise audio. 8 Ohm audio load impedance Triple supply type

TAS5630DKD Image

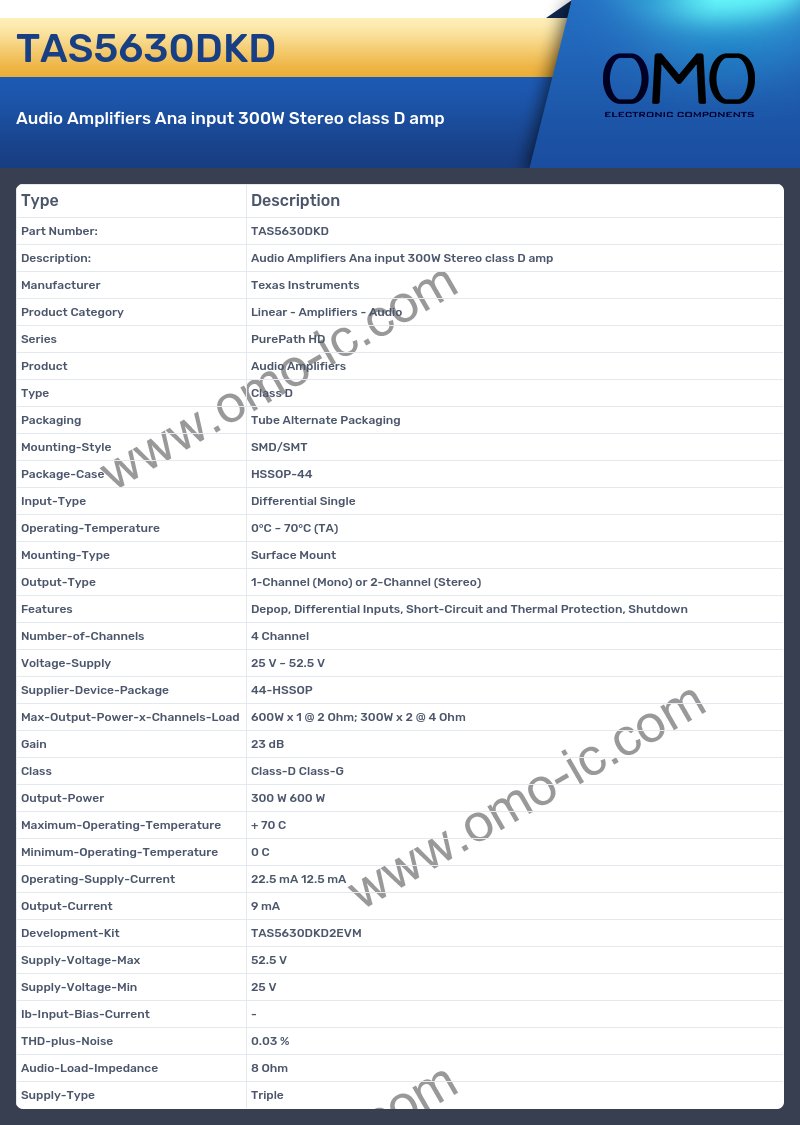

TAS5630DKD Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Amplifiers - Audio
• Series PurePath HD
• Product Audio Amplifiers
• Type Class D
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case HSSOP-44
• Input-Type Differential Single
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Output-Type 1-Channel (Mono) or 2-Channel (Stereo)
• Features Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown
• Number-of-Channels 4 Channel
• Voltage-Supply 25 V ~ 52.5 V
• Supplier-Device-Package 44-HSSOP
• Max-Output-Power-x-Channels-Load 600W x 1 @ 2 Ohm; 300W x 2 @ 4 Ohm
• Gain 23 dB
• Class Class-D Class-G
• Output-Power 300 W 600 W
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 22.5 mA 12.5 mA
• Output-Current 9 mA
• Development-Kit TAS5630DKD2EVM
• Supply-Voltage-Max 52.5 V
• Supply-Voltage-Min 25 V
• Ib-Input-Bias-Current -
• THD-plus-Noise 0.03 %
• Audio-Load-Impedance 8 Ohm
• Supply-Type Triple
