TDE3247FPT

TDE3247FPT Overview

Product belongs to the TDE3247 series. This product is categorized as Stepper Motor Controllers / Drivers Type: Relay and Lamp Driver Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.009143 oz SMD/SMT Mounting-Style SO-14 The Inverting, Non-Inverting for this product is CMOS/TTL. Operational temperature range: -25°C ~ 85°C (TA) Output-Type: Bipolar Interface: On/Off Supplier device package: 14-SOIC The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The High Side. The -. Voltage-Load range is 8 V ~ 30 V. Our product delivers a 300mA of 50mA for efficient power management. The Switch-Type is Relay, Solenoid Driver.

TDE3247FPT Image

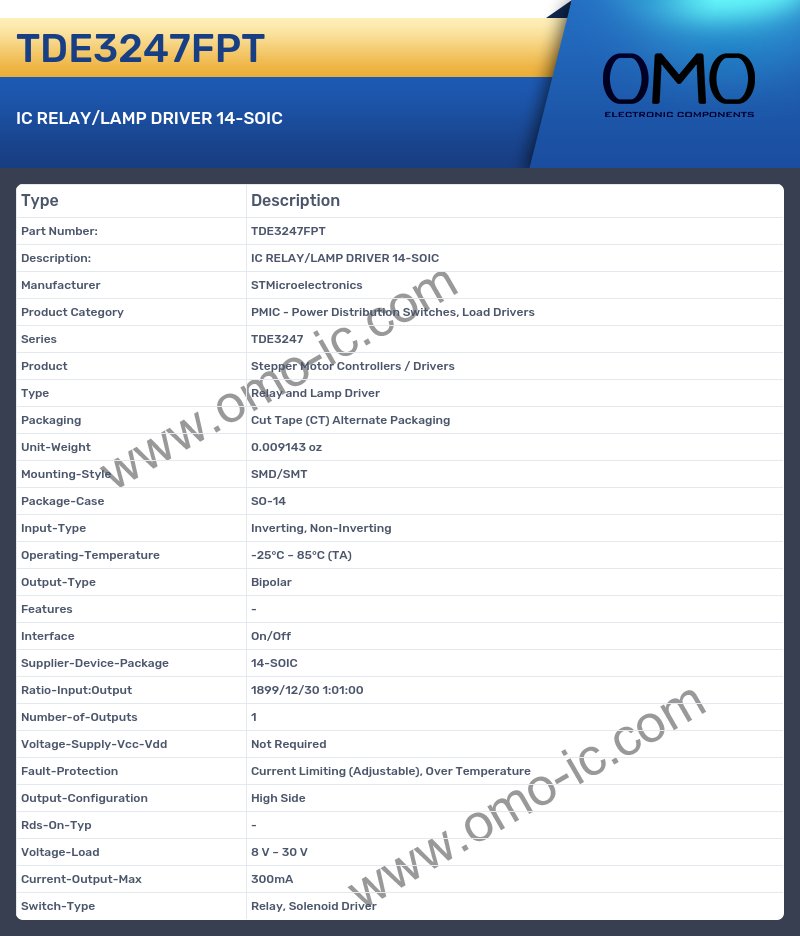

TDE3247FPT Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series TDE3247
• Product Stepper Motor Controllers / Drivers
• Type Relay and Lamp Driver
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.009143 oz
• Mounting-Style SMD/SMT
• Package-Case SO-14
• Input-Type Inverting, Non-Inverting
• Operating-Temperature -25°C ~ 85°C (TA)
• Output-Type Bipolar
• Features -
• Interface On/Off
• Supplier-Device-Package 14-SOIC
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Adjustable), Over Temperature
• Output-Configuration High Side
• Rds-On-Typ -
• Voltage-Load 8 V ~ 30 V
• Current-Output-Max 300mA
• Switch-Type Relay, Solenoid Driver
