| Mfr. #: | TIP102 |
|---|---|
| 制造商: | STMicroelectronics |
| 描述: | TRANS NPN DARL 100V 8A TO220AB |
| 生命周期: | 制造商新产品。 |
| 数据表: | TIP102 数据表 |
Product belongs to the Darlingtons series. Bulk Alternate Packaging is the packaging method for this product The TIP102_NL is listed as a Part-Aliase. Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 Through Hole mounting type Supplier device package: TO-220-3 Configuration Single Transistor type: NPN - Darlington Maximum current collector Ic is 8A . Maximum collector-emitter breakdown voltage of 100V DC current gain minimum (hFE) of Ic/Vce at 1000 @ 3A, 4V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 2.5V @ 80mA, 8A Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 100 V The transistor polarity is NPN. The 100 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 8 A Minimum hfe for DC collector-base gain is 200. 50 uA Maximum Collector Cut-off Current;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

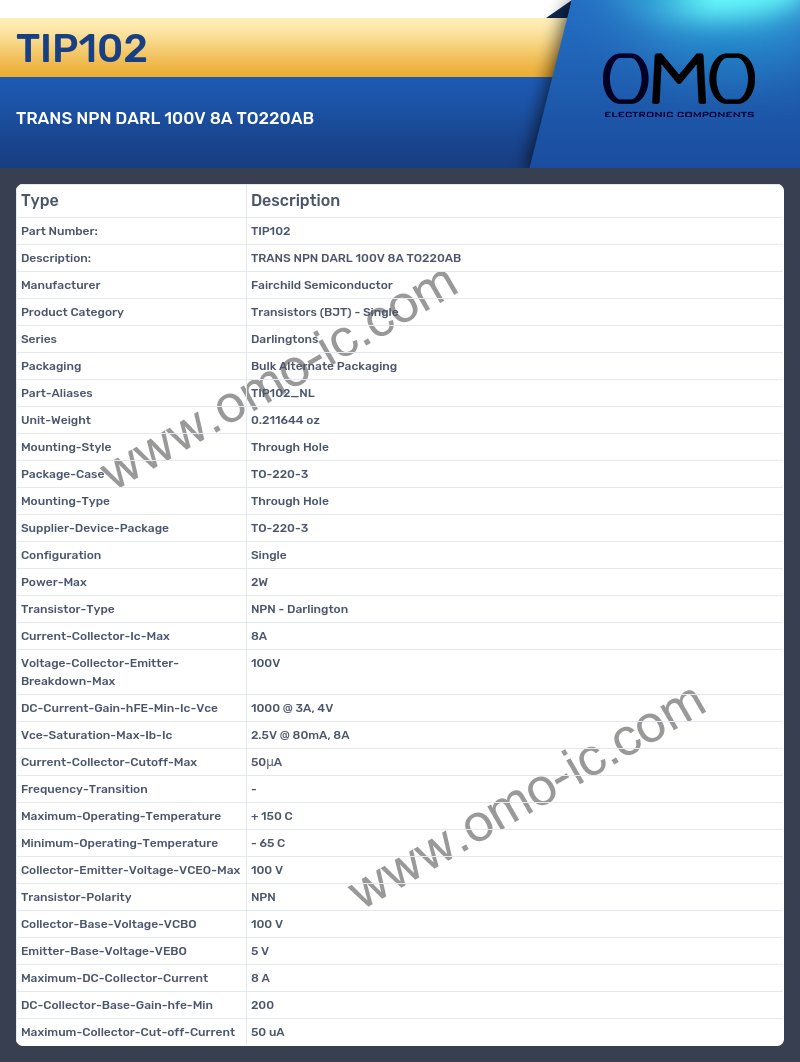

TIP102 Specifications
A: At what frequency does the Series?
Q: The product Series is Darlingtons.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Bulk Alternate Packaging
A: Is the cutoff frequency of the product Part-Aliases?
Q: Yes, the product's Part-Aliases is indeed TIP102_NL
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.211644 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-220-3.
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is TO-220-3.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: At what frequency does the Transistor-Type?
Q: The product Transistor-Type is NPN - Darlington.
A: Is the cutoff frequency of the product Current-Collector-Ic-Max?
Q: Yes, the product's Current-Collector-Ic-Max is indeed 8A
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 100V
A: At what frequency does the DC-Current-Gain-hFE-Min-Ic-Vce?
Q: The product DC-Current-Gain-hFE-Min-Ic-Vce is 1000 @ 3A, 4V.
A: What is the Vce-Saturation-Max-Ib-Ic of the product?
Q: The Vce-Saturation-Max-Ib-Ic of the product is 2.5V @ 80mA, 8A.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 65 C.
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 100 V.
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is NPN.
A: Is the cutoff frequency of the product Collector-Base-Voltage-VCBO?
Q: Yes, the product's Collector-Base-Voltage-VCBO is indeed 100 V
A: At what frequency does the Emitter-Base-Voltage-VEBO?
Q: The product Emitter-Base-Voltage-VEBO is 5 V.
A: What is the Maximum-DC-Collector-Current of the product?
Q: The Maximum-DC-Collector-Current of the product is 8 A.
A: Is the cutoff frequency of the product DC-Collector-Base-Gain-hfe-Min?
Q: Yes, the product's DC-Collector-Base-Gain-hfe-Min is indeed 200
A: What is the Maximum-Collector-Cut-off-Current of the product?
Q: The Maximum-Collector-Cut-off-Current of the product is 50 uA.
