TIP2955

TIP2955 Overview

Product belongs to the 500V Transistors series. Tube is the packaging method for this product Weight of 0.229281 oz Through Hole Mounting-Style TO-247 Configuration Single Power-off control: 90 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 60 V The transistor polarity is PNP. Saturation voltage between collector and emitter is 1 V The 100 V voltage rating is 40 V. Max DC collector current: 15 A Gain-Bandwidth-Product: 3 MHz This product is capable of handling a 15 A continuous collector current. Minimum hfe for DC collector-base gain is 20. 70 of 605.

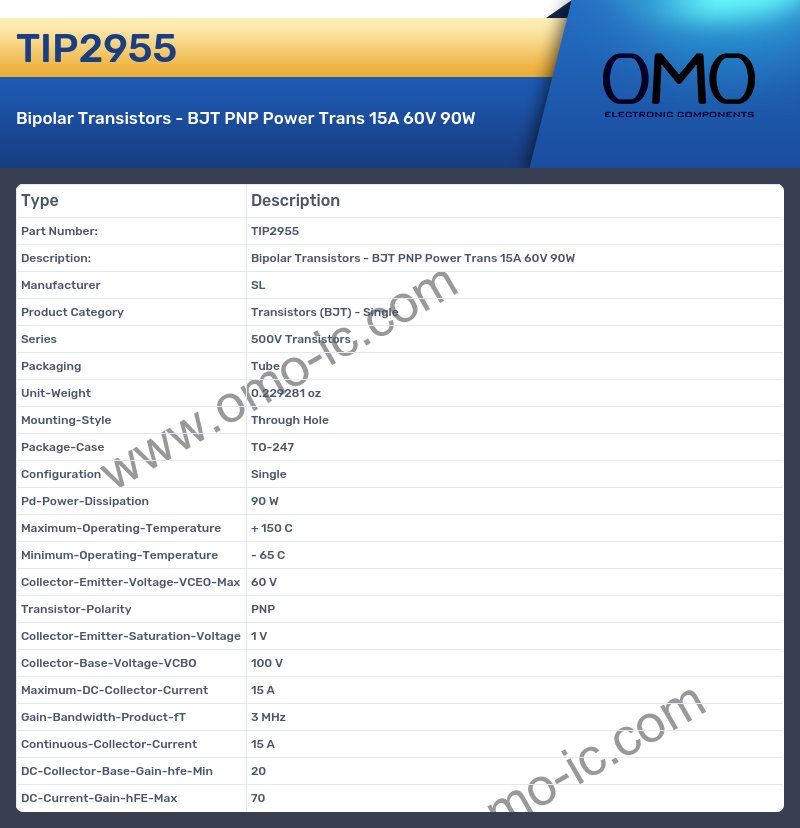

TIP2955 Image

TIP2955 Specifications

• Manufacturer SL
• Product Category Transistors (BJT) - Single
• Series 500V Transistors
• Packaging Tube
• Unit-Weight 0.229281 oz
• Mounting-Style Through Hole
• Package-Case TO-247
• Configuration Single
• Pd-Power-Dissipation 90 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 60 V
• Transistor-Polarity PNP
• Collector-Emitter-Saturation-Voltage 1 V
• Collector-Base-Voltage-VCBO 100 V
• Maximum-DC-Collector-Current 15 A
• Gain-Bandwidth-Product-fT 3 MHz
• Continuous-Collector-Current 15 A
• DC-Collector-Base-Gain-hfe-Min 20
• DC-Current-Gain-hFE-Max 70
