TL494CDRE4

TL494CDRE4 Overview

Product belongs to the TL494 series. This product is categorized as Switching Controllers Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: 0°C ~ 70°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Down, Step-Up/Step-Down. Supplier device package: 16-SOIC Number-of-Outputs: 2 Topology: Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull feedback Supply Voltage: 7 V ~ 40 V This product features 'Frequency-Switching' at 1kHz ~ 300kHz for optimal performance. The Control-Features include Dead Time Control, Frequency Control function. The Positive. Output-Phases: 1 Maximum duty cycle of 45 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Power-off control: No The product's Isolated is non-isolated. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 40 V supply voltage for reliable performance. Output voltage: 40 V 9 mA is 92 nA. Output current: 200 mA Switching frequency is 300 kHz This product has a 40 ns of 16 ns. This product has a 100 ns of 16 ns.

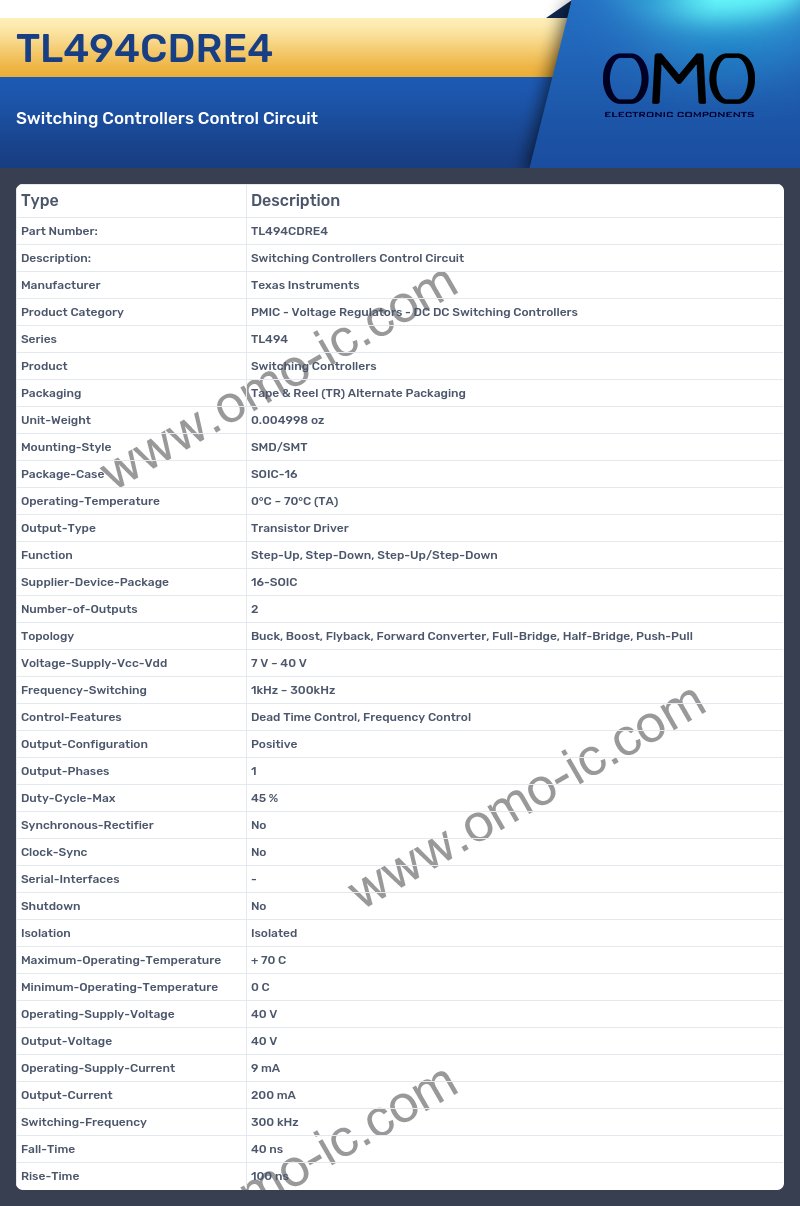

TL494CDRE4 Image

TL494CDRE4 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series TL494
• Product Switching Controllers
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004998 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature 0°C ~ 70°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Down, Step-Up/Step-Down
• Supplier-Device-Package 16-SOIC
• Number-of-Outputs 2
• Topology Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
• Voltage-Supply-Vcc-Vdd 7 V ~ 40 V
• Frequency-Switching 1kHz ~ 300kHz
• Control-Features Dead Time Control, Frequency Control
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 45 %
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
• Shutdown No
• Isolation Isolated
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 40 V
• Output-Voltage 40 V
• Operating-Supply-Current 9 mA
• Output-Current 200 mA
• Switching-Frequency 300 kHz
• Fall-Time 40 ns
• Rise-Time 100 ns
