TLC0834CD

TLC0834CD Overview

Product belongs to the TLC0834 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.004706 oz SMD/SMT Mounting-Style SOIC-14 The Differential, Pseudo-Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Number of channels: 4 Channel Supplier device package: 14-SOIC This product's 20k. Data-Interface: SPI 8 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration MUX-ADC The architecture of this product is SAR . External is the reference type. 1 units Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Serial interface type Number-of-Converters: 1 Converter 20 kS/s Sampling Rate Analog supply voltage: 5 V Digital Supply Voltage: 4.5 V to 5.5 V Integral Nonlinearity: +/- 0.4 LSB Differential nonlinearity: +/- 0.4 LSB

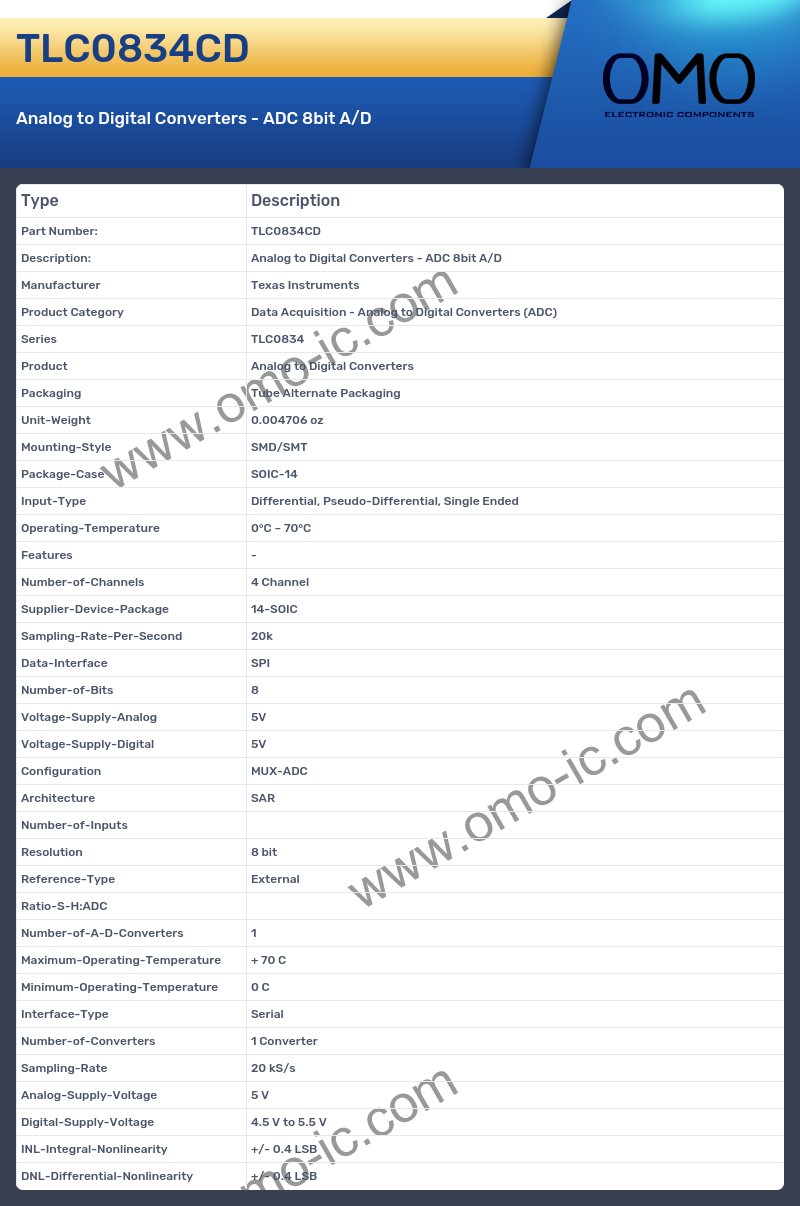

TLC0834CD Image

TLC0834CD Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series TLC0834
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004706 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Input-Type Differential, Pseudo-Differential, Single Ended
• Operating-Temperature 0°C ~ 70°C
• Features -
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-SOIC
• Sampling-Rate-Per-Second 20k
• Data-Interface SPI
• Number-of-Bits 8
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration MUX-ADC
• Architecture SAR
• Number-of-Inputs
• Resolution 8 bit
• Reference-Type External
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Serial
• Number-of-Converters 1 Converter
• Sampling-Rate 20 kS/s
• Analog-Supply-Voltage 5 V
• Digital-Supply-Voltage 4.5 V to 5.5 V
• INL-Integral-Nonlinearity +/- 0.4 LSB
• DNL-Differential-Nonlinearity +/- 0.4 LSB
