TLC3548CDW

TLC3548CDW Overview

Product belongs to the TLC3548 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.022025 oz SMD/SMT Mounting-Style SOIC-24 The Pseudo-Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Number of channels: 8 Channel Supplier device package: 24-SOIC This product's 200k. Data-Interface: SPI 14 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Serial 3-Wire SPI interface type Signal-to-Noise Ratio of 81 dB The TLC3548EVM. Number-of-Converters: 1 Converter 200 kS/s Sampling Rate Analog supply voltage: 5 V Digital Supply Voltage: 2.7 V to 5.5 V Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 1 LSB

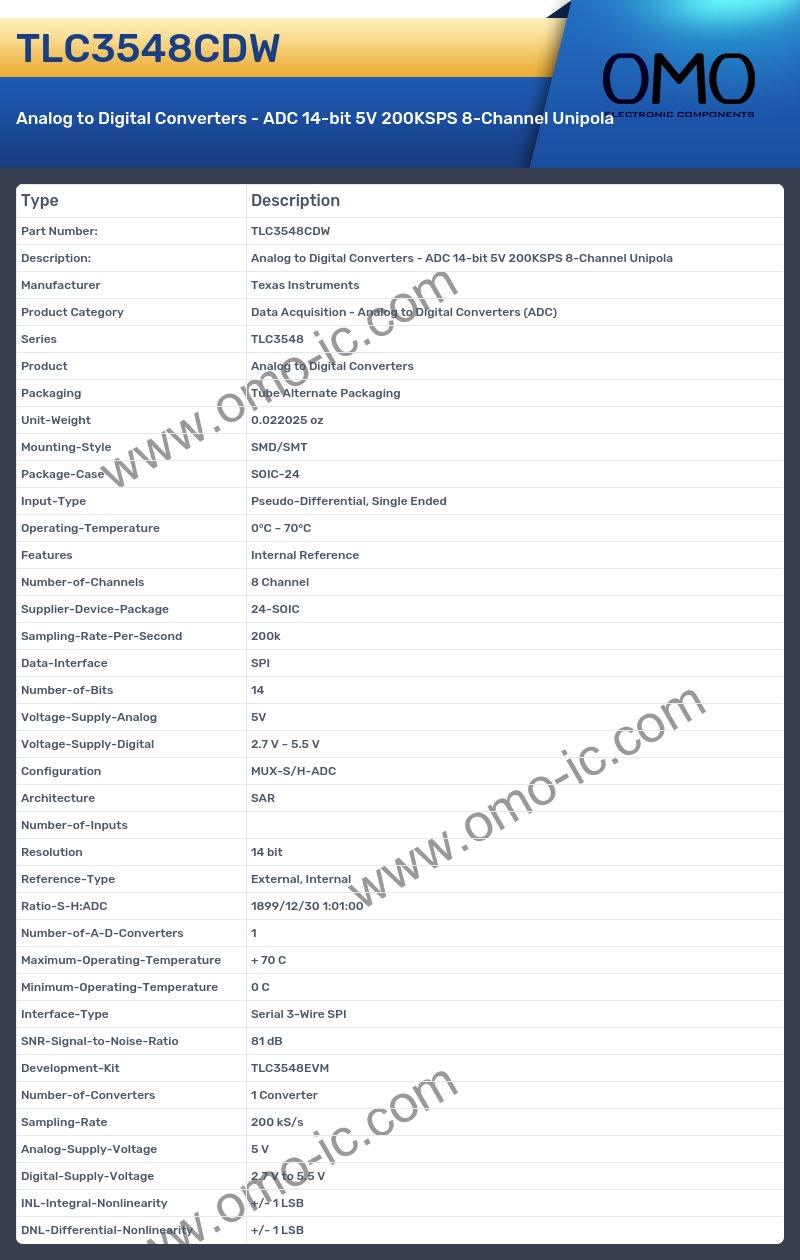

TLC3548CDW Image

TLC3548CDW Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series TLC3548
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.022025 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-24
• Input-Type Pseudo-Differential, Single Ended
• Operating-Temperature 0°C ~ 70°C
• Features Internal Reference
• Number-of-Channels 8 Channel
• Supplier-Device-Package 24-SOIC
• Sampling-Rate-Per-Second 200k
• Data-Interface SPI
• Number-of-Bits 14
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs
• Resolution 14 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Serial 3-Wire SPI
• SNR-Signal-to-Noise-Ratio 81 dB
• Development-Kit TLC3548EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 200 kS/s
• Analog-Supply-Voltage 5 V
• Digital-Supply-Voltage 2.7 V to 5.5 V
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
