TLC3702MDREP Overview

Product belongs to the LinCMOS series. This product is categorized as Analog Comparators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Output-Type: CMOS, Push-Pull, TTL Number of channels: 2 Channel Supplier device package: 8-SOIC Voltage supply range: 4 V ~ 16 V 2 element 90μA maximum quiescent current. Maximum propagation delay: 4.5μs Hysteresis value of - 2.7 us response time Power-off control: No Shutdown Power-off control: 725 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C 40 uA is 92 nA. This product is also known as V62/03643-01XE and can be referred to by either part number. Maximum supply voltage of 16 V Minimum supply voltage is 4 V General Purpose comparator type Input bias current of 30 nA The 5 mV. 8 mA

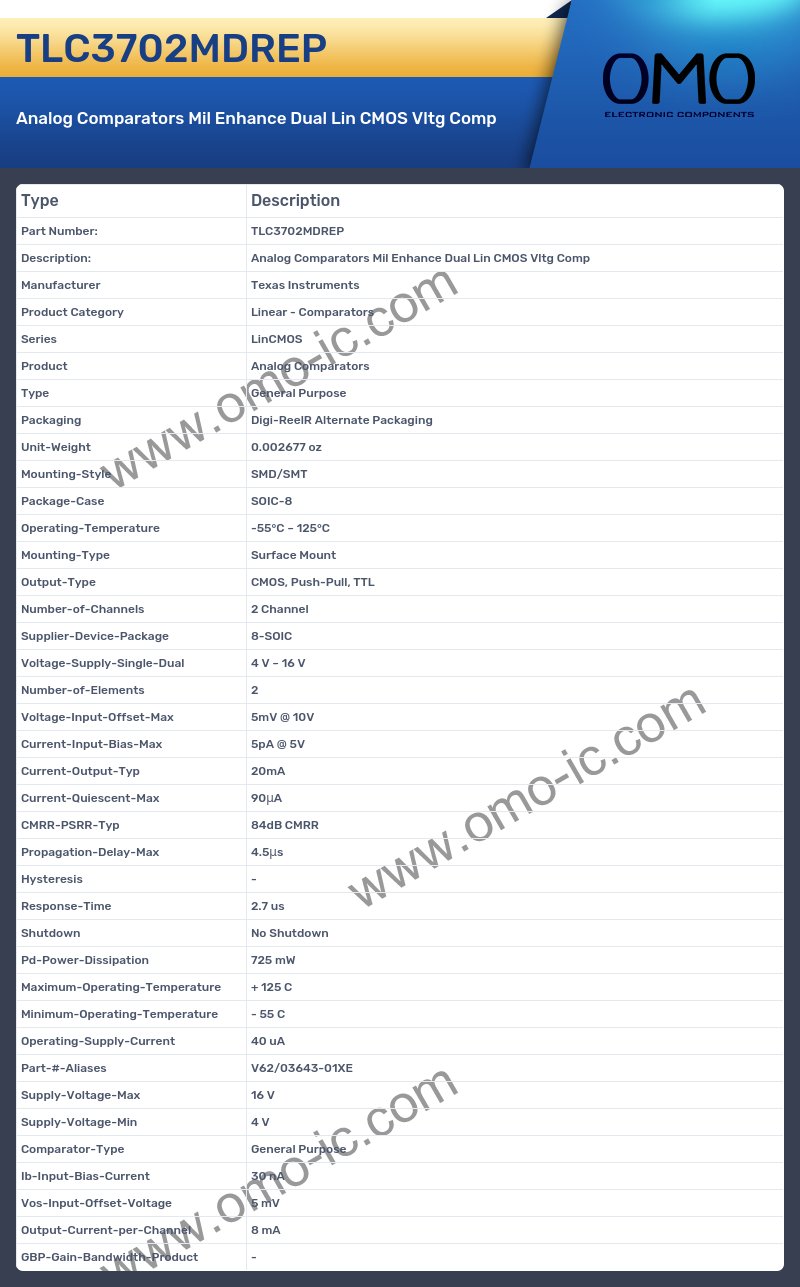

TLC3702MDREP Image

TLC3702MDREP Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series LinCMOS
• Product Analog Comparators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type CMOS, Push-Pull, TTL
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-SOIC
• Voltage-Supply-Single-Dual 4 V ~ 16 V
• Number-of-Elements 2
• Voltage-Input-Offset-Max 5mV @ 10V
• Current-Input-Bias-Max 5pA @ 5V
• Current-Output-Typ 20mA
• Current-Quiescent-Max 90μA
• CMRR-PSRR-Typ 84dB CMRR
• Propagation-Delay-Max 4.5μs
• Hysteresis -
• Response-Time 2.7 us
• Shutdown No Shutdown
• Pd-Power-Dissipation 725 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Current 40 uA
• Part-#-Aliases V62/03643-01XE
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 4 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 30 nA
• Vos-Input-Offset-Voltage 5 mV
• Output-Current-per-Channel 8 mA
• GBP-Gain-Bandwidth-Product -
