TLC7135CDW

TLC7135CDW Overview

Product belongs to the TLC7135 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.025778 oz SMD/SMT Mounting-Style SOIC-28 Wide Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Interface: BCD Voltage Supply Range: 4 V ~ 6 V Supplier device package: 28-SOIC Configuration - This product has a 1mA of 200μA. LED, LCD display type Power-off control: 5 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 4.75 V to 5.25 V supply voltage for reliable performance. Maximum supply current: 3 mA The product features a display with 4.5 Digit accuracy for clear readings.

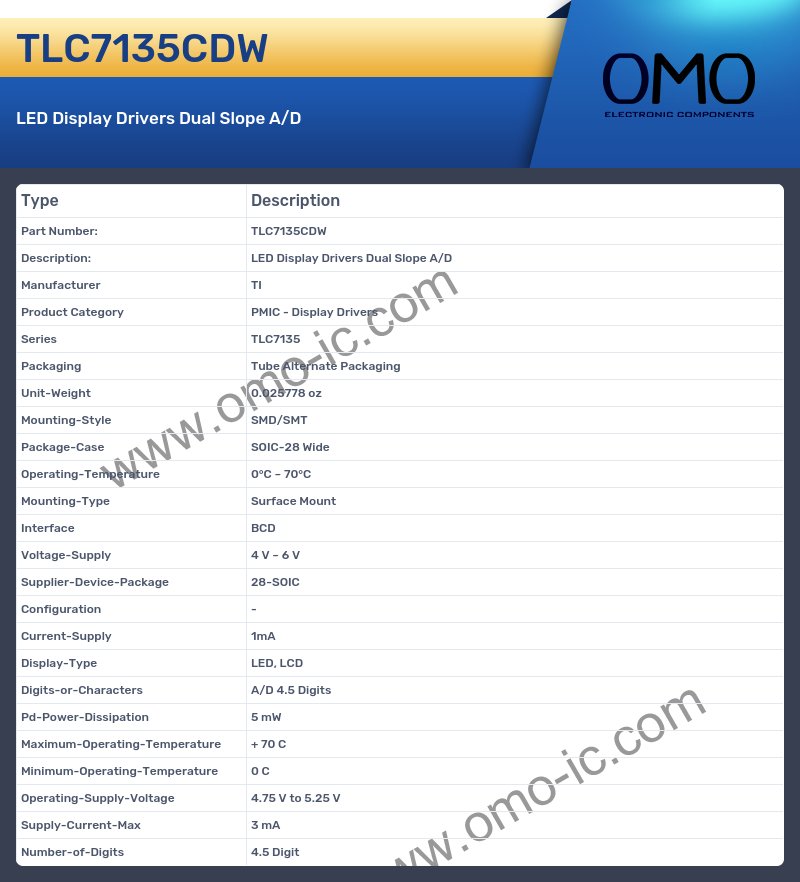

TLC7135CDW Image

TLC7135CDW Specifications

• Manufacturer TI
• Product Category PMIC - Display Drivers
• Series TLC7135
• Packaging Tube Alternate Packaging
• Unit-Weight 0.025778 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28 Wide
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Interface BCD
• Voltage-Supply 4 V ~ 6 V
• Supplier-Device-Package 28-SOIC
• Configuration -
• Current-Supply 1mA
• Display-Type LED, LCD
• Digits-or-Characters A/D 4.5 Digits
• Pd-Power-Dissipation 5 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 4.75 V to 5.25 V
• Supply-Current-Max 3 mA
• Number-of-Digits 4.5 Digit
