TLE2426CP Overview

Product belongs to the TLE2426 series. Tube is the packaging method for this product Weight of 0.015535 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: 0°C ~ 70°C (TA) Through Hole mounting type Output-Type: Adjustable Supplier device package: 8-PDIP Tolerance of ±1% 4 V ~ 40 V voltage input This product has a 400μA of 200μA. Ground Reference (Virtual) is the reference type. Minimum fixed output voltage is 2V . 35ppm/°C Typical is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: 2 V to 20 V Maximum input voltage of 40 V for Series VREF. Maximum shunt current of 20 mA

TLE2426CP Image

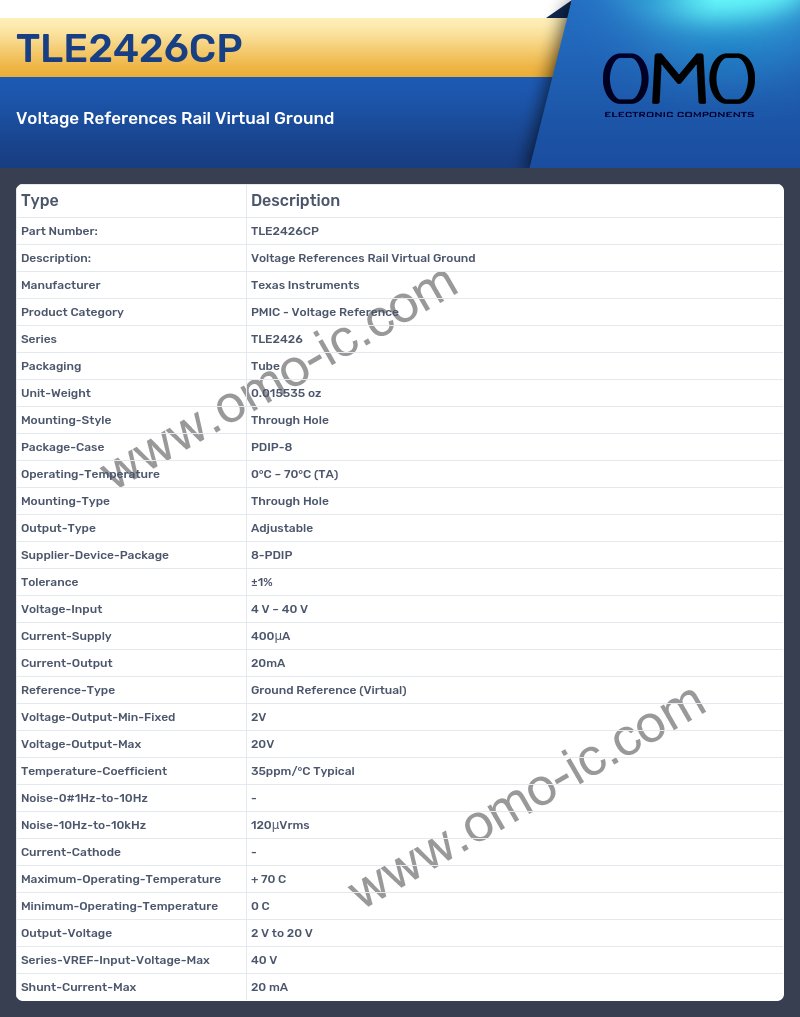

TLE2426CP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Reference
• Series TLE2426
• Packaging Tube
• Unit-Weight 0.015535 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Through Hole
• Output-Type Adjustable
• Supplier-Device-Package 8-PDIP
• Tolerance ±1%
• Voltage-Input 4 V ~ 40 V
• Current-Supply 400μA
• Current-Output 20mA
• Reference-Type Ground Reference (Virtual)
• Voltage-Output-Min-Fixed 2V
• Voltage-Output-Max 20V
• Temperature-Coefficient 35ppm/°C Typical
• Noise-0#1Hz-to-10Hz -
• Noise-10Hz-to-10kHz 120μVrms
• Current-Cathode -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Output-Voltage 2 V to 20 V
• Series-VREF-Input-Voltage-Max 40 V
• Shunt-Current-Max 20 mA
