TLV2242CD

TLV2242CD Overview

Product belongs to the TLV2242 series. This product is categorized as Operational Amplifiers Tube is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style Number of channels: 2 Channel The amplifier is of Low Power Amplifier type. Power-off control: No Shutdown Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 2.5 uA is 92 nA. Maximum supply voltage of 12 V Minimum supply voltage is 2.5 V SOIC-8 Input bias current of 550 pA The 3 mV. The 70 dB. The Negative Rail to Positive Rail. 0.2 mA The CMRR-Common-Mode-Rejection-Ratio is 60 dB. The 800 nV/sqrt Hz of this product is 110 nV/sqrt Hz. The 0.008 pA/sqrt Hz. Maximum dual supply voltage: +/- 6 V Minimum dual supply voltage of +/- 1.25 V

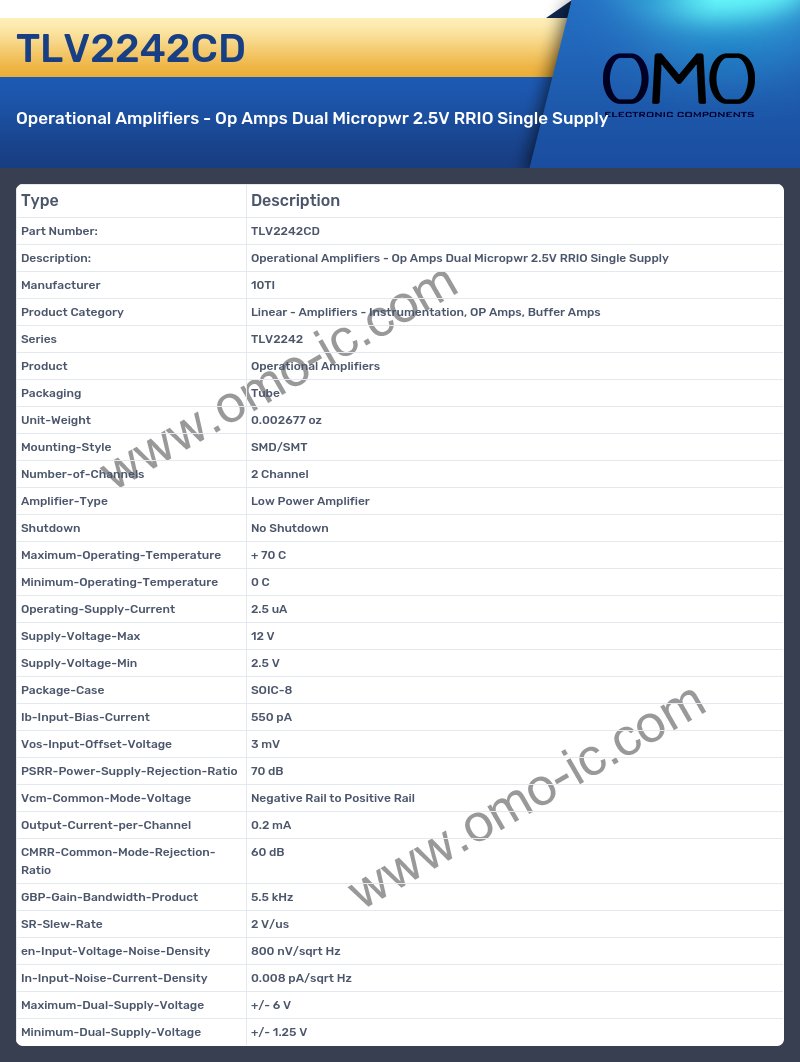

TLV2242CD Image

TLV2242CD Specifications

• Manufacturer 10TI
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series TLV2242
• Product Operational Amplifiers
• Packaging Tube
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Number-of-Channels 2 Channel
• Amplifier-Type Low Power Amplifier
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 2.5 uA
• Supply-Voltage-Max 12 V
• Supply-Voltage-Min 2.5 V
• Package-Case SOIC-8
• Ib-Input-Bias-Current 550 pA
• Vos-Input-Offset-Voltage 3 mV
• PSRR-Power-Supply-Rejection-Ratio 70 dB
• Vcm-Common-Mode-Voltage Negative Rail to Positive Rail
• Output-Current-per-Channel 0.2 mA
• CMRR-Common-Mode-Rejection-Ratio 60 dB
• GBP-Gain-Bandwidth-Product 5.5 kHz
• SR-Slew-Rate 2 V/us
• en-Input-Voltage-Noise-Density 800 nV/sqrt Hz
• In-Input-Noise-Current-Density 0.008 pA/sqrt Hz
• Maximum-Dual-Supply-Voltage +/- 6 V
• Minimum-Dual-Supply-Voltage +/- 1.25 V
