TLV3702CD

TLV3702CD Overview

Product belongs to the TLV3702 series. This product is categorized as Analog Comparators Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: CMOS, Push-Pull, Rail-to-Rail Number of channels: 2 Channel Supplier device package: 8-SOIC Voltage supply range: 2.5 V ~ 16 V, ±1.25 V ~ 8 V 2 element 1μA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 36 us response time Power-off control: No Shutdown Power-off control: 710 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 800 nA is 92 nA. Maximum supply voltage of 16 V Minimum supply voltage is 2.5 V General Purpose comparator type Input bias current of 250 pA The 5 mV. The 105 dB. The - 0.1 V to 21 V. The CMRR-Common-Mode-Rejection-Ratio is 88 dB.

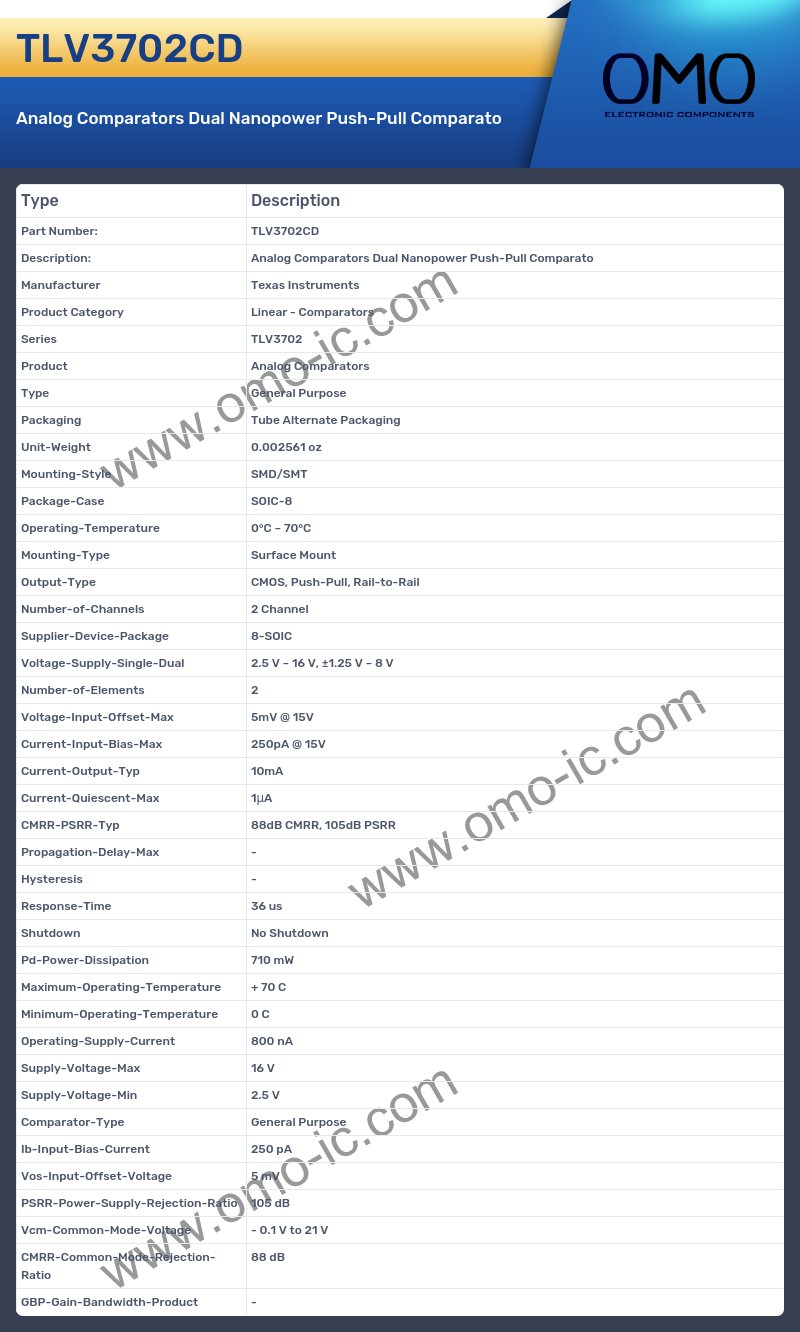

TLV3702CD Image

TLV3702CD Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series TLV3702
• Product Analog Comparators
• Type General Purpose
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type CMOS, Push-Pull, Rail-to-Rail
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-SOIC
• Voltage-Supply-Single-Dual 2.5 V ~ 16 V, ±1.25 V ~ 8 V
• Number-of-Elements 2
• Voltage-Input-Offset-Max 5mV @ 15V
• Current-Input-Bias-Max 250pA @ 15V
• Current-Output-Typ 10mA
• Current-Quiescent-Max 1μA
• CMRR-PSRR-Typ 88dB CMRR, 105dB PSRR
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 36 us
• Shutdown No Shutdown
• Pd-Power-Dissipation 710 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 800 nA
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 2.5 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 250 pA
• Vos-Input-Offset-Voltage 5 mV
• PSRR-Power-Supply-Rejection-Ratio 105 dB
• Vcm-Common-Mode-Voltage - 0.1 V to 21 V
• CMRR-Common-Mode-Rejection-Ratio 88 dB
• GBP-Gain-Bandwidth-Product -
