TLVH431BIL5T

TLVH431BIL5T Overview

Product belongs to the TLVH431 series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SOT-23-5L Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Adjustable Supplier device package: SOT-23-5 Tolerance of ±0.25% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 1.24V . 100ppm/°C is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.24 V to 18 V Initial accuracy: 0.25 % Maximum shunt current of 60 mA Maximum output voltage is 18 V . This product has a minimum 100 uA of 50 uA.

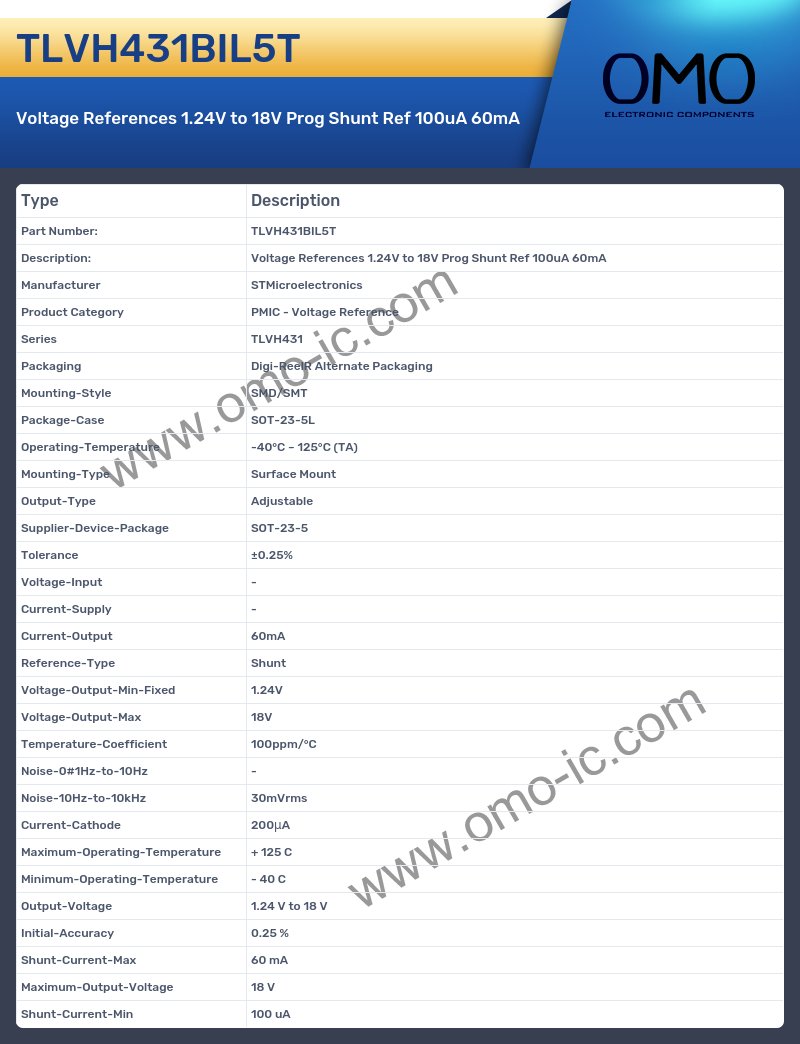

TLVH431BIL5T Image

TLVH431BIL5T Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Reference
• Series TLVH431
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5L
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package SOT-23-5
• Tolerance ±0.25%
• Voltage-Input -
• Current-Supply -
• Current-Output 60mA
• Reference-Type Shunt
• Voltage-Output-Min-Fixed 1.24V
• Voltage-Output-Max 18V
• Temperature-Coefficient 100ppm/°C
• Noise-0#1Hz-to-10Hz -
• Noise-10Hz-to-10kHz 30mVrms
• Current-Cathode 200μA
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.24 V to 18 V
• Initial-Accuracy 0.25 %
• Shunt-Current-Max 60 mA
• Maximum-Output-Voltage 18 V
• Shunt-Current-Min 100 uA
