TPD4E001DRLR

TPD4E001DRLR Overview

Product belongs to the TPD4E001 series. Type: Steering (Rail to Rail) Digi-ReelR Alternate Packaging is the packaging method for this product The HPA00782DRLR is listed as a Part-Aliase. Weight of 0.000099 oz This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. SOT-563, SOT-666 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Versatile Ethernet applications for maximum usability Number of channels: 4 Channel Supplier device package: 6-SOT 4 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 5.5V (Max). The Voltage-Breakdown-Min is 11V. Yes Power-Line-Protection - Capacitance-Frequency Power-off control: 100 W Maximum operating temperature of + 150 C Breakdown-Voltage: 11 V Clamping-Voltage: 16 V The Cd-Diode-Capacitance is 1.5 pF 5.5 V working voltage Polarity: Unidirectional 5.5 A of IPP, Peak Pulse, and Current 8 kV of Vesd-Voltage-ESD-Contact 15 kV Vesd-Voltage-ESD-Air-Gap This product operates at a 0.9 V to 5.5 V supply voltage for reliable performance.

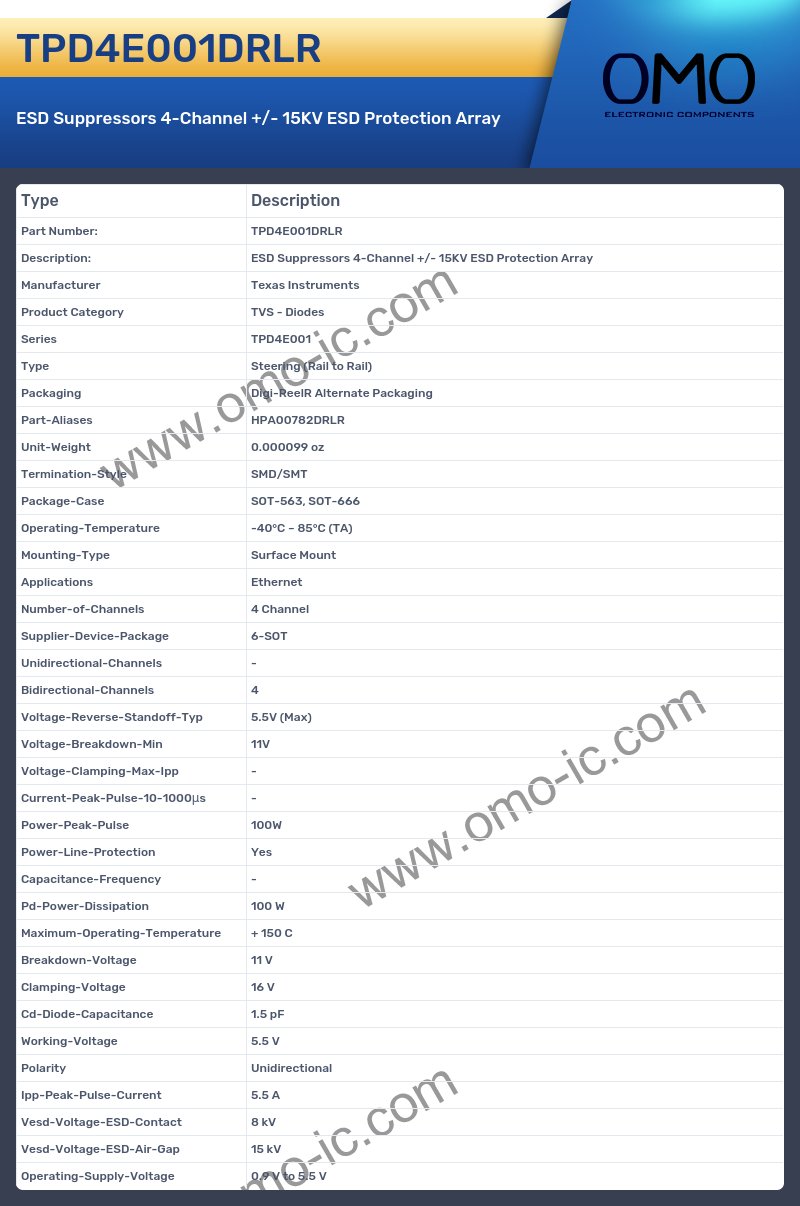

TPD4E001DRLR Image

TPD4E001DRLR Specifications

• Manufacturer Texas Instruments
• Product Category TVS - Diodes
• Series TPD4E001
• Type Steering (Rail to Rail)
• Packaging Digi-ReelR Alternate Packaging
• Part-Aliases HPA00782DRLR
• Unit-Weight 0.000099 oz
• Termination-Style SMD/SMT
• Package-Case SOT-563, SOT-666
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Applications Ethernet
• Number-of-Channels 4 Channel
• Supplier-Device-Package 6-SOT
• Unidirectional-Channels -
• Bidirectional-Channels 4
• Voltage-Reverse-Standoff-Typ 5.5V (Max)
• Voltage-Breakdown-Min 11V
• Voltage-Clamping-Max-Ipp -
• Current-Peak-Pulse-10-1000μs -
• Power-Peak-Pulse 100W
• Power-Line-Protection Yes
• Capacitance-Frequency -
• Pd-Power-Dissipation 100 W
• Maximum-Operating-Temperature + 150 C
• Breakdown-Voltage 11 V
• Clamping-Voltage 16 V
• Cd-Diode-Capacitance 1.5 pF
• Working-Voltage 5.5 V
• Polarity Unidirectional
• Ipp-Peak-Pulse-Current 5.5 A
• Vesd-Voltage-ESD-Contact 8 kV
• Vesd-Voltage-ESD-Air-Gap 15 kV
• Operating-Supply-Voltage 0.9 V to 5.5 V
