TPS2080D

TPS2080D Overview

Product belongs to the TPS2080 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: 0°C ~ 125°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 8-SOIC The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 2 Supply Voltage: Not Required The High Side. The 80 mOhm. Voltage-Load range is 2.7 V ~ 5.5 V. Our product delivers a 500mA of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: 725 mW Maximum operating temperature of + 85 C Minimum operating temperature: 0 C This product operates at a 2.7 V to 5.5 V supply voltage for reliable performance. Output current: 500 mA The TPS2080EVM. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Max on-resistance of 80 mOhms Maximum off time: 40 ms This product's 700 mA feature is adjustable. Maximum on-time: 20 ms

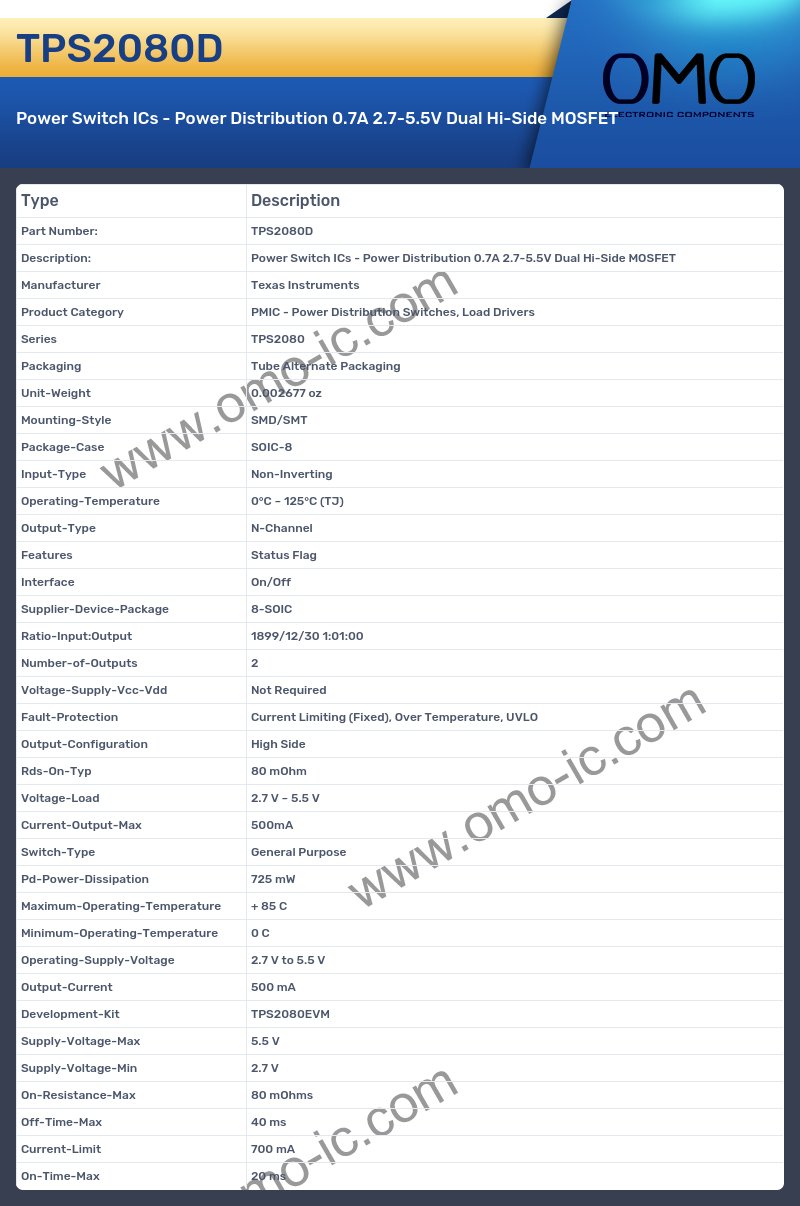

TPS2080D Image

TPS2080D Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series TPS2080
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Input-Type Non-Inverting
• Operating-Temperature 0°C ~ 125°C (TJ)
• Output-Type N-Channel
• Features Status Flag
• Interface On/Off
• Supplier-Device-Package 8-SOIC
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 2
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature, UVLO
• Output-Configuration High Side
• Rds-On-Typ 80 mOhm
• Voltage-Load 2.7 V ~ 5.5 V
• Current-Output-Max 500mA
• Switch-Type General Purpose
• Pd-Power-Dissipation 725 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 2.7 V to 5.5 V
• Output-Current 500 mA
• Development-Kit TPS2080EVM
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• On-Resistance-Max 80 mOhms
• Off-Time-Max 40 ms
• Current-Limit 700 mA
• On-Time-Max 20 ms
