TPS2500DRCT

TPS2500DRCT Overview

Product belongs to the TPS2500 series. This product is categorized as USB Current Limited Power Switches Type: High Side Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001386 oz SMD/SMT Mounting-Style VSON-10 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: N/P-Channel Interface: Logic Supplier device package: 10-VSON (3x3) The Ratio-Input:Output for this product is 1899/12/30 1:02:00. Number-of-Outputs: 2 Supply Voltage: Not Required The High Side or Low Side. The 80 mOhm. Voltage-Load range is 1.8 V ~ 5.25 V. Our product delivers a 1.4A of 50mA for efficient power management. The Switch-Type is USB Switch. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 5.25 V supply voltage for reliable performance. Output current: 1.4 A The TPS2500EVM-337. Maximum supply voltage of 5.25 V Minimum supply voltage is 1.8 V Max on-resistance of 185 mOhms Maximum off time: 10 ms This product's 0.13 A to 1.4 A feature is adjustable. Maximum on-time: 85 ns

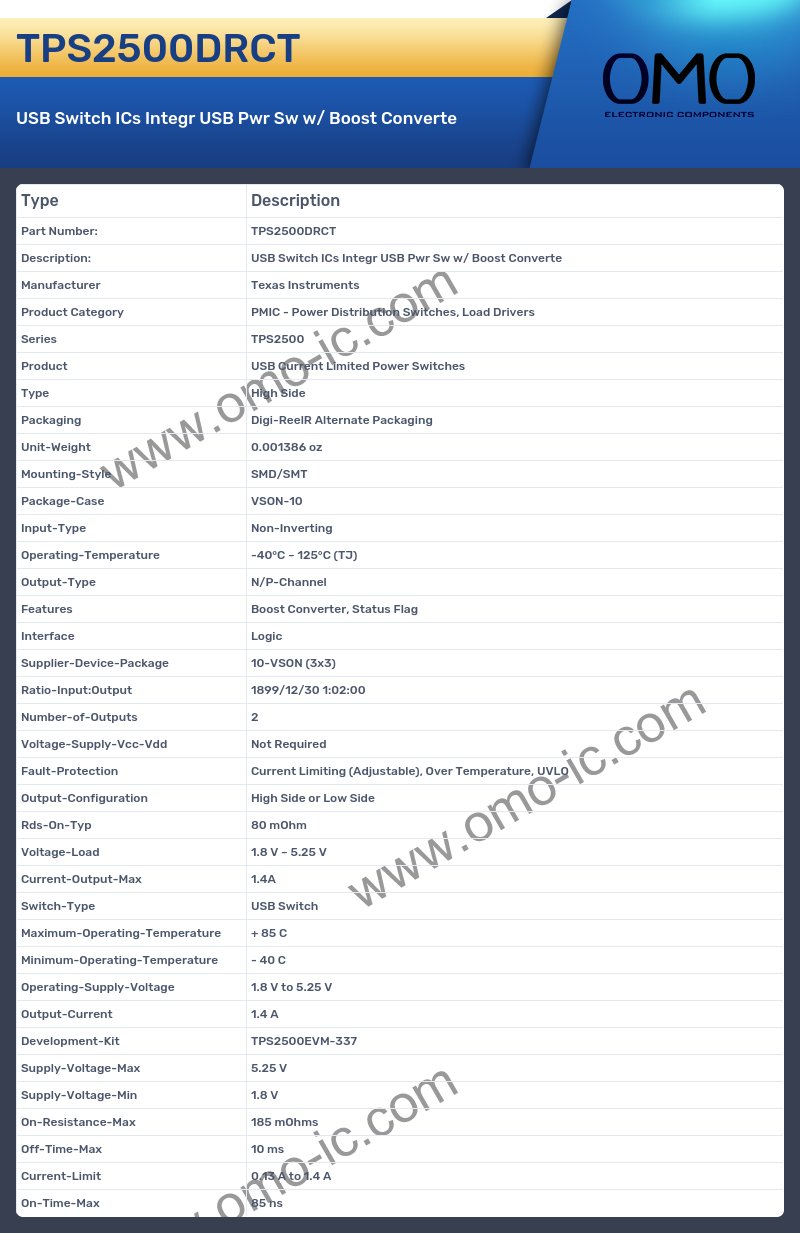

TPS2500DRCT Image

TPS2500DRCT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series TPS2500
• Product USB Current Limited Power Switches
• Type High Side
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001386 oz
• Mounting-Style SMD/SMT
• Package-Case VSON-10
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type N/P-Channel
• Features Boost Converter, Status Flag
• Interface Logic
• Supplier-Device-Package 10-VSON (3x3)
• Ratio-Input:Output 1899/12/30 1:02:00
• Number-of-Outputs 2
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Adjustable), Over Temperature, UVLO
• Output-Configuration High Side or Low Side
• Rds-On-Typ 80 mOhm
• Voltage-Load 1.8 V ~ 5.25 V
• Current-Output-Max 1.4A
• Switch-Type USB Switch
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 5.25 V
• Output-Current 1.4 A
• Development-Kit TPS2500EVM-337
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 1.8 V
• On-Resistance-Max 185 mOhms
• Off-Time-Max 10 ms
• Current-Limit 0.13 A to 1.4 A
• On-Time-Max 85 ns
