TPS2813DR

TPS2813DR Overview

Product belongs to the TPS2813 series. This product is categorized as MOSFET Gate Drivers Type: MOSFET Driver Reel is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style Configuration Complementary Number-of-Outputs: 2 Power-off control: 730 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 5 mA is 92 nA. Output current: 2 A This product has a 15 ns of 16 ns. This product has a 14 ns of 16 ns. Maximum supply voltage of 14 V Minimum supply voltage is 4 V SOIC-8 Number-of-Drivers: 2 Driver

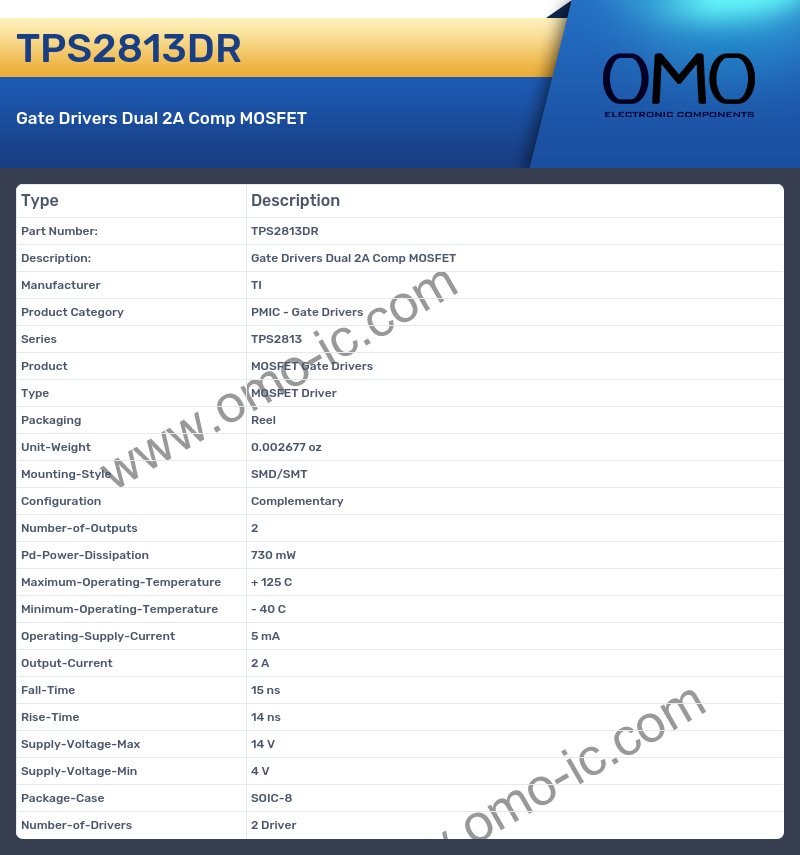

TPS2813DR Image

TPS2813DR Specifications

• Manufacturer TI
• Product Category PMIC - Gate Drivers
• Series TPS2813
• Product MOSFET Gate Drivers
• Type MOSFET Driver
• Packaging Reel
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Configuration Complementary
• Number-of-Outputs 2
• Pd-Power-Dissipation 730 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 5 mA
• Output-Current 2 A
• Fall-Time 15 ns
• Rise-Time 14 ns
• Supply-Voltage-Max 14 V
• Supply-Voltage-Min 4 V
• Package-Case SOIC-8
• Number-of-Drivers 2 Driver
