TPS3106E09DBVR

TPS3106E09DBVR Overview

Product belongs to the TPS3106E09 series. Type: Simple Reset/Power-On Reset Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.000473 oz SMD/SMT Mounting-Style SOT-23-6 Operational temperature range: -40°C ~ 85°C (TJ) Surface Mount mounting type Output-Type: Open Drain Supplier device package: SOT-23-6 The Open Drain or Open Collector. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 65 ms Minimum. This product's 0.86V. Power-off control: 437 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 1.2 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 3.3 V Minimum supply voltage is 0.4 V This product includes No Watchdog This product's 0.86 V is 2.32 V. This product can only 2 Input at a time. This product features a Manual Reset function that allows for manual reset. The product's 130 ms is 200 ms. The 0.866 V is 2.35 V. 0.854 V is set to 2.29 V.

TPS3106E09DBVR Image

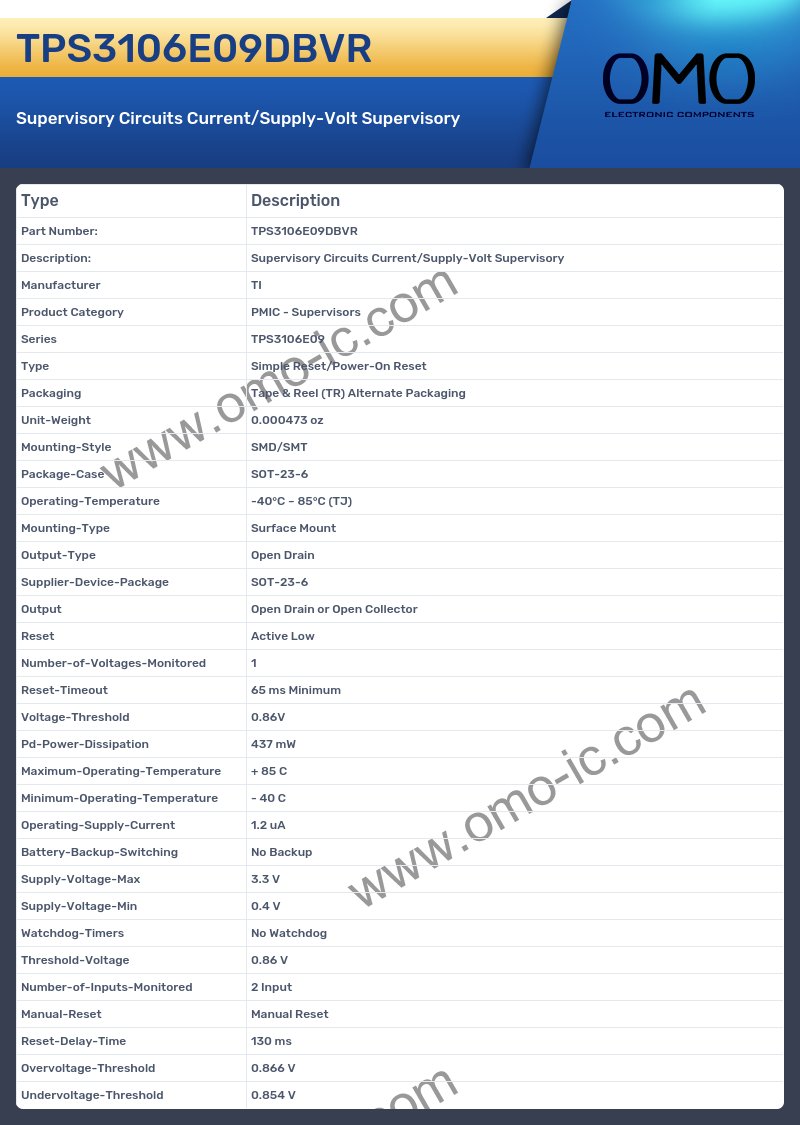

TPS3106E09DBVR Specifications

• Manufacturer TI
• Product Category PMIC - Supervisors
• Series TPS3106E09
• Type Simple Reset/Power-On Reset
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.000473 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-6
• Operating-Temperature -40°C ~ 85°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Open Drain
• Supplier-Device-Package SOT-23-6
• Output Open Drain or Open Collector
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 65 ms Minimum
• Voltage-Threshold 0.86V
• Pd-Power-Dissipation 437 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 1.2 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 3.3 V
• Supply-Voltage-Min 0.4 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 0.86 V
• Number-of-Inputs-Monitored 2 Input
• Manual-Reset Manual Reset
• Reset-Delay-Time 130 ms
• Overvoltage-Threshold 0.866 V
• Undervoltage-Threshold 0.854 V
