TPS3702AX18DDCT

TPS3702AX18DDCT Overview

Product belongs to the TPS3702 series. Type: Voltage Detector Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001270 oz SMD/SMT Mounting-Style SOT-23-6 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Active Low Open Drain Supplier device package: SOT-6 The Open Drain or Open Collector. This product's Active Low. Accuracy is rated at 0.25 % . This product has 1 monitored voltages. The reset timeout for this product is -. This product's 1.8V. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 7 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 18 V Minimum supply voltage is 2 V This product includes No Watchdog This product's 1.8 V is 2.32 V. This product can only 1 Input at a time. This product features a Manual Reset function that allows for manual reset. This product does not support Chip Enable. This product does not have No capability. The 1.91 V is 2.35 V. 1.76 V is set to 2.29 V.

TPS3702AX18DDCT Image

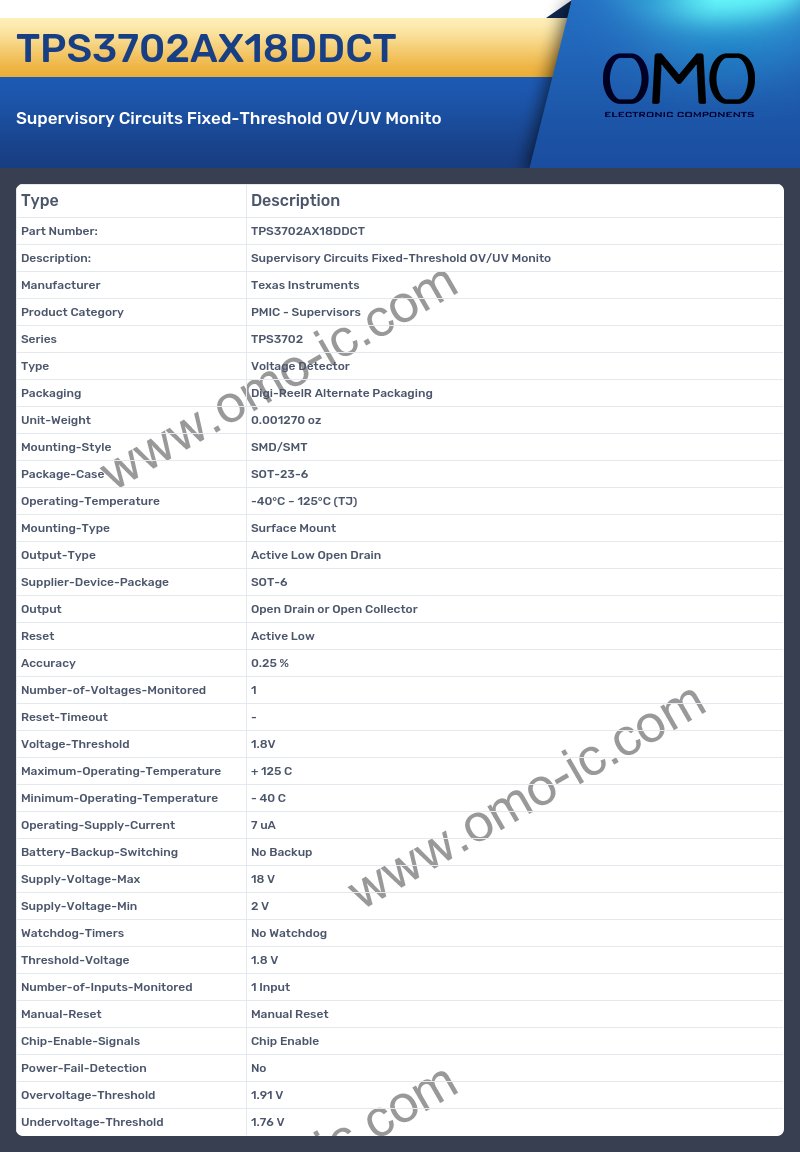

TPS3702AX18DDCT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series TPS3702
• Type Voltage Detector
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001270 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-6
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Active Low Open Drain
• Supplier-Device-Package SOT-6
• Output Open Drain or Open Collector
• Reset Active Low
• Accuracy 0.25 %
• Number-of-Voltages-Monitored 1
• Reset-Timeout -
• Voltage-Threshold 1.8V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 7 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 2 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 1.8 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset Manual Reset
• Chip-Enable-Signals Chip Enable
• Power-Fail-Detection No
• Overvoltage-Threshold 1.91 V
• Undervoltage-Threshold 1.76 V
