TPS54560QDDARQ1

TPS54560QDDARQ1 Overview

Product belongs to the Automotive, AEC-Q100, Eco-Mode series. Digi-ReelR Alternate Packaging is the packaging method for this product 8-SOIC (0.154", 3.90mm Width) Exposed Pad Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 8-SO PowerPad Number-of-Outputs: 1 Topology: Buck, Split Rail feedback This product features 'Frequency-Switching' at 100kHz ~ 2.5MHz for optimal performance. The Positive. Minimum fixed output voltage is 0.8V . The value of No is included as a product attribute. The minimum input voltage is 4.5V. The 60V.

TPS54560QDDARQ1 Image

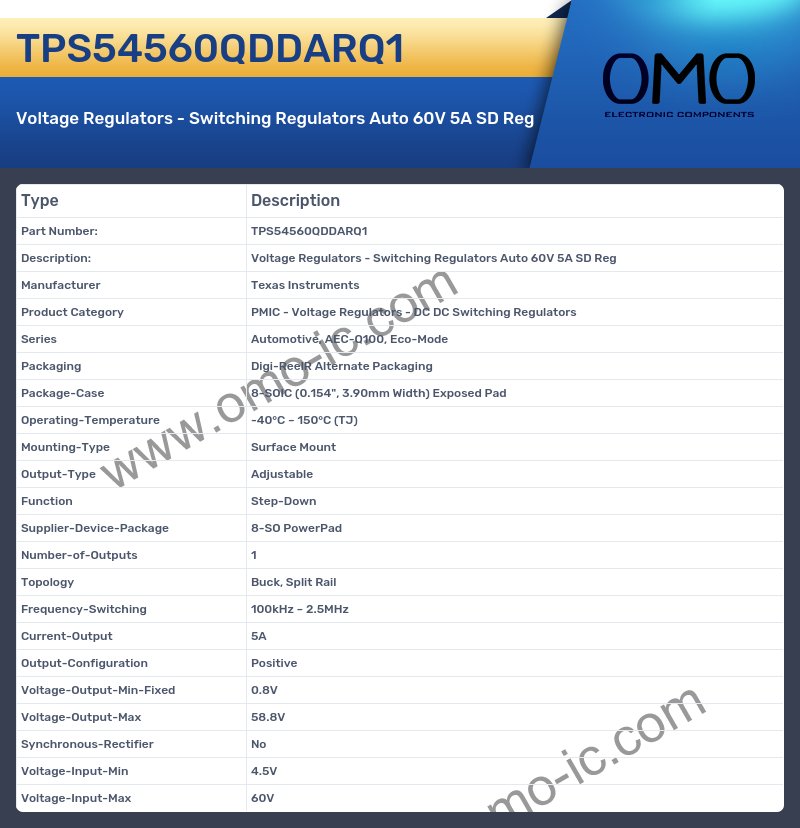

TPS54560QDDARQ1 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series Automotive, AEC-Q100, Eco-Mode
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 8-SOIC (0.154", 3.90mm Width) Exposed Pad
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 8-SO PowerPad
• Number-of-Outputs 1
• Topology Buck, Split Rail
• Frequency-Switching 100kHz ~ 2.5MHz
• Current-Output 5A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.8V
• Voltage-Output-Max 58.8V
• Synchronous-Rectifier No
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 60V
