TPS60402DBVT

TPS60402DBVT Overview

Product belongs to the TPS60402 series. Type: Charge Pump (Inductorless) Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000459 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications SOT-23-5 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Fixed Product function is Ratiometric. Supplier device package: SOT-23-5 Number-of-Outputs: 1 Topology: Charge Pump feedback This product features 'Frequency-Switching' at 50kHz for optimal performance. The Positive or Negative. Minimum fixed output voltage is -Vin, 2Vin, Vin/2 . The value of No is included as a product attribute. The minimum input voltage is 1.8V. The 5.25V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: - 1.6 V to - 5.25 V 275 uA is 92 nA. Input Voltage Range: 1.6 V to 5.5 V Maximum Input Voltage: 5.5 V Output current: 60 mA Switching frequency is 50 kHz The product's 1.6 V is 5.1 V.

TPS60402DBVT Image

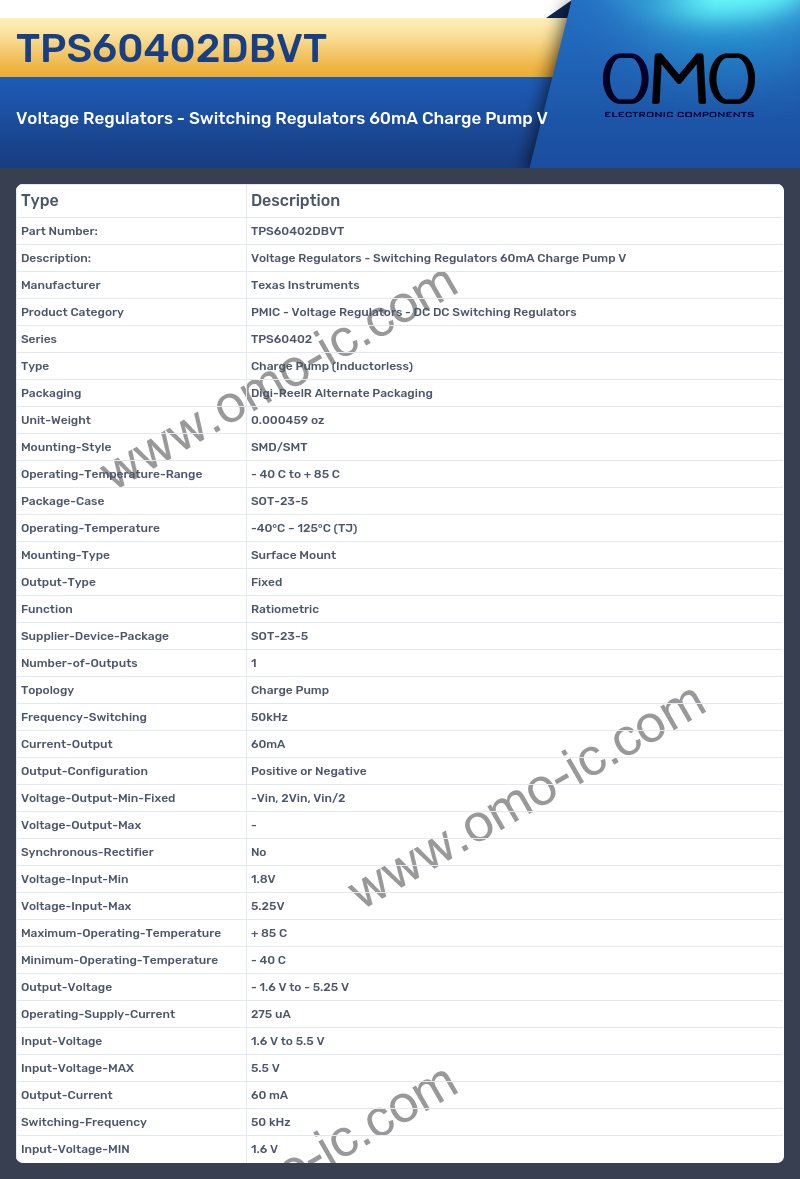

TPS60402DBVT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series TPS60402
• Type Charge Pump (Inductorless)
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000459 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Function Ratiometric
• Supplier-Device-Package SOT-23-5
• Number-of-Outputs 1
• Topology Charge Pump
• Frequency-Switching 50kHz
• Current-Output 60mA
• Output-Configuration Positive or Negative
• Voltage-Output-Min-Fixed -Vin, 2Vin, Vin/2
• Voltage-Output-Max -
• Synchronous-Rectifier No
• Voltage-Input-Min 1.8V
• Voltage-Input-Max 5.25V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage - 1.6 V to - 5.25 V
• Operating-Supply-Current 275 uA
• Input-Voltage 1.6 V to 5.5 V
• Input-Voltage-MAX 5.5 V
• Output-Current 60 mA
• Switching-Frequency 50 kHz
• Input-Voltage-MIN 1.6 V
