TPS70245PWP Overview

Product belongs to the TPS70245 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002885 oz SMD/SMT Mounting-Style HTSSOP-20 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 20-HTSSOP 2.7 V ~ 6 V voltage input Number-of-Outputs: 2 Output Output voltage: 3.3V, 1.2V Positive Fixed regulator topology The product has 2 of 1. Power-off control: 4.115 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3.3 V 1.2 V Maximum Input Voltage: 6 V Output current: 500 mA The product's + 2.7 V is 5.1 V. Load regulation is 1 mV. The voltage regulation accuracy of this product is 2 %. Input bias current of 190 uA This product has a 230 uA of 7 mA, making it ideal for low-power applications. The 0.17 V at 500 mA. The maximum 275 mV is 360 mV. This product's 0.01 % is 0.01 %/V.

TPS70245PWP Image

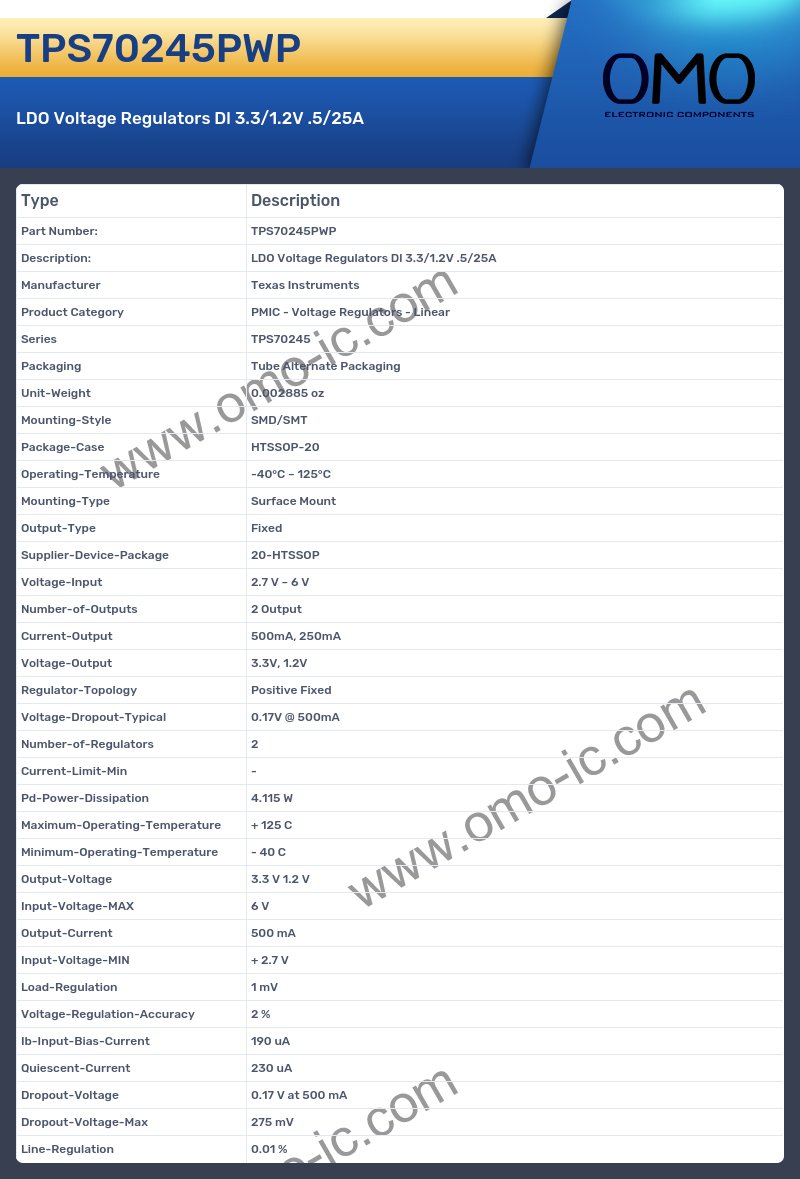

TPS70245PWP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS70245
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002885 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-20
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 20-HTSSOP
• Voltage-Input 2.7 V ~ 6 V
• Number-of-Outputs 2 Output
• Current-Output 500mA, 250mA
• Voltage-Output 3.3V, 1.2V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.17V @ 500mA
• Number-of-Regulators 2
• Current-Limit-Min -
• Pd-Power-Dissipation 4.115 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V 1.2 V
• Input-Voltage-MAX 6 V
• Output-Current 500 mA
• Input-Voltage-MIN + 2.7 V
• Load-Regulation 1 mV
• Voltage-Regulation-Accuracy 2 %
• Ib-Input-Bias-Current 190 uA
• Quiescent-Current 230 uA
• Dropout-Voltage 0.17 V at 500 mA
• Dropout-Voltage-Max 275 mV
• Line-Regulation 0.01 %
