TPS70451PWP

TPS70451PWP Overview

Product belongs to the TPS70451 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.003460 oz SMD/SMT Mounting-Style HTSSOP-24 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 24-HTSSOP 2.7 V ~ 6 V voltage input Number-of-Outputs: 2 Output Output voltage: 3.3V, 1.8V Positive Fixed regulator topology The product has 2 of 1. Power-off control: 4.115 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3.3 V 1.8 V Maximum Input Voltage: 6 V Output current: 1 A The product's 2.7 V is 5.1 V. Load regulation is 1 mV. The voltage regulation accuracy of this product is 2 %. Input bias current of 185 uA This product has a 250 uA of 7 mA, making it ideal for low-power applications. Reference voltage is 1.22 V . The 0.16 V at 1 A. The maximum 250 mV is 360 mV. This product's 0.01 % / V is 0.01 %/V. The product's 65 dB is -20 dB.

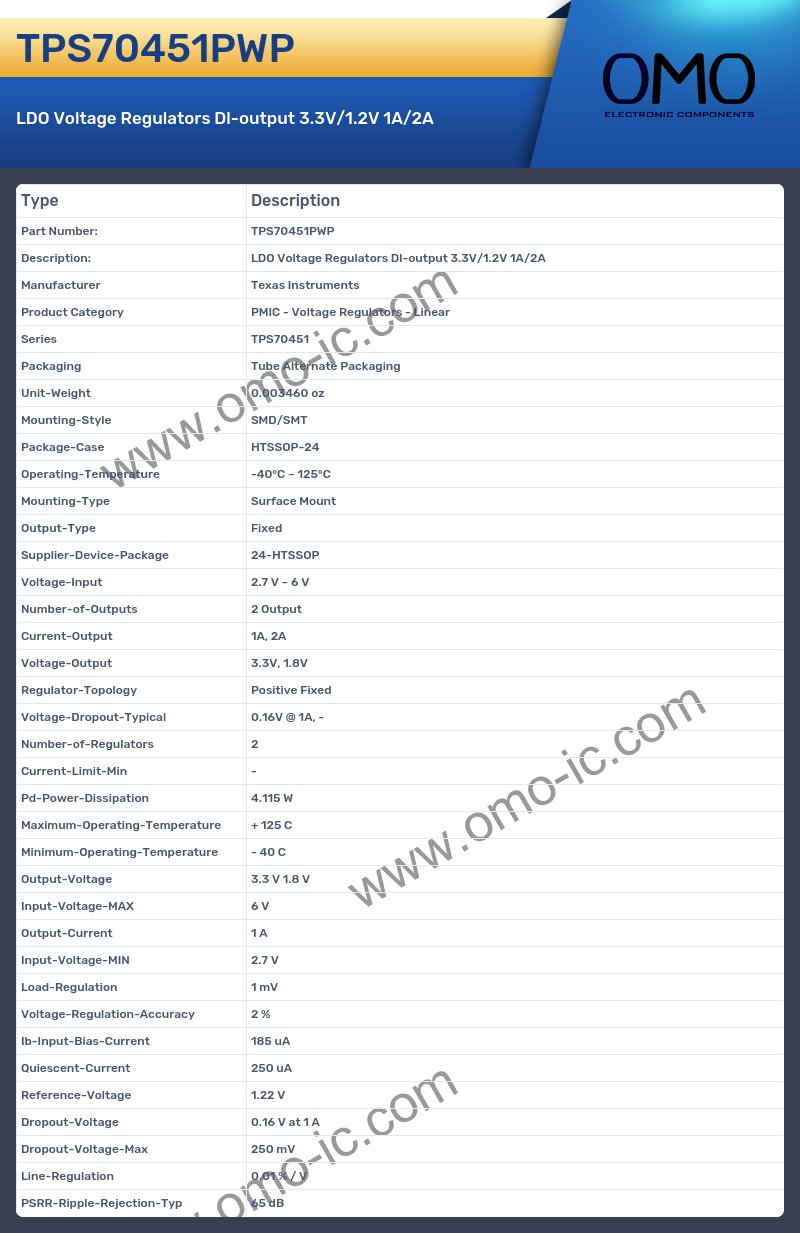

TPS70451PWP Image

TPS70451PWP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS70451
• Packaging Tube Alternate Packaging
• Unit-Weight 0.003460 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-24
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 24-HTSSOP
• Voltage-Input 2.7 V ~ 6 V
• Number-of-Outputs 2 Output
• Current-Output 1A, 2A
• Voltage-Output 3.3V, 1.8V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.16V @ 1A, -
• Number-of-Regulators 2
• Current-Limit-Min -
• Pd-Power-Dissipation 4.115 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V 1.8 V
• Input-Voltage-MAX 6 V
• Output-Current 1 A
• Input-Voltage-MIN 2.7 V
• Load-Regulation 1 mV
• Voltage-Regulation-Accuracy 2 %
• Ib-Input-Bias-Current 185 uA
• Quiescent-Current 250 uA
• Reference-Voltage 1.22 V
• Dropout-Voltage 0.16 V at 1 A
• Dropout-Voltage-Max 250 mV
• Line-Regulation 0.01 % / V
• PSRR-Ripple-Rejection-Typ 65 dB
