TPS75201MPWPREP Overview

Product belongs to the TPS75201M-EP series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002885 oz SMD/SMT Mounting-Style HTSSOP-20 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: 20-HTSSOP 2.7 V ~ 5 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.5 V ~ 5 V Positive Adjustable regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Output voltage: 1.5 V to 5 V Maximum Input Voltage: 5 V Output current: 2 A The product's + 2.5 V is 5.1 V. Load regulation is 1 mV. The voltage regulation accuracy of this product is 2 %. This product is also known as V62/03635-11XE and can be referred to by either part number. Input bias current of 75 uA This product has a 125 uA of 7 mA, making it ideal for low-power applications. Reference voltage is 1.18 V . The 0.21 V at 2 A. The maximum 400 mV at 2 A is 360 mV. This product's 0.1 % / V is 0.01 %/V.

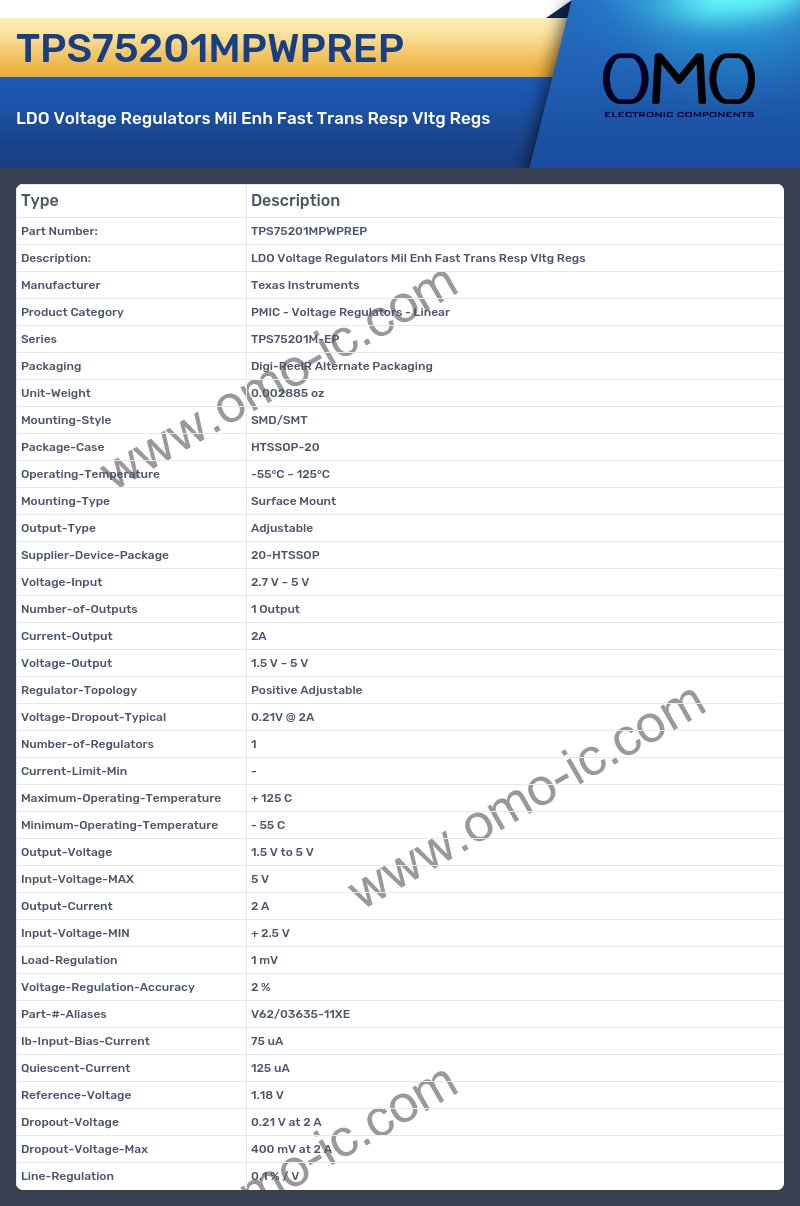

TPS75201MPWPREP Image

TPS75201MPWPREP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS75201M-EP
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002885 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-20
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package 20-HTSSOP
• Voltage-Input 2.7 V ~ 5 V
• Number-of-Outputs 1 Output
• Current-Output 2A
• Voltage-Output 1.5 V ~ 5 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.21V @ 2A
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Output-Voltage 1.5 V to 5 V
• Input-Voltage-MAX 5 V
• Output-Current 2 A
• Input-Voltage-MIN + 2.5 V
• Load-Regulation 1 mV
• Voltage-Regulation-Accuracy 2 %
• Part-#-Aliases V62/03635-11XE
• Ib-Input-Bias-Current 75 uA
• Quiescent-Current 125 uA
• Reference-Voltage 1.18 V
• Dropout-Voltage 0.21 V at 2 A
• Dropout-Voltage-Max 400 mV at 2 A
• Line-Regulation 0.1 % / V
