TPS76901DBVR

TPS76901DBVR Overview

Product belongs to the TPS76901 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000459 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: SOT-23-5 2.7 V ~ 10 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.2 V ~ 5.5 V Positive Adjustable regulator topology The product has 1 of 1. Power-off control: 0.555 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.2 V to 5.5 V Maximum Input Voltage: 10 V Output current: 100 mA The product's + 2.7 V is 5.1 V. Load regulation is 12 mV. The voltage regulation accuracy of this product is 3 %. The TPS76901EVM-127. Input bias current of 17 uA This product has a 28 uA of 7 mA, making it ideal for low-power applications. Reference voltage is 1.224 V . The 0.071 V at 100 mA. The maximum 100 mV at 50 mA/200 mV at 100 mA is 360 mV. This product's 0.04 % / V is 0.01 %/V.

TPS76901DBVR Image

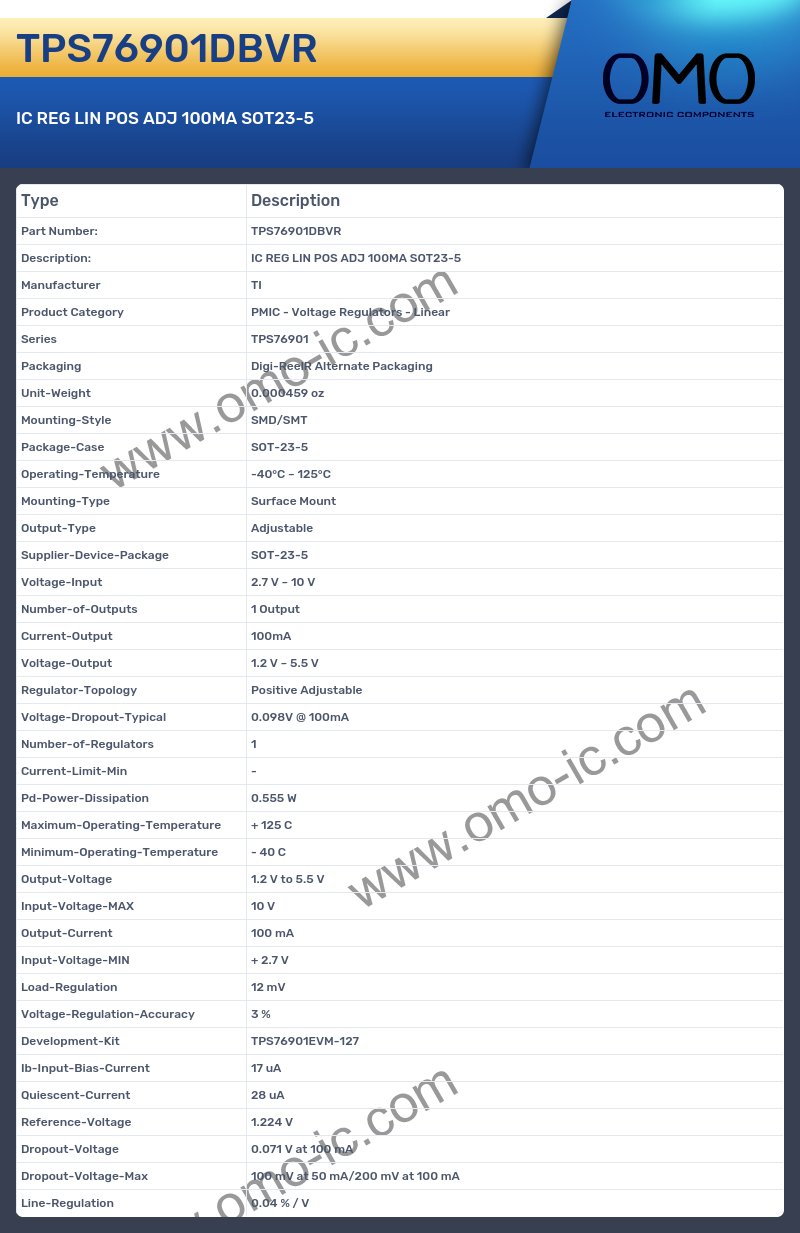

TPS76901DBVR Specifications

• Manufacturer TI
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS76901
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000459 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package SOT-23-5
• Voltage-Input 2.7 V ~ 10 V
• Number-of-Outputs 1 Output
• Current-Output 100mA
• Voltage-Output 1.2 V ~ 5.5 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.098V @ 100mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 0.555 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.2 V to 5.5 V
• Input-Voltage-MAX 10 V
• Output-Current 100 mA
• Input-Voltage-MIN + 2.7 V
• Load-Regulation 12 mV
• Voltage-Regulation-Accuracy 3 %
• Development-Kit TPS76901EVM-127
• Ib-Input-Bias-Current 17 uA
• Quiescent-Current 28 uA
• Reference-Voltage 1.224 V
• Dropout-Voltage 0.071 V at 100 mA
• Dropout-Voltage-Max 100 mV at 50 mA/200 mV at 100 mA
• Line-Regulation 0.04 % / V
