TS3V712ELRTGR

TS3V712ELRTGR Overview

Product belongs to the TS3V712EL series. This product is categorized as Video Switches Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style WQFN-32 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Product function is Video Demultiplexer. Number of channels: 7 Channel Supplier device package: 32-WQFN-EP (3x6) - is 8. Voltage supply source: Analog and digital Single Supply Configuration 1 x 1 Circuit type: 7 x 2:1 9 Ohm maximum on-state resistance Voltage supply range: 3 V ~ 3.6 V, 4.5 V ~ 5.5 V This product has a 200μA of 200μA. The - 1.3 GHz bandwidth Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 3.3 V 5 V supply voltage for reliable performance. Maximum supply voltage of 3.6 V 5.5 V Minimum supply voltage is 3 V 4.5 V Dual Supply supply type Max on-resistance of 9 Ohms Maximum off time: 13 ns Maximum on-time: 13 ns The maximum switch voltage for this product is 3.6 V 5.5 V The 100 mA

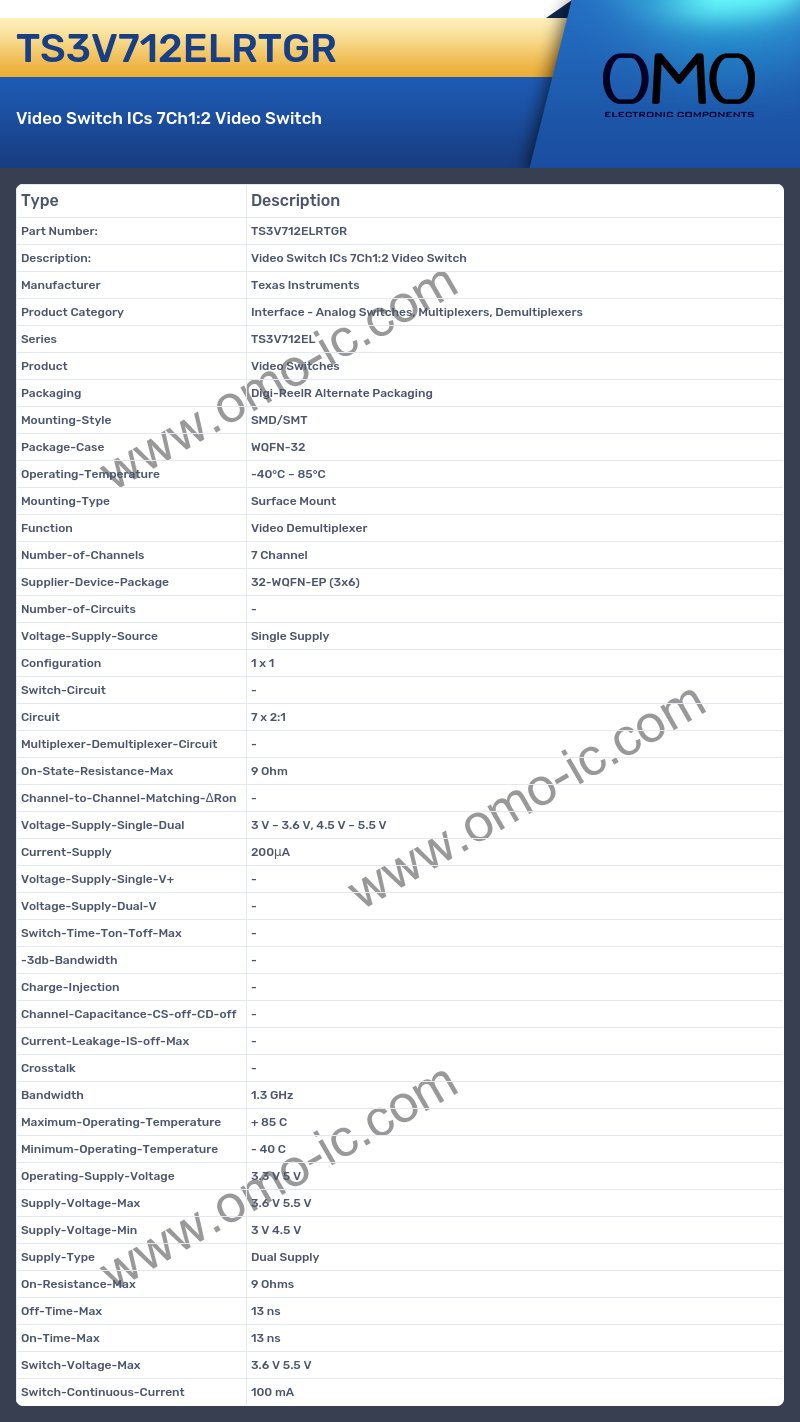

TS3V712ELRTGR Image

TS3V712ELRTGR Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series TS3V712EL
• Product Video Switches
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case WQFN-32
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Function Video Demultiplexer
• Number-of-Channels 7 Channel
• Supplier-Device-Package 32-WQFN-EP (3x6)
• Number-of-Circuits -
• Voltage-Supply-Source Single Supply
• Configuration 1 x 1
• Switch-Circuit -
• Circuit 7 x 2:1
• Multiplexer-Demultiplexer-Circuit -
• On-State-Resistance-Max 9 Ohm
• Channel-to-Channel-Matching-ΔRon -
• Voltage-Supply-Single-Dual 3 V ~ 3.6 V, 4.5 V ~ 5.5 V
• Current-Supply 200μA
• Voltage-Supply-Single-V+ -
• Voltage-Supply-Dual-V -
• Switch-Time-Ton-Toff-Max -
• -3db-Bandwidth -
• Charge-Injection -
• Channel-Capacitance-CS-off-CD-off -
• Current-Leakage-IS-off-Max -
• Crosstalk -
• Bandwidth 1.3 GHz
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3.3 V 5 V
• Supply-Voltage-Max 3.6 V 5.5 V
• Supply-Voltage-Min 3 V 4.5 V
• Supply-Type Dual Supply
• On-Resistance-Max 9 Ohms
• Off-Time-Max 13 ns
• On-Time-Max 13 ns
• Switch-Voltage-Max 3.6 V 5.5 V
• Switch-Continuous-Current 100 mA
