TS555IDT

TS555IDT Overview

Product belongs to the TS555 series. Type: 555 Type, Timer/Oscillator (Single) Digi-ReelR is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 This product's 2.7MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 2 V ~ 16 V Supplier device package: 8-SO This product has a 65μA of 200μA. Power-off control: 715 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Maximum supply voltage of 16 V Minimum supply voltage is 2 V Maximum propagation delay: 100 ns High-Level-Output-Current of 50 mA - 10 mA low-level output current 1 Timer Internal Timers

TS555IDT Image

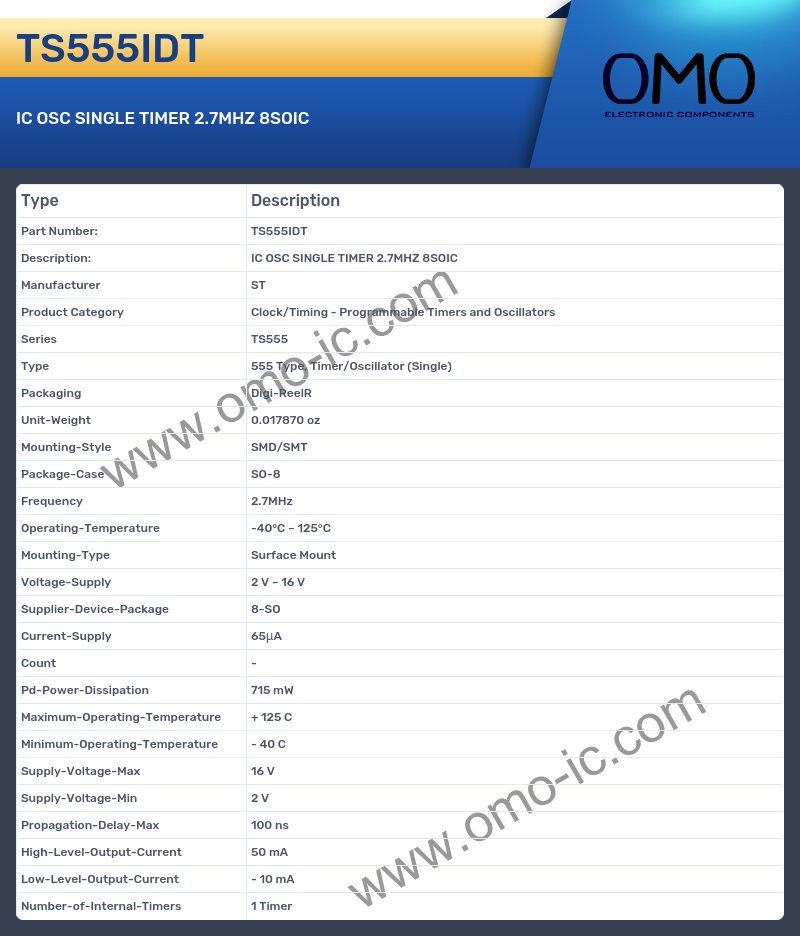

TS555IDT Specifications

• Manufacturer ST
• Product Category Clock/Timing - Programmable Timers and Oscillators
• Series TS555
• Type 555 Type, Timer/Oscillator (Single)
• Packaging Digi-ReelR
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Frequency 2.7MHz
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Voltage-Supply 2 V ~ 16 V
• Supplier-Device-Package 8-SO
• Current-Supply 65μA
• Count -
• Pd-Power-Dissipation 715 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 2 V
• Propagation-Delay-Max 100 ns
• High-Level-Output-Current 50 mA
• Low-Level-Output-Current - 10 mA
• Number-of-Internal-Timers 1 Timer
